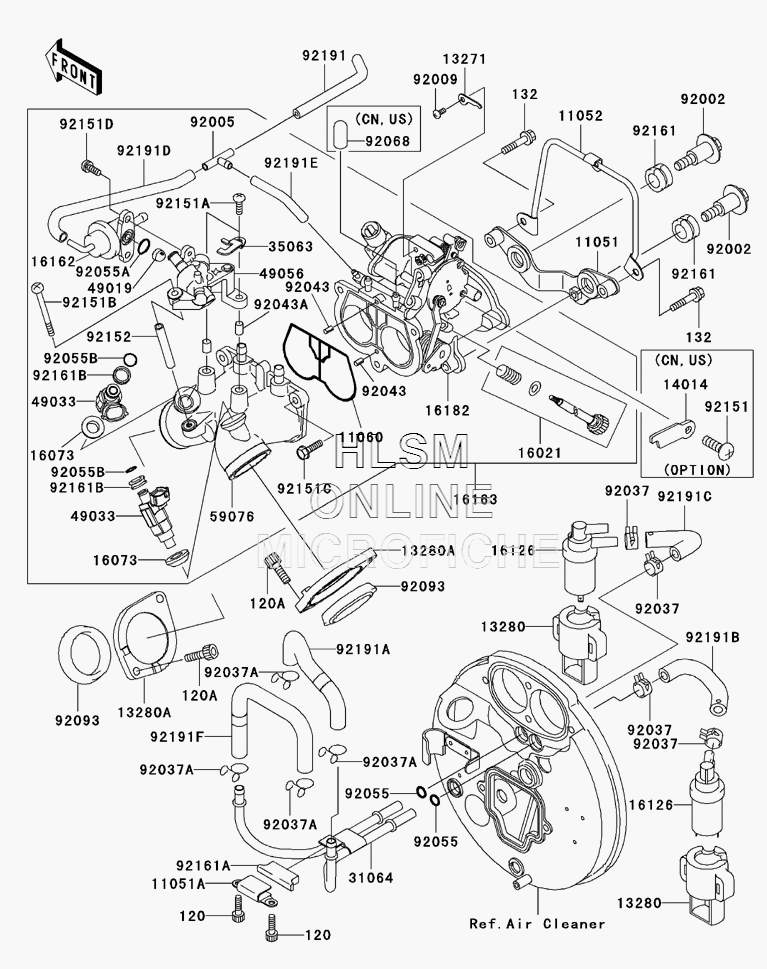

THROTTLE для Kawasaki Vulcan 1500 Drifter - 2001 года выпуска`
-
№АртикулНазвание
-
1105111051-1333 BRACKETBRACKET
-
11051A11051-1345 BRACKETBRACKET
-
1105211052-1067 BRACKET, HIGH TENSHION CORDBRACKET, HIGH TENSHION CORD
-
1106011060-1928 GASKET, THROTTLE BODYGASKET, THROTTLE BODY
-
1327113271-1314 PLATE, STARTER CABLEPLATE, STARTER CABLE
-
1328013280-1139 HOLDERHOLDER
-
13280A13280-1154 HOLDERHOLDER
-
1401414014-1142 PLATE, POSITION, 25KW (EXCEPT CALIF.)PLATE, POSITION, 25KW (EXCEPT CALIF.)
-
1602116021-1227 SCREW, THROTTLE STOPSCREW, THROTTLE STOP
-
1607316073-1119 INSULATORINSULATOR
-
1612616126-1372 VALVEVALVE
-
1616216162-1054 REGULATOR, FUELREGULATOR, FUEL
-
1616316163-1099 THROTTLE, ASSYTHROTTLE, ASSY
-
1618216182-1002 BODY, THROTTLEBODY, THROTTLE
-
3106431064-1227 PIPE, COMPPIPE, COMP
-
3506335063-1148 STAYSTAY
-
4901949019-3707 FILTER, FUEL, STRAINERFILTER, FUEL, STRAINER
-
4903349033-1057 NOZZLE, INJECTIONNOZZLE, INJECTION
-
4905649056-1054 PIPE, INJECTIONPIPE, INJECTION
-
5907659076-1110 MANIFOLD, INTAKEMANIFOLD, INTAKE
-
9200292002-1595 BOLT, M6X14X13.5BOLT, M6X14X13.5
-
9200592005-1366 FITTINGFITTING
-
9200992009-1903 SCREW, 4X6SCREW, 4X6
-
9203792037-1181 CLAMPCLAMP
-
92037A92037-1271 CLAMP, FUEL TUBECLAMP, FUEL TUBE
-
9204392043-1600 PIN, THROTTLE BODYPIN, THROTTLE BODY
-
92043A92043-1601 PIN, DELIVERY PIPEPIN, DELIVERY PIPE
-
9205592055-029 O-RING, 7.8X3.5O-RING, 7.8X3.5
-
92055A92055-1620 O-RING, FUEL REGULATORO-RING, FUEL REGULATOR
-
92055B92055-1622 O-RING, INJECTION NOZZLEO-RING, INJECTION NOZZLE
-
9206892068-006 PLUG, 12X25 (EXCEPT CALIF.)PLUG, 12X25 (EXCEPT CALIF.)
-
9209392093-1484 SEALSEAL
-
9215192151-1528 BOLT, 25KW (EXCEPT CALIF.)BOLT, 25KW (EXCEPT CALIF.)
-
120120S0510 BOLT, SOCKETBOLT, SOCKET
-
120A120Z0620 BOLT, SOCKETBOLT, SOCKET
-
132132J0625 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
92151A92151-1585 BOLT, 5X20BOLT, 5X20
-
92151B92151-1586 BOLT, 5X75BOLT, 5X75
-
92151C92151-1587 BOLT, THROTTLE BODYBOLT, THROTTLE BODY
-
92151D92151-1588 BOLT, 6X12BOLT, 6X12
-
9215292152-1206 COLLAR, DELIVERY PIPECOLLAR, DELIVERY PIPE
-
9216192161-1058 DAMPERDAMPER
-
92161A92161-1062 DAMPERDAMPER
-
92161B92161-1083 DAMPER, INJECTION NOZZLEDAMPER, INJECTION NOZZLE
-
9219192191-1298 TUBE, THROTTLE, BOOSTTUBE, THROTTLE, BOOST
-
92191A92191-1366 TUBE, FRONT PORT (RED)TUBE, FRONT PORT (RED)
-
92191B92191-1367 TUBE, REAR VALVE (RED)TUBE, REAR VALVE (RED)
-
92191C92191-1368 TUBE, FRONT VALVE (BLUE)TUBE, FRONT VALVE (BLUE)
-
92191D92191-1402 TUBE, L=130TUBE, L=130
-
92191E92191-1403 TUBE, L=55TUBE, L=55
-
92191F92191-1564 TUBE, REAR PORT (YELLOW)TUBE, REAR PORT (YELLOW)
