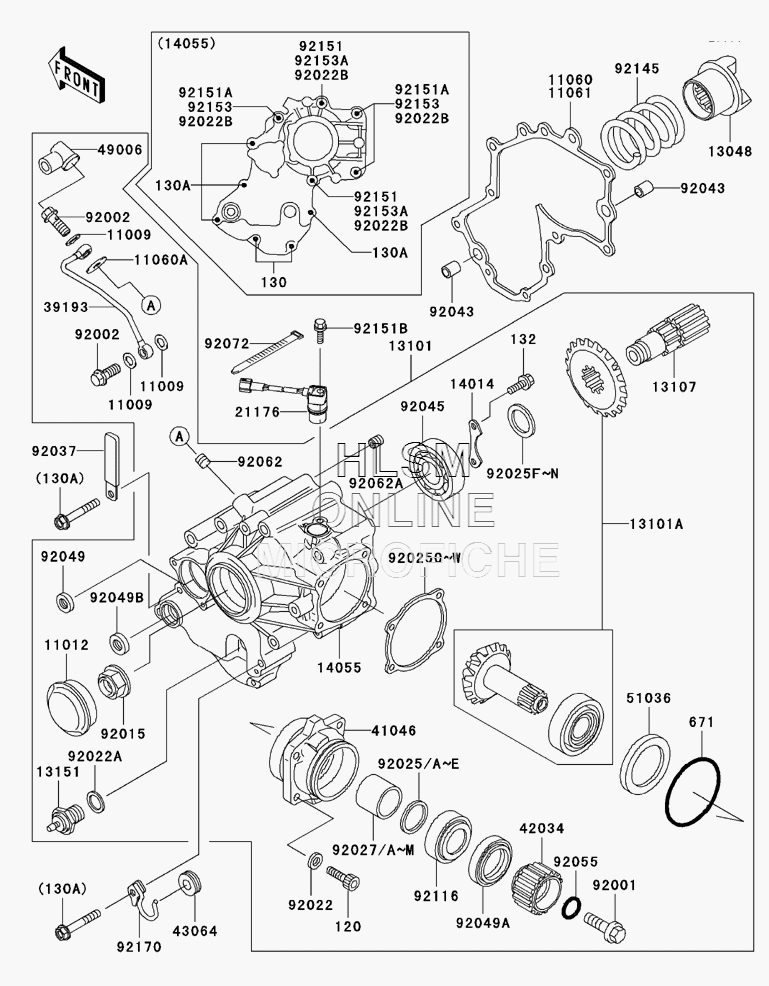

FRONT BEVEL GEAR для Kawasaki Vulcan 1500 Drifter - 2001 года выпуска`
-
№АртикулНазвание
-
1100911009-1344 GASKET, 8.2X14X1.0GASKET, 8.2X14X1.0
-
1101211012-1071 CAPCAP
-
1106011060-1829 GASKET, BEVEL GEAR CASEGASKET, BEVEL GEAR CASE
-
11060A11060-1872 GASKET, OIL PIPE, 8.2X25X1.0GASKET, OIL PIPE, 8.2X25X1.0
-
1304813048-1085 CAM, DAMPERCAM, DAMPER
-
1310113101-0020 GEAR, ASSYGEAR, ASSY
-
13101A13101-5085 GEAR, ASSY, BEVEL, FRONTGEAR, ASSY, BEVEL, FRONT
-
1310713107-1380 SHAFT, BEVEL, FRONTSHAFT, BEVEL, FRONT
-
1315113151-1010 SWITCH, COMPSWITCH, COMP
-
1401414014-1136 PLATE, POSITIONPLATE, POSITION
-
1405514055-1153 CASE, GEAR, FRONT BEVELCASE, GEAR, FRONT BEVEL
-
2117621176-1093 SENSOR, SPEEDOMETERSENSOR, SPEEDOMETER
-
3919339193-1026 PIPE, OILPIPE, OIL
-
4104641046-1099 HOUSING, BEARINGHOUSING, BEARING
-
4203442034-1091 COUPLING, FRONT DRIVENCOUPLING, FRONT DRIVEN
-
4306443064-006 GROMMET, HOSE CLAMPGROMMET, HOSE CLAMP
-
4900649006-1040 BOOT, DUSTBOOT, DUST
-
5103651036-1002 CUPCUP
-
9200192001-1169 BOLT, FLANGED, 12X42BOLT, FLANGED, 12X42
-
9200292002-1429 BOLT, 8X20BOLT, 8X20
-
9201592015-1554 NUT, 24MMNUT, 24MM
-
9202292022-1028 WASHER, 8.5X13X1WASHER, 8.5X13X1
-
92022A92022-1211 WASHERWASHER
-
9202592025-1072 SHIM, 25.2X29.8X1.70SHIM, 25.2X29.8X1.70
-
92025A92025-1073 SHIM, 25.2X29.8X1.72SHIM, 25.2X29.8X1.72
-
92025B92025-1074 SHIM, 25.2X29.8X1.74SHIM, 25.2X29.8X1.74
-
92025C92025-1075 SHIM, 25.2X29.8X1.76SHIM, 25.2X29.8X1.76
-
92025D92025-1076 SHIM, 25.2X29.8X1.78SHIM, 25.2X29.8X1.78
-
92025E92025-1077 SHIM, 25.2X29.8X1.80SHIM, 25.2X29.8X1.80
-
92025F92025-1688 SHIM, 25.3X36X0.15SHIM, 25.3X36X0.15
-
92025G92025-1689 SHIM, 25.3X36X0.50SHIM, 25.3X36X0.50
-
92025H92025-1690 SHIM, 25.3X36X0.60SHIM, 25.3X36X0.60
-
92025I92025-1691 SHIM, 25.3X36X0.70SHIM, 25.3X36X0.70
-
92025J92025-1692 SHIM, 25.3X36X0.80SHIM, 25.3X36X0.80
-
92025K92025-1693 SHIM, 25.3X36X0.90SHIM, 25.3X36X0.90
-
92025L92025-1694 SHIM, 25.3X36X1.00SHIM, 25.3X36X1.00
-
92025M92025-1695 SHIM, 25.3X36X1.10SHIM, 25.3X36X1.10
-
92025N92025-1696 SHIM, 25.3X36X1.20SHIM, 25.3X36X1.20
-
92025O92025-1818 SHIM, T=0.15SHIM, T=0.15
-
92025P92025-1819 SHIM, T=0.50SHIM, T=0.50
-
92025Q92025-1820 SHIM, T=0.60SHIM, T=0.60
-
92025R92025-1821 SHIM, T=0.70SHIM, T=0.70
-
92025S92025-1822 SHIM, T=0.80SHIM, T=0.80
-
92025T92025-1823 SHIM, T=0.90SHIM, T=0.90
-
92025U92025-1824 SHIM, T=1.00SHIM, T=1.00
-
92025V92025-1825 SHIM, T=1.20SHIM, T=1.20
-
92025W92025-1826 SHIM, T=0.10SHIM, T=0.10
-
9202792027-1152 COLLAR, 25.2X29.8X22.8COLLAR, 25.2X29.8X22.8
-
92027A92027-1153 COLLAR, 25.2X29.8X22.9COLLAR, 25.2X29.8X22.9
-
92027B92027-1154 COLLAR, 25.2X29.8X23COLLAR, 25.2X29.8X23
-
92027C92027-1155 COLLAR, 25.2X29.8X23.1COLLAR, 25.2X29.8X23.1
-
92027D92027-1156 COLLAR, 25.2X29.8X23.2COLLAR, 25.2X29.8X23.2
-
92027E92027-1157 COLLAR, 25.2X29.8X23.3COLLAR, 25.2X29.8X23.3
-
92027F92027-1158 COLLAR, 25.2X29.8X23.4COLLAR, 25.2X29.8X23.4
-
92027G92027-1159 COLLAR, 25.2X29.8X23.5COLLAR, 25.2X29.8X23.5
-
92027H92027-1160 COLLAR, 25.2X29.8X23.6COLLAR, 25.2X29.8X23.6
-
92027I92027-1161 COLLAR, 25.2X29.8X23.7COLLAR, 25.2X29.8X23.7
-
92027J92027-1162 COLLAR, 25.2X29.8X23.8COLLAR, 25.2X29.8X23.8
-
92027K92027-1163 COLLAR, 25.2X29.8X23.9COLLAR, 25.2X29.8X23.9
-
92027L92027-1164 COLLAR, 25.2X29.8X24COLLAR, 25.2X29.8X24
-
92027M92027-1165 COLLAR, 25.2X29.8X24.1COLLAR, 25.2X29.8X24.1
-
9203792037-1069 CLAMP, L=60CLAMP, L=60
-
9204392043-1279 PIN, 11.5X14X14PIN, 11.5X14X14
-
9204592045-1165 BEARING, BALL, 6305C2BEARING, BALL, 6305C2
-
9204992049-1017 SEAL, OIL, SD, 8187SEAL, OIL, SD, 8187
-
92049A92049-1038 SEAL, OIL, TC35527SEAL, OIL, TC35527
-
92049B92049-1519 SEAL, OIL, TC13225.5SEAL, OIL, TC13225.5
-
9205592055-1044 O-RING, ID=18.64O-RING, ID=18.64
-
9206292062-1078 NOZZLE, 6X8 (GREEN)NOZZLE, 6X8 (GREEN)
-
92062A92062-1083 NOZZLE, 10X10 (SILVER)NOZZLE, 10X10 (SILVER)
-
9207292072-1195 BAND, L=202BAND, L=202
-
9211692116-1062 BEARING, ROLLER, HI, CAP30205BEARING, ROLLER, HI, CAP30205
-
9214592145-1102 SPRING, CAM DAMPERSPRING, CAM DAMPER
-
9215192151-1444 BOLT, 8X95BOLT, 8X95
-
92151A92151-1445 BOLT, 8X80BOLT, 8X80
-
92151B92151-1755 BOLTBOLT
-
120120S0830 BOLT, SOCKET, 8X30 (BLACK)BOLT, SOCKET, 8X30 (BLACK)
-
130130S0630 BOLT, FLANGEDBOLT, FLANGED
-
130A130S0640 BOLT, FLANGEDBOLT, FLANGED
-
132132G0616 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
671671B2565 O-RING, 65MMO-RING, 65MM
-
9217092170-1732 CLAMPCLAMP
