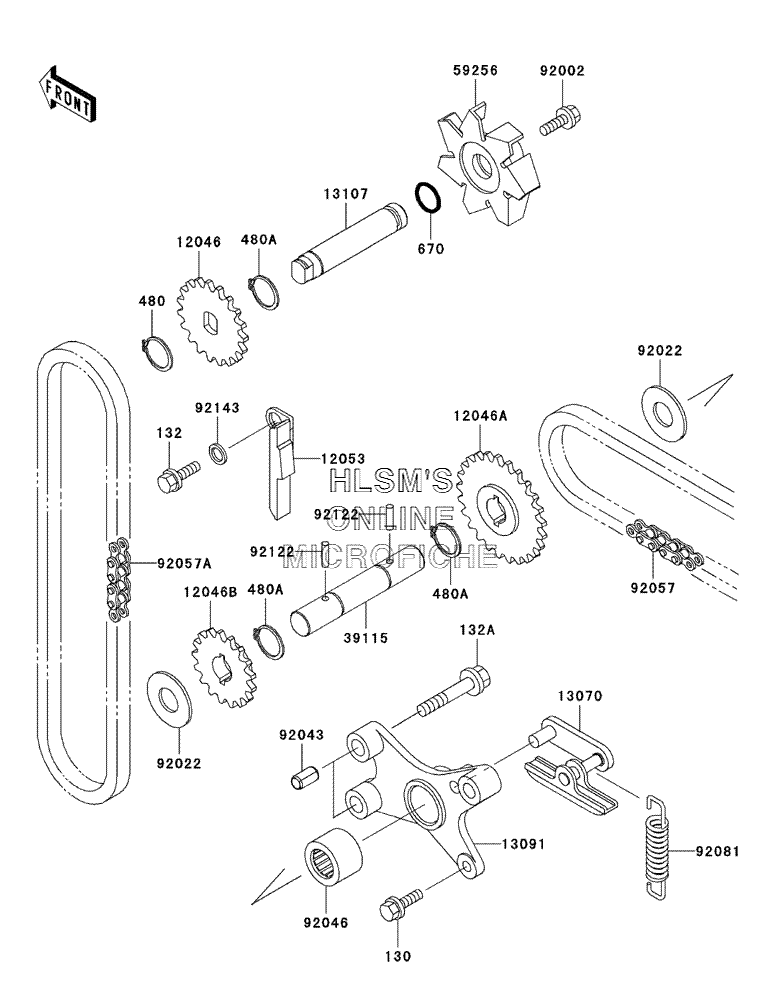

WATER PUMP для Kawasaki Vulcan 1500 Classic Fi - 2001 года выпуска`
-
№АртикулНазвание
-
130130D0514 BOLT, FLANGEDBOLT, FLANGED
-
132132G0612 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132A132G0635 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
480480J1100 CIRCLIP, TYPE, C, 11MMCIRCLIP, TYPE, C, 11MM
-
480A480J1200 CIRCLIP, TYPE, C, 12MMCIRCLIP, TYPE, C, 12MM
-
670670D1509 O-RING, 9MMO-RING, 9MM
-
1204612046-1079 SPROCKET, OIL PUMP (19 TEETH)SPROCKET, OIL PUMP (19 TEETH)
-
12046A12046-1096 SPROCKET, CRANK IDLER (25 TEETH)SPROCKET, CRANK IDLER (25 TEETH)
-
12046B12046-1097 SPROCKET, IDLER (17 TEETH)SPROCKET, IDLER (17 TEETH)
-
1205312053-1227 GUIDE, CHAINGUIDE, CHAIN
-
1307013070-1178 GUIDEGUIDE
-
1309113091-1471 HOLDERHOLDER
-
1310713107-1196 SHAFT, IMPELLERSHAFT, IMPELLER
-
3911539115-1058 SHAFT, IDLERSHAFT, IDLER
-
5925659256-1066 IMPELLERIMPELLER
-
9200292002-1902 BOLT, 6X12BOLT, 6X12
-
9202292022-1852 WASHER, 12X27.5X1.0WASHER, 12X27.5X1.0
-
9204392043-1263 PIN, 6.2X8X14PIN, 6.2X8X14
-
9204692046-1163 BEARING, NEEDLE, HK1212BEARING, NEEDLE, HK1212
-
9205792057-1230 CHAIN, BS25HX46LCHAIN, BS25HX46L
-
92057A92057-1231 CHAIN, BS25HX44LCHAIN, BS25HX44L
-
9208192081-1791 SPRING, IDLER SHAFTSPRING, IDLER SHAFT
-
9212292122-1126 ROLLER, 3X15.8ROLLER, 3X15.8
-
9214392143-1123 COLLARCOLLAR
