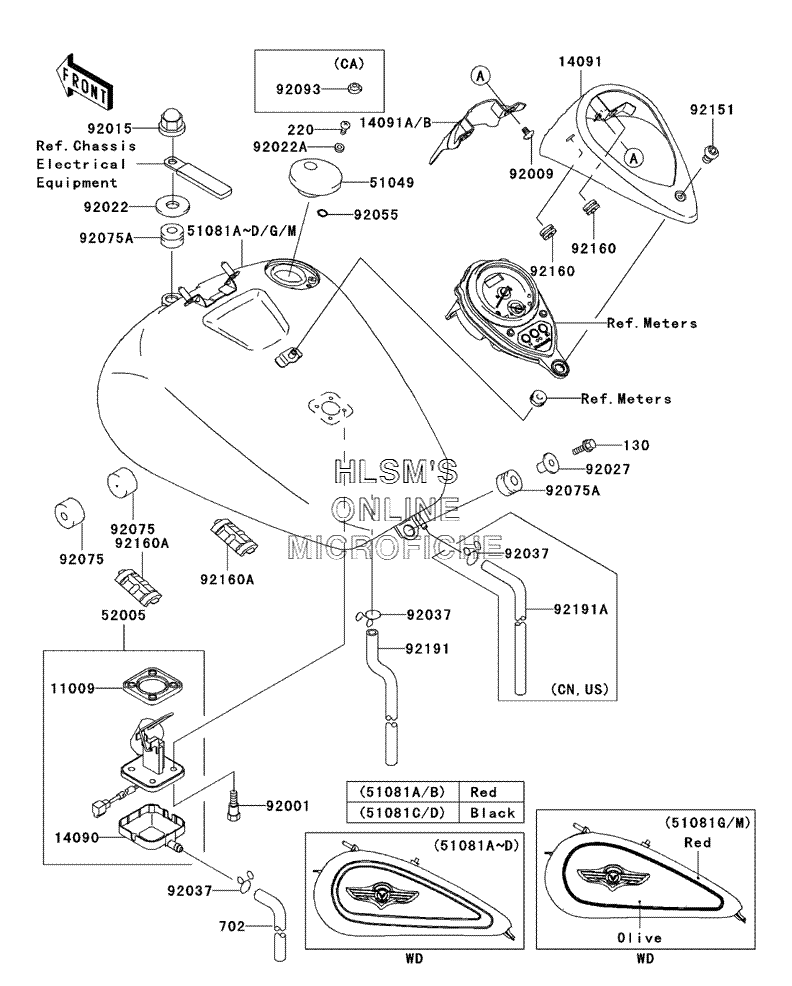

FUEL TANK для Kawasaki Vulcan 1500 Classic Fi - 2001 года выпуска

  • №
    Артикул
    Название
  • 11009
    11009-1656 GASKET, FUEL GAUGE
    GASKET, FUEL GAUGE
  • 14090
    14090-1624 COVER, FUEL GAUGE
    COVER, FUEL GAUGE
  • 14091
    14091-1208 COVER, METER
    COVER, METER
  • 14091A
    14091-1301 COVER, METER, FRONT
    COVER, METER, FRONT
  • 51049
    51049-1126 CAP, TANK, FUEL
    CAP, TANK, FUEL
  • 51082E
    51082-5077-223 TANK, COMP, FUEL (BOULOGNE/BRONZE) (EXCEPT CALIF.)
    TANK, COMP, FUEL (BOULOGNE/BRONZE) (EXCEPT CALIF.)
  • 51082F
    51082-5078-223 TANK, COMP, FUEL (BOULOGNE/BRONZE) (CALIF. ONLY)
    TANK, COMP, FUEL (BOULOGNE/BRONZE) (CALIF. ONLY)
  • 51082G
    51082-5079-224 TANK, COMP, FUEL (RED/SILVER) (EXCEPT CALIF.)
    TANK, COMP, FUEL (RED/SILVER) (EXCEPT CALIF.)
  • 51082H
    51082-5080-224 TANK, COMP, FUEL (RED/SILVER) (CALIF. ONLY)
    TANK, COMP, FUEL (RED/SILVER) (CALIF. ONLY)
  • 52005
    52005-1138 GAUGE, FUEL
    GAUGE, FUEL
  • 92001
    92001-1705 BOLT, FUEL GAUGE
    BOLT, FUEL GAUGE
  • 92009
    92009-1877 SCREW, 6X12
    SCREW, 6X12
  • 92015
    92015-1174 NUT, CAP, 8MM (BLACK)
    NUT, CAP, 8MM (BLACK)
  • 92022
    92022-1345 WASHER, 8X26X2.3
    WASHER, 8X26X2.3
  • 130
    130H0830 BOLT, FLANGED, 8X30
    BOLT, FLANGED, 8X30
  • 220
    220D0510 SCREW, PAN, CROS
    SCREW, PAN, CROS
  • 702
    702A07860 TUBE, RUBBER, 7X10X860
    TUBE, RUBBER, 7X10X860
  • 92022A
    92022-1977 WASHER, 5.1X10X1.0
    WASHER, 5.1X10X1.0
  • 92027
    92027-1780 COLLAR, L=19.3
    COLLAR, L=19.3
  • 92037
    92037-147 CLAMP, TUBE (CALIF. ONLY)
    CLAMP, TUBE (CALIF. ONLY)
  • 92037
    92037-147 CLAMP, TUBE (EXCEPT CALIF.)
    CLAMP, TUBE (EXCEPT CALIF.)
  • 92055
    92055-1023 O-RING
    O-RING
  • 92075
    92075-125 DAMPER, FUEL TANK
    DAMPER, FUEL TANK
  • 92075A
    92075-1736 DAMPER
    DAMPER
  • 92093
    92093-1030 SEAL, FUEL TANK CAP (CALIF. ONLY)
    SEAL, FUEL TANK CAP (CALIF. ONLY)
  • 92151
    92151-1449 BOLT, SOCKET, 6X10
    BOLT, SOCKET, 6X10
  • 92160
    92160-1162 DAMPER
    DAMPER
  • 92160A
    92160-1907 DAMPER, FUEL TANK
    DAMPER, FUEL TANK
  • 92191
    92191-1272 TUBE, DRAIN
    TUBE, DRAIN
  • 92191A
    92191-1529 TUBE, 5X10X650 (EXCEPT CALIF.)
    TUBE, 5X10X650 (EXCEPT CALIF.)
