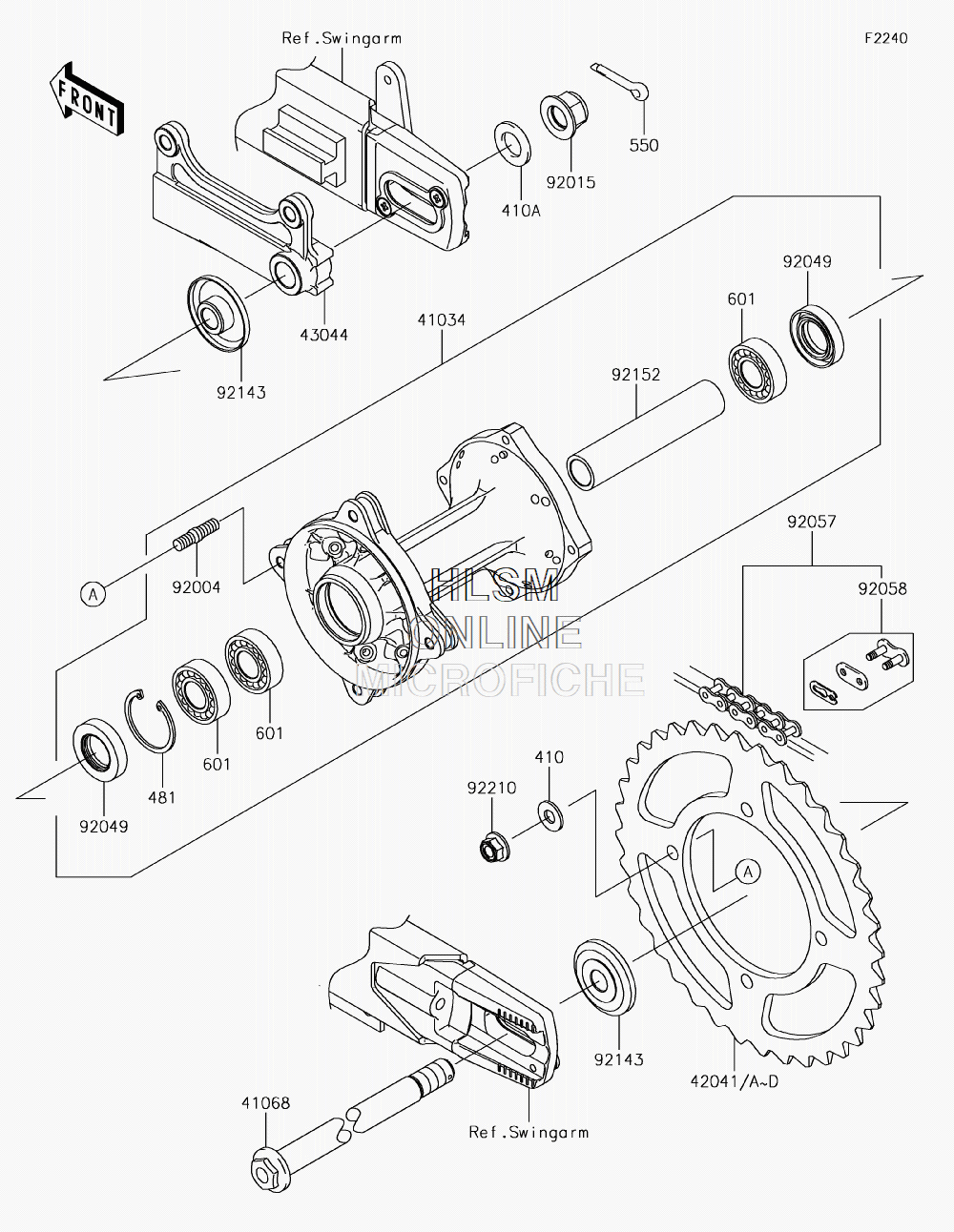

REAR HUB W/CHAIN для Kawasaki KX85 (KX85CKF) - 2019 года выпуска

  • №
    Артикул
    Название
  • 410
    410AA0800 WASHER-PLAIN-SMALL, 8MM
    WASHER-PLAIN-SMALL, 8MM
  • 41034
    41034-0570 DRUM-ASSY, REAR BRAKE
    DRUM-ASSY, REAR BRAKE
  • 41068
    41068-1401 AXLE, REAR
    AXLE, REAR
  • 410A
    410AA1400 WASHER-PLAIN-SMALL, 14MM
    WASHER-PLAIN-SMALL, 14MM
  • 42041
    42041-1207 SPROCKET-HUB, 49T (OPTION)
    SPROCKET-HUB, 49T (OPTION)
  • 42041A
    42041-1227 SPROCKET-HUB, 48T (OPTION)
    SPROCKET-HUB, 48T (OPTION)
  • 42041B
    42041-1228 SPROCKET-HUB, 50T
    SPROCKET-HUB, 50T
  • 42041C
    42041-1229 SPROCKET-HUB, 51T (OPTION)
    SPROCKET-HUB, 51T (OPTION)
  • 42041D
    42041-1245 SPROCKET-HUB, 52T (OPTION)
    SPROCKET-HUB, 52T (OPTION)
  • 43044
    43044-1122 HOLDER-COMP-CALIPER
    HOLDER-COMP-CALIPER
  • 481
    481J3500 CIRCLIP-TYPE-C, 35MM
    CIRCLIP-TYPE-C, 35MM
  • 550
    550AA2520 PIN-COTTER, 2.5X20
    PIN-COTTER, 2.5X20
  • 601
    601B6202UU BEARING-BALL
    BEARING-BALL
  • 92004
    92004-0730 STUD, 8X16
    STUD, 8X16
  • 92015
    92015-1401 NUT, FLANGED, 14MM
    NUT, FLANGED, 14MM
  • 92049
    92049-1469 SEAL-OIL
    SEAL-OIL
  • 92057
    92057-1496 CHAIN, DRIVE, DID420DS2X120L
    CHAIN, DRIVE, DID420DS2X120L
  • 92058
    92058-1086 JOINT-CHAIN, DRIVE
    JOINT-CHAIN, DRIVE
  • 92143
    92143-1938 COLLAR, REAR AXLE, L=12.5
    COLLAR, REAR AXLE, L=12.5
  • 92152
    92152-1090 COLLAR, REAR BRAKE DRUM, L=95
    COLLAR, REAR BRAKE DRUM, L=95
  • 92210
    92210-0493 NUT, FLANGED, LOCK, 8MM
    NUT, FLANGED, LOCK, 8MM
