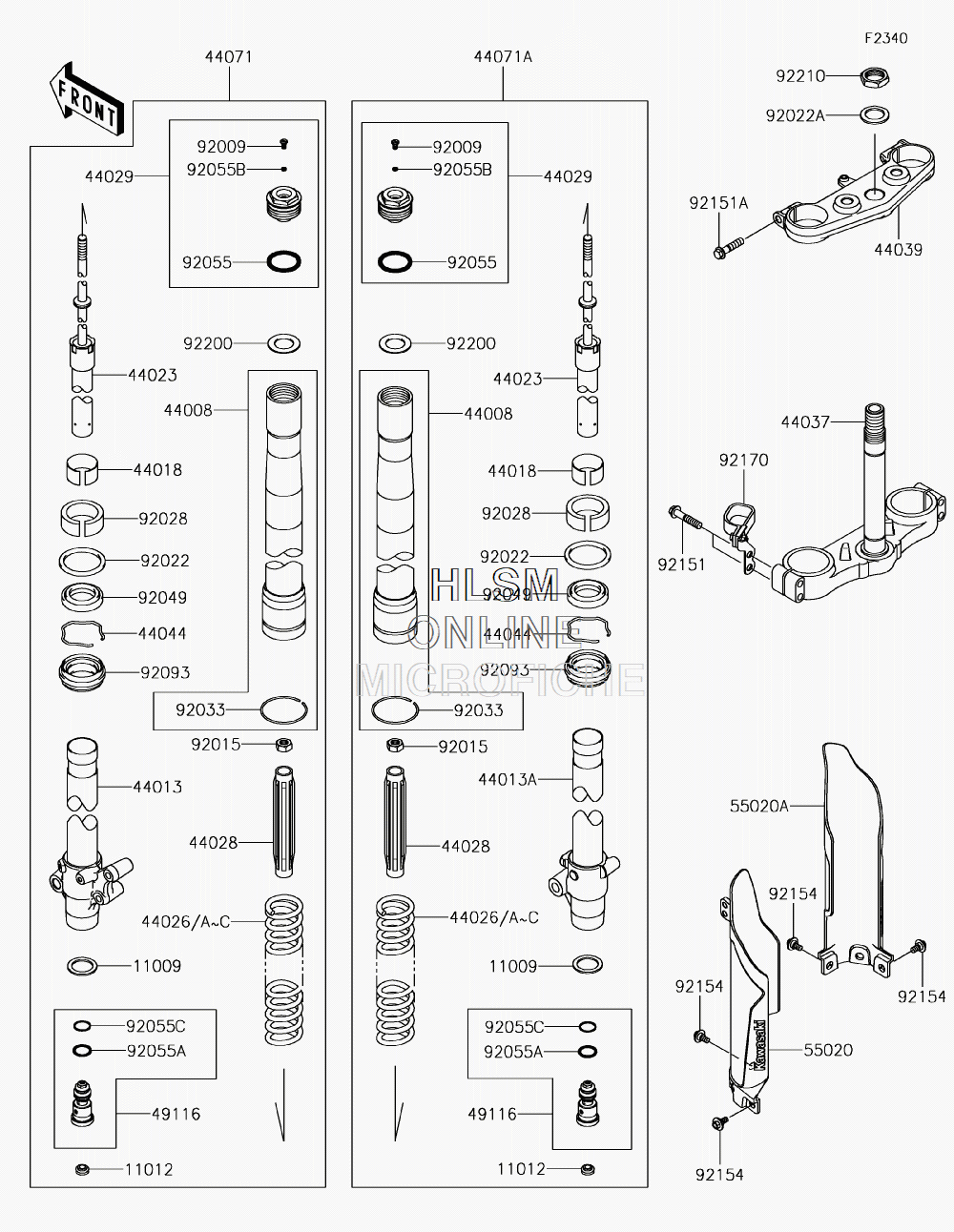

FRONT FORK для Kawasaki KX85 (KX85CKF) - 2019 года выпуска

  • №
    Артикул
    Название
  • 11009
    11009-1592 GASKET, FORK CYLINDER BOLT
    GASKET, FORK CYLINDER BOLT
  • 11012
    11012-1692 CAP
    CAP
  • 44008
    44008-0068-KX PIPE-FORK OUTER, (SILVER)
    PIPE-FORK OUTER, (SILVER)
  • 44013
    44013-0215 PIPE-FORK INNER, LEFT HAND
    PIPE-FORK INNER, LEFT HAND
  • 44013A
    44013-0216 PIPE-FORK INNER, RIGHT HAND
    PIPE-FORK INNER, RIGHT HAND
  • 44018
    44018-1058 PISTON-FORK
    PISTON-FORK
  • 44023
    44023-0113 CYLINDER-SET-FORK
    CYLINDER-SET-FORK
  • 44026
    44026-1633 SPRING-FRONT FORK, K=2.75N/MM (OPTION)
    SPRING-FRONT FORK, K=2.75N/MM (OPTION)
  • 44026A
    44026-1634 SPRING-FRONT FORK, K=2.84N/MM
    SPRING-FRONT FORK, K=2.84N/MM
  • 44026B
    44026-1635 SPRING-FRONT FORK, K=2.94N/MM (OPTION)
    SPRING-FRONT FORK, K=2.94N/MM (OPTION)
  • 44026C
    44026-1671 SPRING-FRONT FORK, K=2.65N/MM (OPTION)
    SPRING-FRONT FORK, K=2.65N/MM (OPTION)
  • 44028
    44028-1090 GUIDE-FORK SPRING
    GUIDE-FORK SPRING
  • 44029
    44029-0024-50Y SEAT-FORK SPRING, (G.B.GREEN)
    SEAT-FORK SPRING, (G.B.GREEN)
  • 44037
    44037-0139-21 HOLDER-FORK UNDER, (F.BLACK)
    HOLDER-FORK UNDER, (F.BLACK)
  • 44039
    44039-0128-21 HOLDER-FORK UPPER, (F.BLACK)
    HOLDER-FORK UPPER, (F.BLACK)
  • 44044
    44044-015 RING-SNAP
    RING-SNAP
  • 44071
    44071-1359-56D DAMPER-ASSY, FORK, LEFT HAND, (SILVER)
    DAMPER-ASSY, FORK, LEFT HAND, (SILVER)
  • 44071A
    44071-1360-56D DAMPER-ASSY, FORK, RIGHT HAND, (SILVER)
    DAMPER-ASSY, FORK, RIGHT HAND, (SILVER)
  • 49116
    49116-0038 VALVE-ASSY, BASE
    VALVE-ASSY, BASE
  • 55020
    55020-0896-6D GUARD, FORK, LEFT HAND, (BLACK)
    GUARD, FORK, LEFT HAND, (BLACK)
  • 55020A
    55020-0897-6D GUARD, FORK, RIGHT HAND, (BLACK)
    GUARD, FORK, RIGHT HAND, (BLACK)
  • 92009
    92009-1568 SCREW
    SCREW
  • 92015
    92015-1839 NUT
    NUT
  • 92022
    92022-1275 WASHER, FRONT FORK
    WASHER, FRONT FORK
  • 92022A
    92022-1873 WASHER, STEERING STEM
    WASHER, STEERING STEM
  • 92028
    92028-1656 BUSHING
    BUSHING
  • 92033
    92033-0737 RING-SNAP
    RING-SNAP
  • 92049
    92049-1394 SEAL-OIL, FORK OUTER TUBE
    SEAL-OIL, FORK OUTER TUBE
  • 92055
    92055-1123 RING-O
    RING-O
  • 92055A
    92055-1156 RING-O
    RING-O
  • 92055B
    92055-1441 RING-O, 2.8X6.6X1.9
    RING-O, 2.8X6.6X1.9
  • 92055C
    92055-1502 RING-O, FORK VALVE
    RING-O, FORK VALVE
  • 92093
    92093-1426 SEAL, FORK OUTER TUBE
    SEAL, FORK OUTER TUBE
  • 92151
    92151-1877 BOLT, FLANGED, 8X40
    BOLT, FLANGED, 8X40
  • 92151A
    92151-1878 BOLT, FLANGED, 8X35
    BOLT, FLANGED, 8X35
  • 92154
    92154-0546 BOLT, FLANGED, 6X9
    BOLT, FLANGED, 6X9
  • 92170
    92170-1810 CLAMP
    CLAMP
  • 92200
    92200-1655 WASHER
    WASHER
  • 92210
    92210-1521 NUT, STEERING STEM, 22MM
    NUT, STEERING STEM, 22MM
