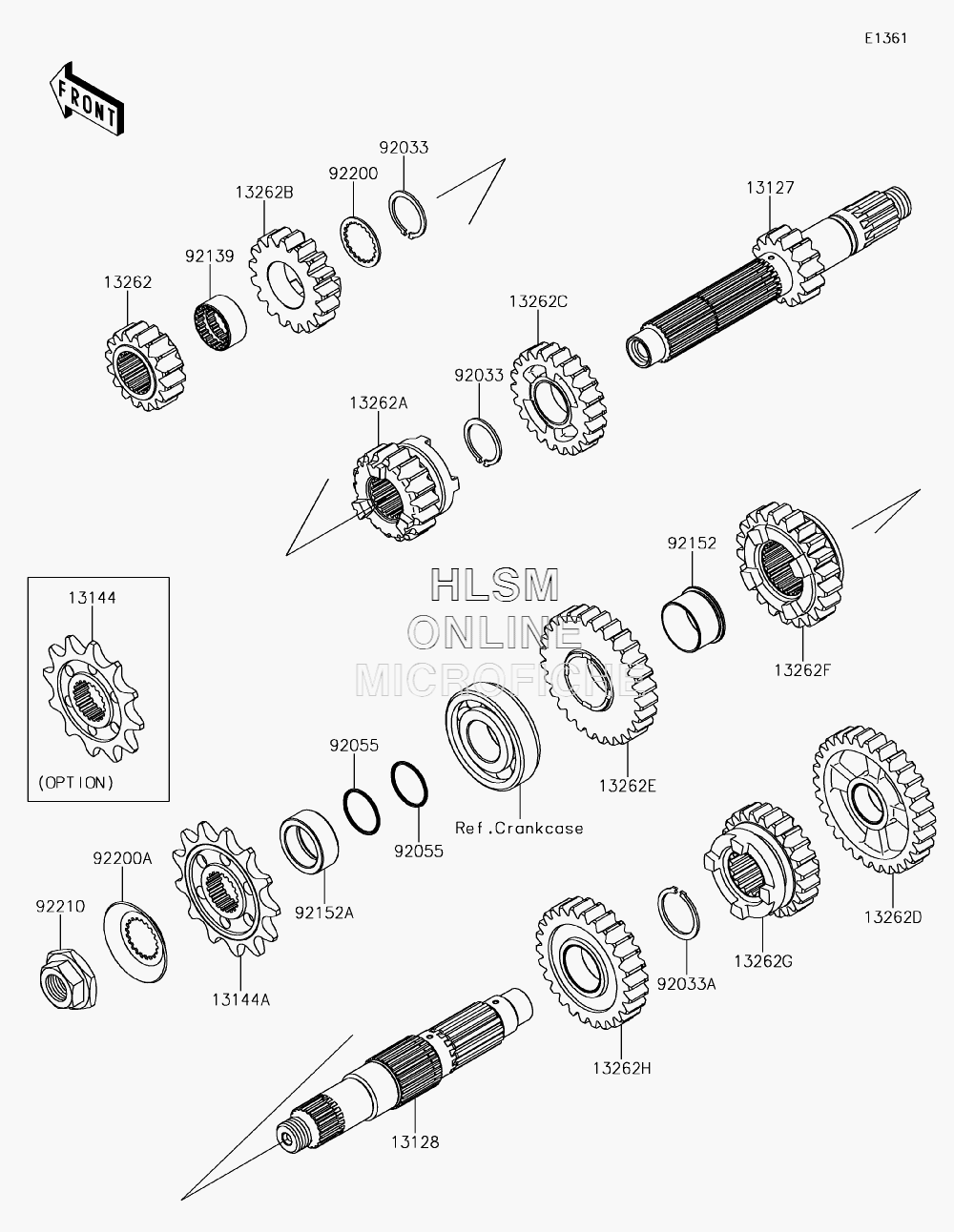

TRANSMISSION для Kawasaki KX250F (KX252AKF) - 2019 года выпуска

  • №
    Артикул
    Название
  • 13127
    13127-0683 SHAFT-TRANSMISSION INPUT, 14T
    SHAFT-TRANSMISSION INPUT, 14T
  • 13128
    13128-0703 SHAFT-TRANSMISSION OUTPUT
    SHAFT-TRANSMISSION OUTPUT
  • 13144
    13144-0036 SPROCKET-OUTPUT, 12T (OPTION)
    SPROCKET-OUTPUT, 12T (OPTION)
  • 13144A
    13144-0064 SPROCKET-OUTPUT, 13T
    SPROCKET-OUTPUT, 13T
  • 13262
    13262-0839 GEAR, INPUT 2ND, 16T
    GEAR, INPUT 2ND, 16T
  • 13262A
    13262-0930 GEAR, INPUT 3RD, 18T
    GEAR, INPUT 3RD, 18T
  • 13262B
    13262-0931 GEAR, INPUT 4TH, 17T
    GEAR, INPUT 4TH, 17T
  • 13262C
    13262-0932 GEAR, INPUT 5TH, 22T
    GEAR, INPUT 5TH, 22T
  • 13262D
    13262-0933 GEAR, OUTPUT LOW, 30T
    GEAR, OUTPUT LOW, 30T
  • 13262E
    13262-0934 GEAR, OUTPUT 2ND, 28T
    GEAR, OUTPUT 2ND, 28T
  • 13262F
    13262-0936 GEAR, OUTPUT 4TH, 21T
    GEAR, OUTPUT 4TH, 21T
  • 13262G
    13262-0937 GEAR, OUTPUT 5TH, 23T
    GEAR, OUTPUT 5TH, 23T
  • 13262H
    13262-1108 GEAR, OUTPUT 3RD, 26T
    GEAR, OUTPUT 3RD, 26T
  • 92033
    92033-0057 RING-SNAP
    RING-SNAP
  • 92033A
    92033-1270 RING-SNAP
    RING-SNAP
  • 92055
    92055-055 RING-O, 19.5X1.5
    RING-O, 19.5X1.5
  • 92139
    92139-0241 BUSHING
    BUSHING
  • 92152
    92152-1606 COLLAR
    COLLAR
  • 92152A
    92152-2289 COLLAR, 22X30X11.4
    COLLAR, 22X30X11.4
  • 92200
    92200-0442 WASHER, 22X26.6X1
    WASHER, 22X26.6X1
  • 92200A
    92200-0723 WASHER, 20X46
    WASHER, 20X46
  • 92210
    92210-0721 NUT, 16MM
    NUT, 16MM
