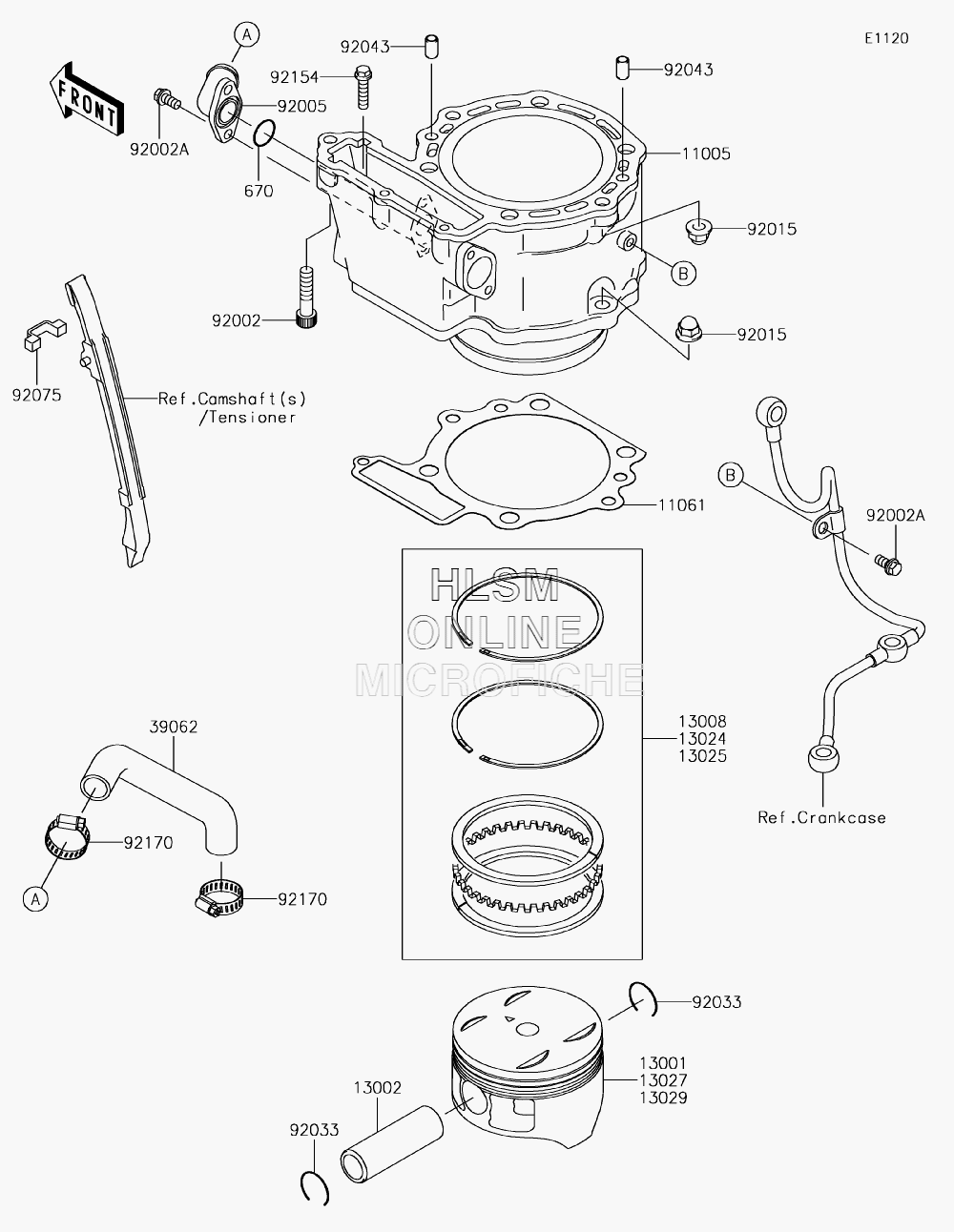

CYLINDER - PISTON(S) для Kawasaki KLR650 (KL650EJF) - 2018 года выпуска
-
№АртикулНазвание
-
1100511005-0584 CYLINDER-ENGINECYLINDER-ENGINE
-
1106111061-0428 GASKET, CYLINDER BASEGASKET, CYLINDER BASE
-
1300113001-0723 PISTON-ENGINEPISTON-ENGINE
-
1300213002-0707 PIN-PISTONPIN-PISTON
-
1300813008-0554 RING-SET-PISTONRING-SET-PISTON
-
1302413024-0552 RING-SET-PISTON LL, O/S 1.00RING-SET-PISTON LL, O/S 1.00
-
1302513025-0055 RING-SET-PISTON L, O/S 0.50RING-SET-PISTON L, O/S 0.50
-
1302713027-0055 PISTON-ENGINE LL, O/S 1.00PISTON-ENGINE LL, O/S 1.00
-
1302913029-0707 PISTON-ENGINE L, O/S 0.50PISTON-ENGINE L, O/S 0.50
-
3906239062-0150 HOSE-COOLING, W/P-CYLINDERHOSE-COOLING, W/P-CYLINDER
-
670670B2018 O RING, 18MMO RING, 18MM
-
9200292002-1409 BOLT, SOCKET, 8X35BOLT, SOCKET, 8X35
-
92002A92002-1569 BOLT, 6X12BOLT, 6X12
-
9200592005-0784 FITTINGFITTING
-
9201592015-1982 NUT, CAP, 8MMNUT, CAP, 8MM
-
9203392033-1226 RING-SNAPRING-SNAP
-
9204392043-1263 PIN, 6.2X8X14PIN, 6.2X8X14
-
9207592075-1968 DAMPERDAMPER
-
9215492154-1212 BOLT, FLANGED, 6X25BOLT, FLANGED, 6X25
-
9217092170-1033 CLAMP, COOLING HOSECLAMP, COOLING HOSE
