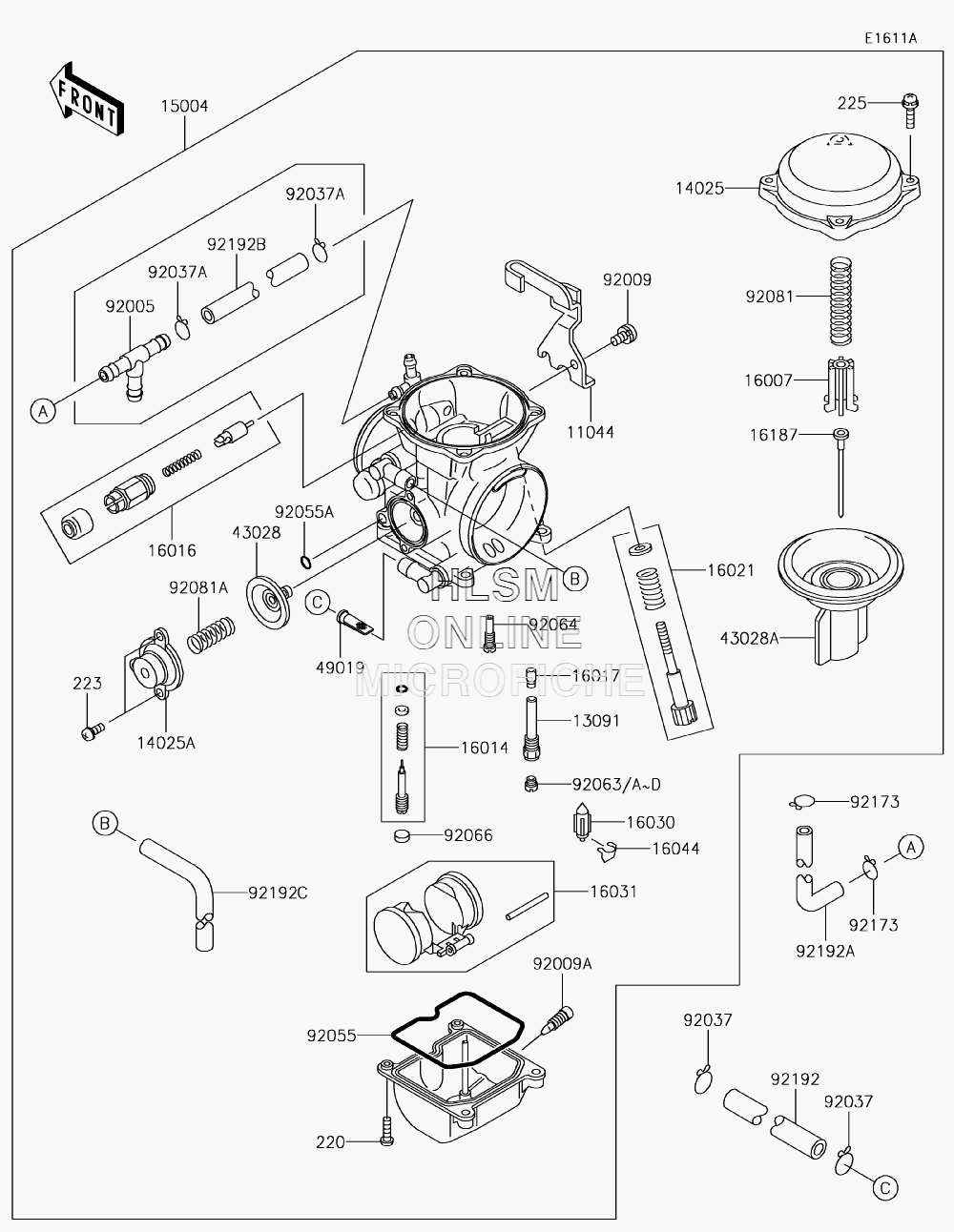

CARBURETOR (CALIF. ONLY) для Kawasaki KLR650 (KL650EJF) - 2018 года выпуска

  • №
    Артикул
    Название
  • 11044
    11044-1353 BRACKET, THROTTLE CABLE
    BRACKET, THROTTLE CABLE
  • 13091
    13091-1425 HOLDER, NEEDLE JET
    HOLDER, NEEDLE JET
  • 14025
    14025-1890 COVER, MIXING CHAMBER
    COVER, MIXING CHAMBER
  • 14025A
    14025-1903 COVER, AIR CUT VALVE
    COVER, AIR CUT VALVE
  • 15004
    15004-0072 CARBURETOR-ASSY, CVK40
    CARBURETOR-ASSY, CVK40
  • 16007
    16007-1113 SEAT-SPRING, DIAPHRAGM VALVE
    SEAT-SPRING, DIAPHRAGM VALVE
  • 16014
    16014-1083 SCREW-PILOT AIR
    SCREW-PILOT AIR
  • 16016
    16016-1087 PLUNGER
    PLUNGER
  • 16017
    16017-0055 JET-NEEDLE, #6
    JET-NEEDLE, #6
  • 16021
    16021-1201 SCREW-THROTTLE STOP
    SCREW-THROTTLE STOP
  • 16030
    16030-1057 VALVE-FLOAT
    VALVE-FLOAT
  • 16031
    16031-1077 FLOAT
    FLOAT
  • 16044
    16044-007 CLAMP, FLOAT VALVE
    CLAMP, FLOAT VALVE
  • 16187
    16187-0275 NEEDLE-JET, N6NJ
    NEEDLE-JET, N6NJ
  • 43028
    43028-0016 DIAPHRAGM, 5.9MM, AIR CUT VALVE
    DIAPHRAGM, 5.9MM, AIR CUT VALVE
  • 43028A
    43028-1062 DIAPHRAGM, VALVE
    DIAPHRAGM, VALVE
  • 49019
    49019-1097 FILTER-FUEL
    FILTER-FUEL
  • 92005
    92005-1112 FITTING, FUEL, T-TYPE
    FITTING, FUEL, T-TYPE
  • 92009
    92009-1365 SCREW, 5X10
    SCREW, 5X10
  • 92009A
    92009-1551 SCREW, DRAIN, 6X0.75
    SCREW, DRAIN, 6X0.75
  • 92037
    92037-1271 CLAMP, 12.5MM
    CLAMP, 12.5MM
  • 92037A
    92037-1477 CLAMP, TUBE
    CLAMP, TUBE
  • 92055
    92055-1222 RING-O, FLOAT CHAMBER
    RING-O, FLOAT CHAMBER
  • 92055A
    92055-1245 RING-O
    RING-O
  • 92063
    92063-1013 JET-MAIN, #140 (OPTION)
    JET-MAIN, #140 (OPTION)
  • 92063A
    92063-1016 JET-MAIN, #142 (OPTION)
    JET-MAIN, #142 (OPTION)
  • 92063B
    92063-1017 JET-MAIN, #145
    JET-MAIN, #145
  • 92063C
    92063-1324 JET-MAIN, #148 (OPTION)
    JET-MAIN, #148 (OPTION)
  • 92063D
    92063-1330 JET-MAIN, #150 (OPTION)
    JET-MAIN, #150 (OPTION)
  • 92064
    92064-1108 JET-PILOT, #40
    JET-PILOT, #40
  • 92066
    92066-1051 PLUG, PILOT AIR SCREW, 6.9X2
    PLUG, PILOT AIR SCREW, 6.9X2
  • 92081
    92081-1718 SPRING, DIAPHRAGM VALVE
    SPRING, DIAPHRAGM VALVE
  • 92081A
    92081-1719 SPRING, AIR CUT VALVE
    SPRING, AIR CUT VALVE
  • 92173
    92173-1190 CLAMP
    CLAMP
  • 92192
    92192-0453 TUBE, FUEL, 6.2X13.2X170
    TUBE, FUEL, 6.2X13.2X170
  • 92192A
    92192-0480 TUBE, 5X9X40 & 20
    TUBE, 5X9X40 & 20
  • 92192B
    92192-0588 TUBE, L=70
    TUBE, L=70
  • 92192C
    92192-0589 TUBE, L=360
    TUBE, L=360
  • 220
    220AA0414 SCREW-PAN-CROS, 4X14
    SCREW-PAN-CROS, 4X14
  • 223
    223C0408 SCREW-PAN-WS-CROS, 4X8
    SCREW-PAN-WS-CROS, 4X8
  • 225
    225AB0418 SCREW-PAN-WSP-CROS, 4X18
    SCREW-PAN-WSP-CROS, 4X18
