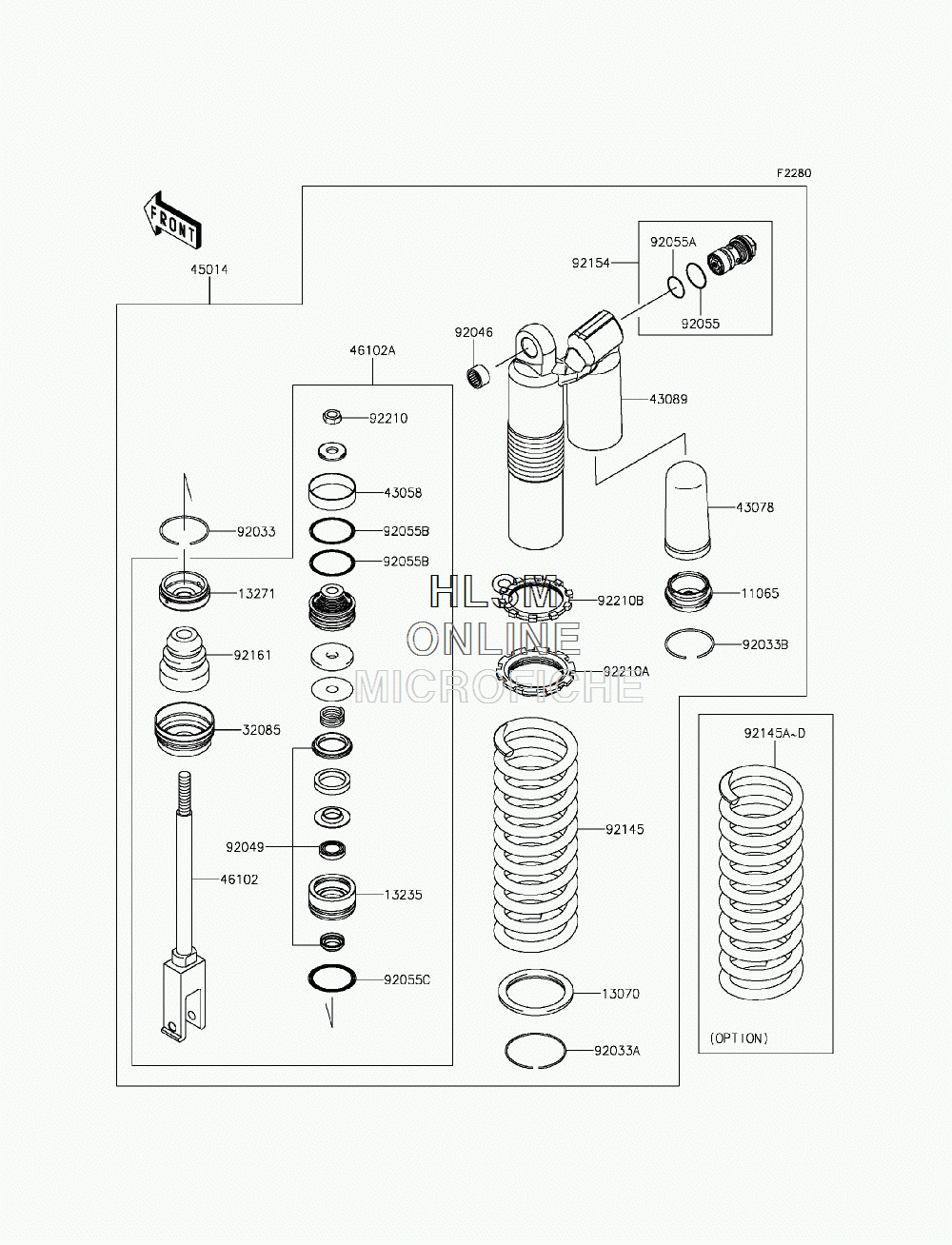

SUSPENSION - SHOCK ABSORBER для Kawasaki KX450F (KX450HGF) - 2016 года выпуска

  • №
    Артикул
    Название
  • 11065
    11065-0340 CAP,CHAMBER
    CAP,CHAMBER
  • 13070
    13070-0057 GUIDE,SPRING SEAT
    GUIDE,SPRING SEAT
  • 13235
    13235-0012 GUIDE-COMP,ROD
    GUIDE-COMP,ROD
  • 13271
    13271-0858 PLATE,END
    PLATE,END
  • 32085
    32085-0077 STOPPER,SPRING SEAT
    STOPPER,SPRING SEAT
  • 43058
    43058-0012 RING,PISTON
    RING,PISTON
  • 43078
    43078-0030 RESERVOIR
    RESERVOIR
  • 43089
    43089-0032 CYLINDER-SHOCKABSORBER
    CYLINDER-SHOCKABSORBER
  • 45014
    45014-0516-52C SHOCKABSORBER,SPG (GREEN+AJ GREEN) (FOR 777)
    SHOCKABSORBER,SPG (GREEN+AJ GREEN) (FOR 777)
  • 46102
    46102-0610 ROD,PISTON
    ROD,PISTON
  • 46102A
    46102-0612 ROD,PISTON COMP
    ROD,PISTON COMP
  • 92033
    92033-0040 RING-SNAP
    RING-SNAP
  • 92033A
    92033-0042 RING-SNAP
    RING-SNAP
  • 92033B
    92033-0076 RING-SNAP
    RING-SNAP
  • 92046
    92046-1301 BEARING-NEEDLE,7E-HVS16X22X12
    BEARING-NEEDLE,7E-HVS16X22X12
  • 92049
    92049-0151 SEAL-OIL
    SEAL-OIL
  • 92055
    92055-0098 RING-O,PLUG BOLT
    RING-O,PLUG BOLT
  • 92055A
    92055-0099 RING-O,PLUG BOLT
    RING-O,PLUG BOLT
  • 92055B
    92055-0100 RING-O
    RING-O
  • 92055C
    92055-0101 RING-O
    RING-O
  • 92145
    92145-0321-710 SPRING, REAR SHOCK,K=52N/MM,(GREEN) (FOR 777)
    SPRING, REAR SHOCK,K=52N/MM,(GREEN) (FOR 777)
  • 92145A
    92145-0465-710 SPRING, REAR SHOCK,K=49N/MM,(GREEN) (OPTION) (FOR 777)
    SPRING, REAR SHOCK,K=49N/MM,(GREEN) (OPTION) (FOR 777)
  • 92145B
    92145-0887-710 SPRING, REAR SHOCK,K=53N/MM,(GREEN) (OPTION) (FOR 777)
    SPRING, REAR SHOCK,K=53N/MM,(GREEN) (OPTION) (FOR 777)
  • 92145C
    92145-0888-710 SPRING, REAR SHOCK,K=51N/MM,(GREEN) (OPTION) (FOR 777)
    SPRING, REAR SHOCK,K=51N/MM,(GREEN) (OPTION) (FOR 777)
  • 92145D
    92145-0889-710 SPRING, REAR SHOCK,K=55N/MM,(GREEN) (OPTION) (FOR 777)
    SPRING, REAR SHOCK,K=55N/MM,(GREEN) (OPTION) (FOR 777)
  • 92154
    92154-1906 BOLT,PLUG
    BOLT,PLUG
  • 92161
    92161-0329 DAMPER,STOPPER
    DAMPER,STOPPER
  • 92210
    92210-0270 NUT,PISTON
    NUT,PISTON
  • 92210A
    92210-0814 NUT,SPRING ADJUSTER
    NUT,SPRING ADJUSTER
  • 92210B
    92210-0815 NUT,SPRING ADJUST NUT
    NUT,SPRING ADJUST NUT
