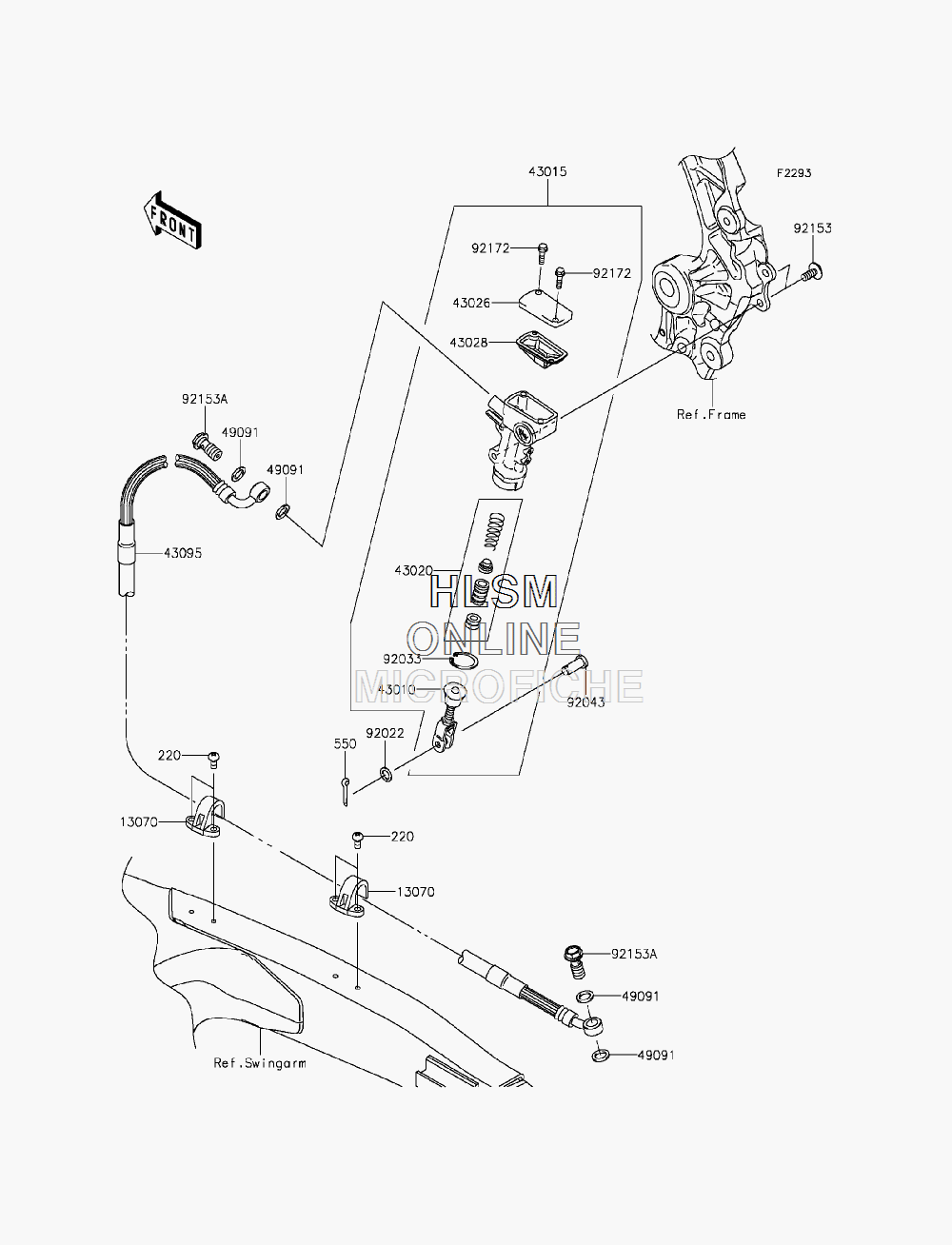

BRAKE - MASTER CYLINDER - REAR для Kawasaki KX450F (KX450HGF) - 2016 года выпуска`
-
№АртикулНазвание
-
220220AA0510 SCREW-PAN-CROS,5X10SCREW-PAN-CROS,5X10
-
550550AA2015 PIN-COTTER,2.0X15PIN-COTTER,2.0X15
-
1307013070-0826 GUIDE,BRAKE HOSEGUIDE,BRAKE HOSE
-
4301043010-1087 ROD-ASSY-BRAKEROD-ASSY-BRAKE
-
4301543015-0168 CYLINDER-ASSY-MASTER, REARCYLINDER-ASSY-MASTER, REAR
-
4302043020-1094 PISTON-COMP-BRAKEPISTON-COMP-BRAKE
-
4302643026-0023 CAP-BRAKECAP-BRAKE
-
4302843028-1092 DIAPHRAGMDIAPHRAGM
-
4309543095-0617 HOSE-BRAKE,L=555HOSE-BRAKE,L=555
-
4909149091-0001 WASHER-SEAL,10.1X14.5X1.5WASHER-SEAL,10.1X14.5X1.5
-
9202292022-1028 WASHER,8.5X13X1WASHER,8.5X13X1
-
9203392033-0079 RING-SNAP,20.9X24.6X1.2RING-SNAP,20.9X24.6X1.2
-
9204392043-0004 PINPIN
-
9215392153-1021 BOLT,SOCKET,6X14BOLT,SOCKET,6X14
-
92153A92153-1419 BOLT,OIL,L=23BOLT,OIL,L=23
-
9217292172-1064 SCREWSCREW
