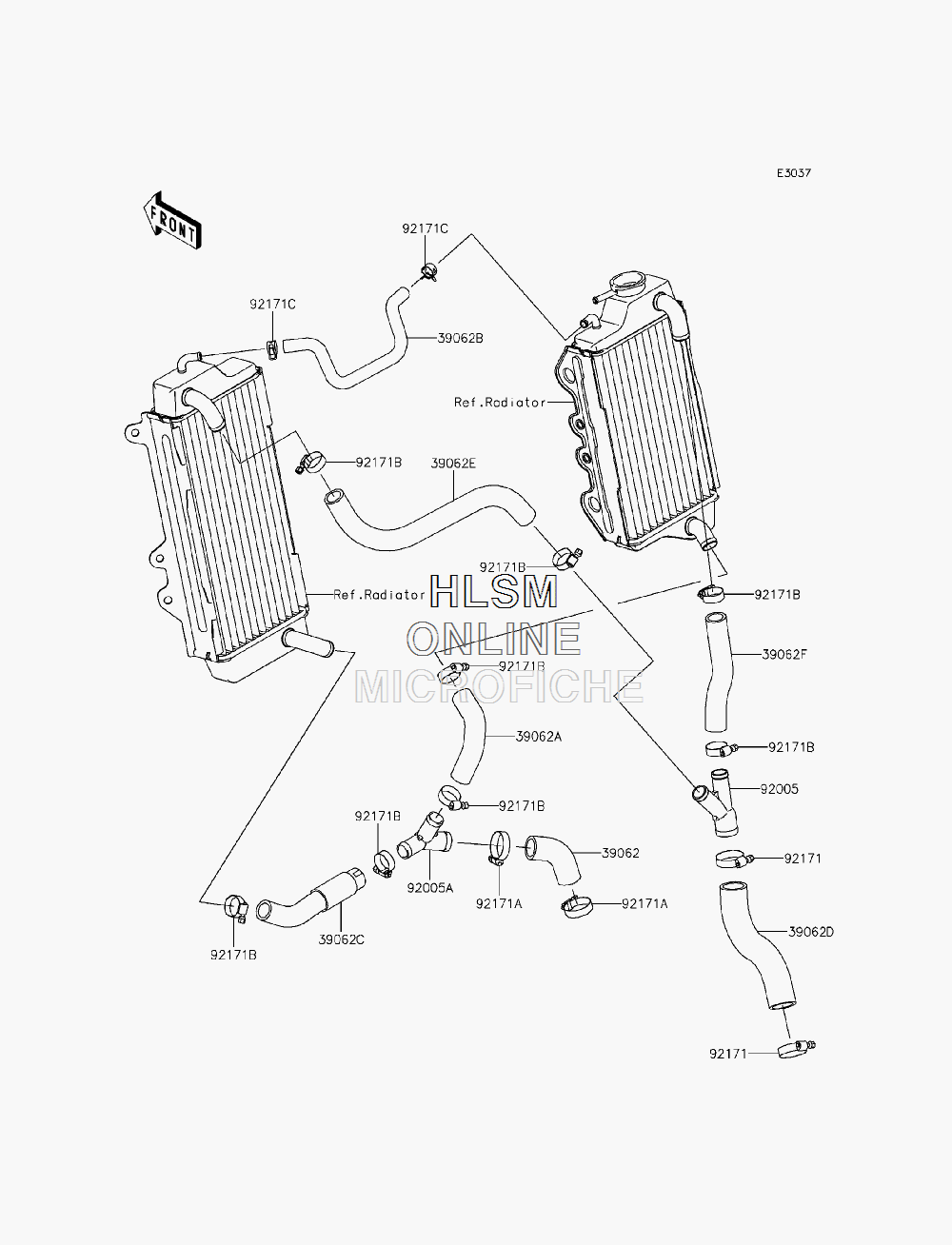

WATER PIPE для Kawasaki KX450F (KX450FFF) - 2015 года выпуска

  • №
    Артикул
    Название
  • 39062
    39062-0088 HOSE-COOLING,W/P-FIT.
    HOSE-COOLING,W/P-FIT.
  • 39062A
    39062-0301 HOSE-COOLING,RAD.RIGHT HAND LOW-FIT.
    HOSE-COOLING,RAD.RIGHT HAND LOW-FIT.
  • 39062B
    39062-0302 HOSE-COOLING,RAD.LEFT HAND-RAD.RIGHT HAND
    HOSE-COOLING,RAD.LEFT HAND-RAD.RIGHT HAND
  • 39062C
    39062-0303 HOSE-COOLING,RAD.LEFT HAND LOW-FIT.
    HOSE-COOLING,RAD.LEFT HAND LOW-FIT.
  • 39062D
    39062-0348 HOSE-COOLING,HEAD-3 WAY FIT.
    HOSE-COOLING,HEAD-3 WAY FIT.
  • 39062E
    39062-0349 HOSE-COOLING,FIT.-RAD. LEFT HAND UPPER
    HOSE-COOLING,FIT.-RAD. LEFT HAND UPPER
  • 39062F
    39062-0350 HOSE-COOLING,FIT.-RAD. RIGHT HAND UPPER
    HOSE-COOLING,FIT.-RAD. RIGHT HAND UPPER
  • 92005
    92005-0066 FITTING,3 WAY,HEAD-RAD
    FITTING,3 WAY,HEAD-RAD
  • 92005A
    92005-0067 FITTING,3 WAY,RAD-W/P
    FITTING,3 WAY,RAD-W/P
  • 92171
    92171-0261 CLAMP
    CLAMP
  • 92171A
    92171-0337 CLAMP
    CLAMP
  • 92171B
    92171-0338 CLAMP
    CLAMP
  • 92171C
    92171-0372 CLAMP,CLIP,12.5MM
    CLAMP,CLIP,12.5MM
