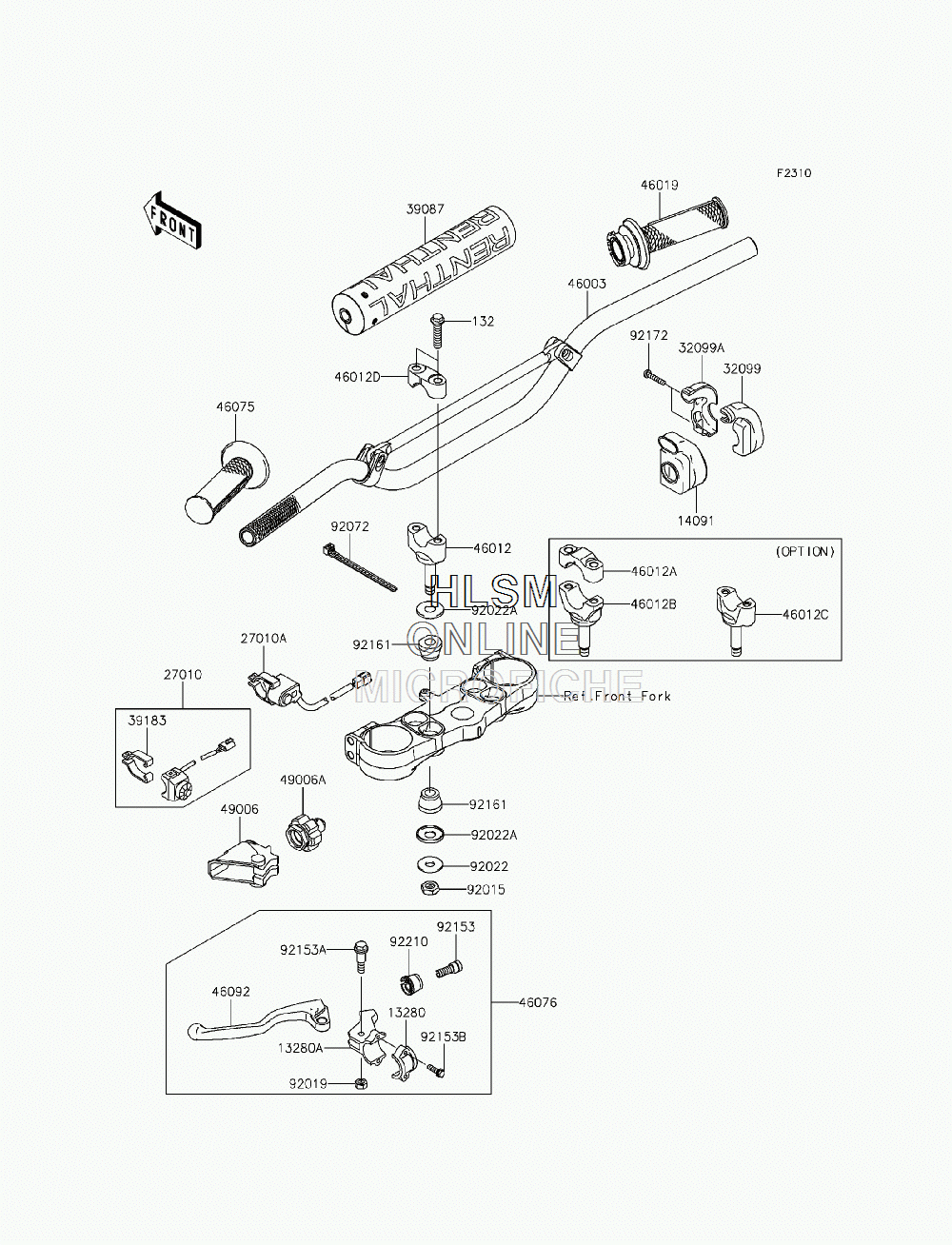

HANDLEBAR для Kawasaki KX450F (KX450FFF) - 2015 года выпуска

  • №
    Артикул
    Название
  • 132
    132BA0835 BOLT-FLANGED-SMALL,8X35
    BOLT-FLANGED-SMALL,8X35
  • 13280
    13280-0055 HOLDER
    HOLDER
  • 13280A
    13280-0118 HOLDER,CLUTCH LEVER
    HOLDER,CLUTCH LEVER
  • 14091
    14091-0182 COVER,THROTTLE CASE
    COVER,THROTTLE CASE
  • 27010
    27010-0047 SWITCH,ENGINE STOP
    SWITCH,ENGINE STOP
  • 27010A
    27010-0725 SWITCH
    SWITCH
  • 32099
    32099-0002 CASE,THROTTLE, REAR
    CASE,THROTTLE, REAR
  • 32099A
    32099-0003 CASE,THROTTLE, FRONT
    CASE,THROTTLE, FRONT
  • 39087
    39087-0004 PAD-HANDLE
    PAD-HANDLE
  • 39183
    39183-1059 BAND-ASSY,SWITCH
    BAND-ASSY,SWITCH
  • 46003
    46003-0572 HANDLE, RENTHAL,K971
    HANDLE, RENTHAL,K971
  • 46012
    46012-0013-21 HOLDER-HANDLE,LOWER,(F.BLACK) (FOR 777)
    HOLDER-HANDLE,LOWER,(F.BLACK) (FOR 777)
  • 46012A
    46012-0020-21 HOLDER-HANDLE,UPPER,FAT BAR,(BLACK) (OPTION) (FOR 777)
    HOLDER-HANDLE,UPPER,FAT BAR,(BLACK) (OPTION) (FOR 777)
  • 46012B
    46012-0021-21 HOLDER-HANDLE,LOWER,FAT BAR,(BLACK) (OPTION) (FOR 777)
    HOLDER-HANDLE,LOWER,FAT BAR,(BLACK) (OPTION) (FOR 777)
  • 46012C
    46012-0048-21 HOLDER-HANDLE,LOWER,(F.BLACK) (OPTION) (FOR 777)
    HOLDER-HANDLE,LOWER,(F.BLACK) (OPTION) (FOR 777)
  • 46012D
    46012-0324-21 HOLDER-HANDLE,UPPER,(F.BLACK) (FOR 777)
    HOLDER-HANDLE,UPPER,(F.BLACK) (FOR 777)
  • 46019
    46019-0041 GRIP-ASSY,THROTTLE
    GRIP-ASSY,THROTTLE
  • 46075
    46075-0072 GRIP, LEFT HAND
    GRIP, LEFT HAND
  • 46076
    46076-0055 LEVER-ASSY-GRIP,CLUTCH
    LEVER-ASSY-GRIP,CLUTCH
  • 46092
    46092-0016 LEVER-GRIP,CLUTCH
    LEVER-GRIP,CLUTCH
  • 49006
    49006-0030 BOOT,CLUTCH LEVER
    BOOT,CLUTCH LEVER
  • 49006A
    49006-0060 BOOT,CLUTCH CABLE
    BOOT,CLUTCH CABLE
  • 92015
    92015-1962 NUT,LOCK,10MM
    NUT,LOCK,10MM
  • 92019
    92019-008 NUT,LOCK,6MM
    NUT,LOCK,6MM
  • 92022
    92022-1088 WASHER,10.2X28X2
    WASHER,10.2X28X2
  • 92022A
    92022-1737 WASHER
    WASHER
  • 92072
    92072-1293 BAND,L=140
    BAND,L=140
  • 92153
    92153-0773 BOLT,BOLT ADJUSTING
    BOLT,BOLT ADJUSTING
  • 92153A
    92153-0807 BOLT
    BOLT
  • 92153B
    92153-0808 BOLT,5X16
    BOLT,5X16
  • 92161
    92161-0929 DAMPER,HANDLE HOLDER
    DAMPER,HANDLE HOLDER
  • 92172
    92172-0069 SCREW,5X20
    SCREW,5X20
  • 92210
    92210-0167 NUT,BOLT WIRE ADJUSTING
    NUT,BOLT WIRE ADJUSTING
