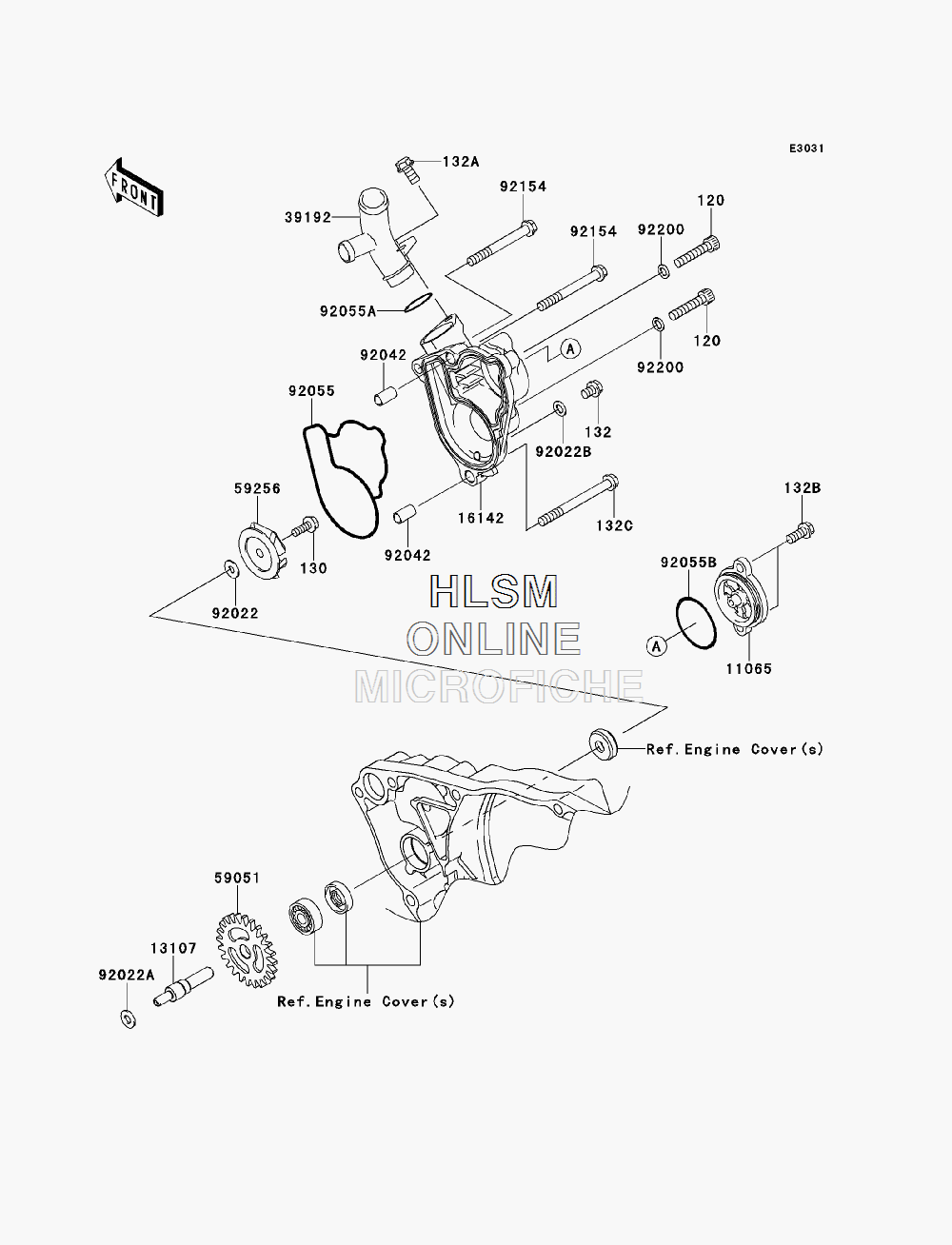

WATER PUMP для Kawasaki KX250F (KX250ZEF) - 2014 года выпуска

  • №
    Артикул
    Название
  • 120
    120CA0630 BOLT-SOCKET, 6X30
    BOLT-SOCKET, 6X30
  • 130
    130CD0514 BOLT-FLANGED, 5X14
    BOLT-FLANGED, 5X14
  • 132
    132BA0608 BOLT-FLANGED-SMALL, 6X8
    BOLT-FLANGED-SMALL, 6X8
  • 132A
    132BA0612 BOLT-FLANGED-SMALL, 6X12
    BOLT-FLANGED-SMALL, 6X12
  • 132B
    132BA0614 BOLT-FLANGED-SMALL, 6X14
    BOLT-FLANGED-SMALL, 6X14
  • 132C
    132BA0665 BOLT-FLANGED-SMALL, 6X65
    BOLT-FLANGED-SMALL, 6X65
  • 11065
    11065-0087 CAP
    CAP
  • 13107
    13107-0196 SHAFT, WATER PUMP
    SHAFT, WATER PUMP
  • 16142
    16142-0020 COVER-PUMP, WATER
    COVER-PUMP, WATER
  • 39192
    39192-0037 PIPE-WATER
    PIPE-WATER
  • 59051
    59051-0061 GEAR-SPUR, WATER PUMP
    GEAR-SPUR, WATER PUMP
  • 59256
    59256-1065 IMPELLER
    IMPELLER
  • 92022
    92022-1380 WASHER, 5.2X13X1
    WASHER, 5.2X13X1
  • 92022A
    92022-1827 WASHER, 6X12.8X1.2
    WASHER, 6X12.8X1.2
  • 92022B
    92022-304 WASHER, 6.2X11X1
    WASHER, 6.2X11X1
  • 92042
    92042-007 PIN, DOWEL, 6.3X8X14
    PIN, DOWEL, 6.3X8X14
  • 92055
    92055-0010 RING-O, WATER PUMP
    RING-O, WATER PUMP
  • 92055A
    92055-1308 RING-O, 18.8X2.4
    RING-O, 18.8X2.4
  • 92055B
    92055-520 RING-O, 35.2X1.9
    RING-O, 35.2X1.9
  • 92154
    92154-0532 BOLT, FLANGED, 6X55
    BOLT, FLANGED, 6X55
  • 92200
    92200-0190 WASHER, 6.1X10.0X1.0
    WASHER, 6.1X10.0X1.0
