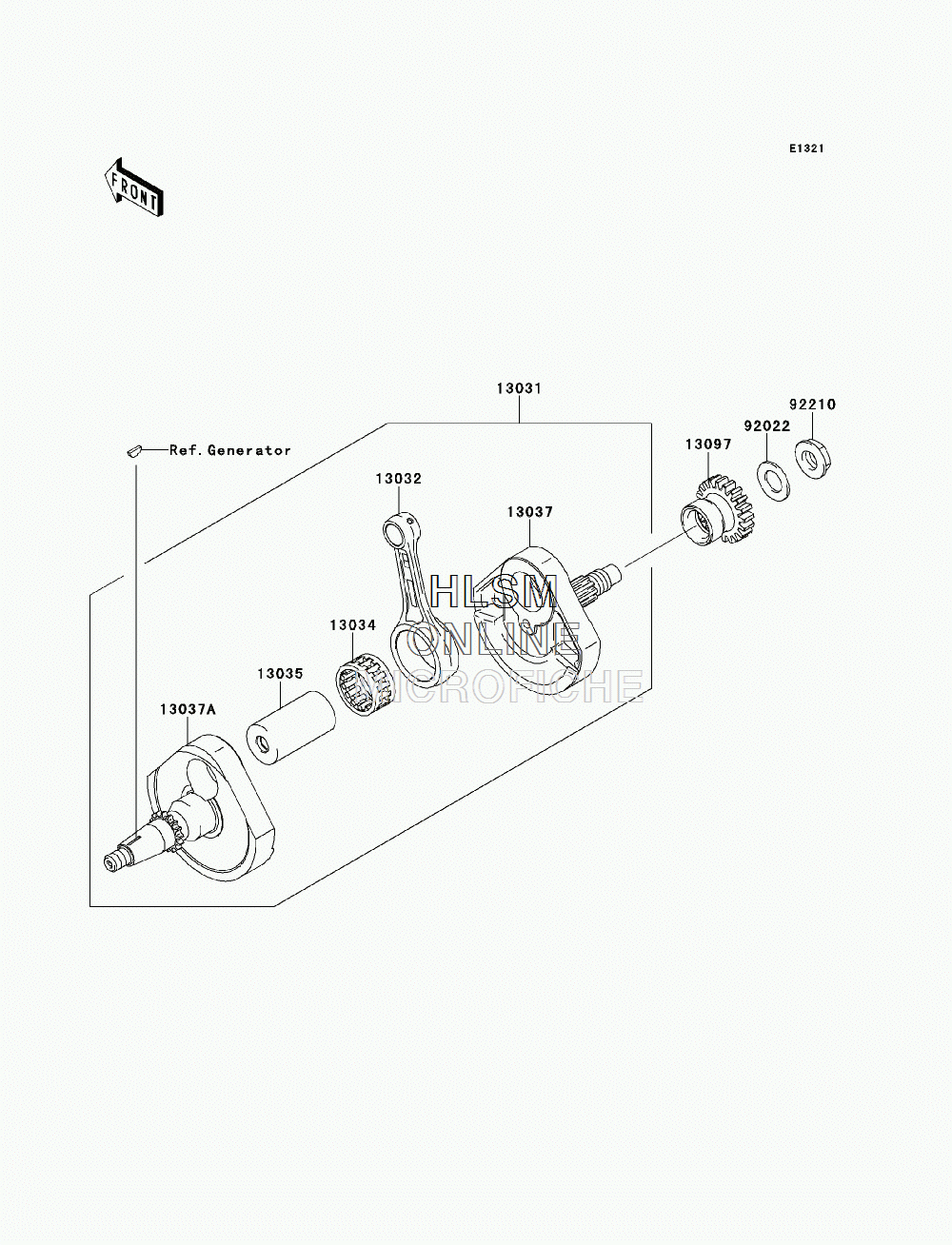

CRANKSHAFT для Kawasaki KX250F (KX250ZEF) - 2014 года выпуска
-
№АртикулНазвание
-
1303113031-0739 CRANKSHAFT-COMPCRANKSHAFT-COMP
-
1303213032-0721 ROD-CONNECTINGROD-CONNECTING
-
1303413034-0019 BEARING-BIG END, B4BEARING-BIG END, B4
-
1303513035-0022 PIN-CRANKPIN-CRANK
-
1303713037-0155 CRANKSHAFT, RIGHT HANDCRANKSHAFT, RIGHT HAND
-
13037A13037-0732 CRANKSHAFT, LEFT HANDCRANKSHAFT, LEFT HAND
-
1309713097-0117 GEAR-PRIMARY SPUR, 20TGEAR-PRIMARY SPUR, 20T
-
9202292022-1356 WASHER, 16.3X29X1.75WASHER, 16.3X29X1.75
-
9221092210-0350 NUT, LEFT HANDED, 16MMNUT, LEFT HANDED, 16MM
