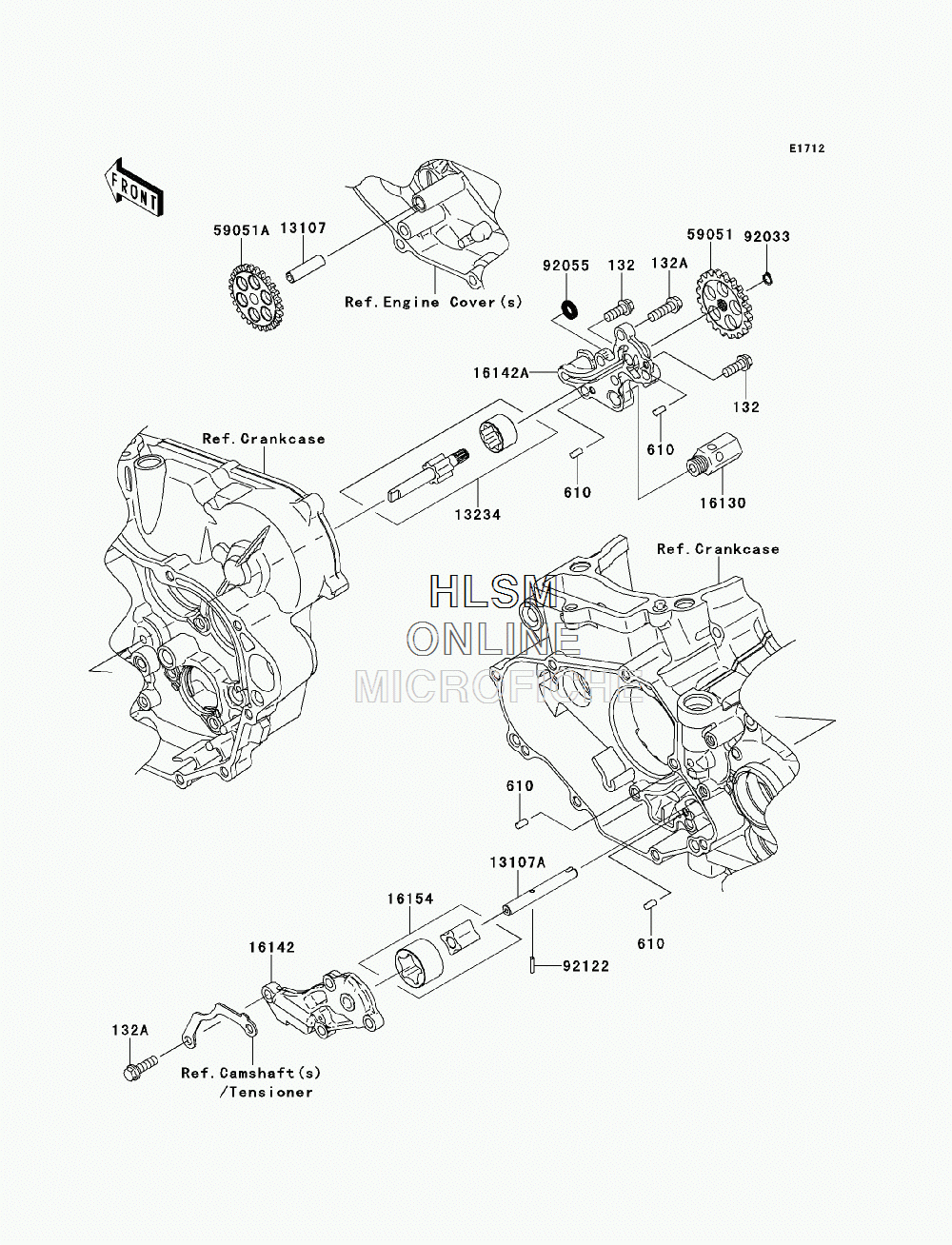

OIL PUMP для Kawasaki KX450F(KX450FDF) - 2013 года выпуска

  • №
    Артикул
    Название
  • 132
    132BA0616 BOLT-FLANGED-SMALL, 6X16
    BOLT-FLANGED-SMALL, 6X16
  • 132A
    132BA0620 BOLT-FLANGED-SMALL, 6X20
    BOLT-FLANGED-SMALL, 6X20
  • 610
    610A0408 ROLLER, 4X8
    ROLLER, 4X8
  • 13107
    13107-0056 SHAFT
    SHAFT
  • 13107A
    13107-0134 SHAFT, OIL PUMP, SCAVENGE
    SHAFT, OIL PUMP, SCAVENGE
  • 13234
    13234-0036 SHAFT-COMP, FEED
    SHAFT-COMP, FEED
  • 16130
    16130-1058 VALVE-ASSY-RELIEF
    VALVE-ASSY-RELIEF
  • 16142
    16142-0042 COVER-PUMP, OIL, LEFT HAND
    COVER-PUMP, OIL, LEFT HAND
  • 16142A
    16142-0062 COVER-PUMP, OIL, RIGHT HAND
    COVER-PUMP, OIL, RIGHT HAND
  • 16154
    16154-0069 ROTOR-PUMP, SCAVENGE
    ROTOR-PUMP, SCAVENGE
  • 59051
    59051-0044 GEAR-SPUR, O/P DRIVEN, 28T
    GEAR-SPUR, O/P DRIVEN, 28T
  • 59051A
    59051-0045 GEAR-SPUR, O/P IDLER, 26T
    GEAR-SPUR, O/P IDLER, 26T
  • 92033
    92033-0019 RING-SNAP
    RING-SNAP
  • 92055
    92055-074 RING-O, OD=13
    RING-O, OD=13
  • 92122
    92122-0021 ROLLER, 2.5X11.8
    ROLLER, 2.5X11.8
