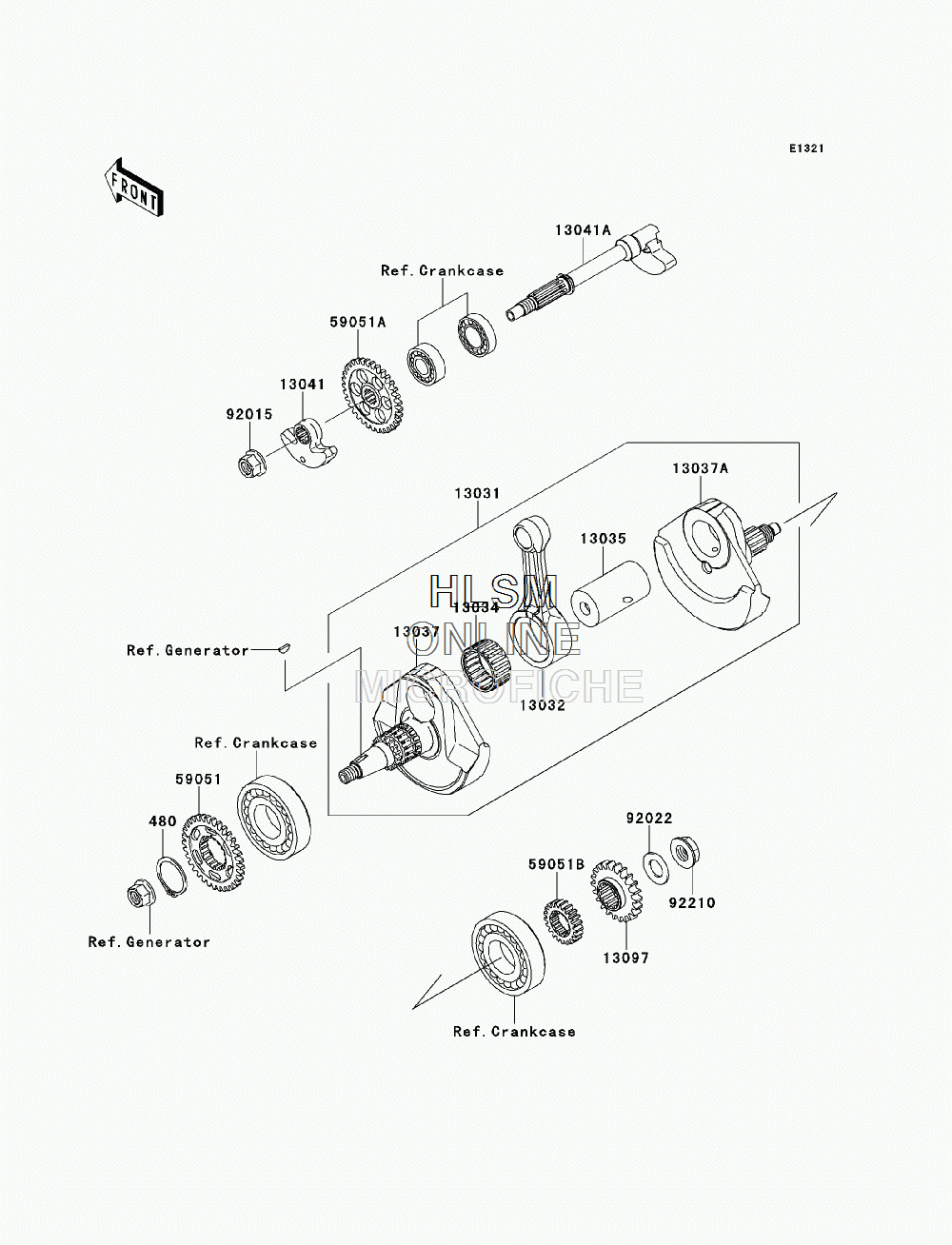

CRANKSHAFT для Kawasaki KX450F(KX450FDF) - 2013 года выпуска

  • №
    Артикул
    Название
  • 480
    480J3200 CIRCLIP-TYPE-C, 32MM
    CIRCLIP-TYPE-C, 32MM
  • 13031
    13031-0133 CRANKSHAFT-COMP
    CRANKSHAFT-COMP
  • 13032
    13032-0067 ROD-CONNECTING, (RED)
    ROD-CONNECTING, (RED)
  • 13034
    13034-0017 BEARING-BIG END, B4 (BLUE)
    BEARING-BIG END, B4 (BLUE)
  • 13035
    13035-0018 PIN-CRANK
    PIN-CRANK
  • 13037
    13037-0159 CRANKSHAFT, LEFT HAND
    CRANKSHAFT, LEFT HAND
  • 13037A
    13037-0160 CRANKSHAFT, RIGHT HAND
    CRANKSHAFT, RIGHT HAND
  • 13041
    13041-0023 BALANCER, WEIGHT
    BALANCER, WEIGHT
  • 13041A
    13041-0026 BALANCER, SHAFT
    BALANCER, SHAFT
  • 13097
    13097-0013 GEAR-PRIMARY SPUR, 22T
    GEAR-PRIMARY SPUR, 22T
  • 59051
    59051-0070 GEAR-SPUR, BALANCER DRIVE, 33T
    GEAR-SPUR, BALANCER DRIVE, 33T
  • 59051A
    59051-0071 GEAR-SPUR, BALANCER DRIVEN, 33T
    GEAR-SPUR, BALANCER DRIVEN, 33T
  • 59051B
    59051-0087 GEAR-SPUR, OIL PUMP DRIVE, 21T
    GEAR-SPUR, OIL PUMP DRIVE, 21T
  • 92015
    92015-1426 NUT, 12MM
    NUT, 12MM
  • 92022
    92022-1356 WASHER, 16.3X29X1.75
    WASHER, 16.3X29X1.75
  • 92210
    92210-0490 NUT, 16MM
    NUT, 16MM
