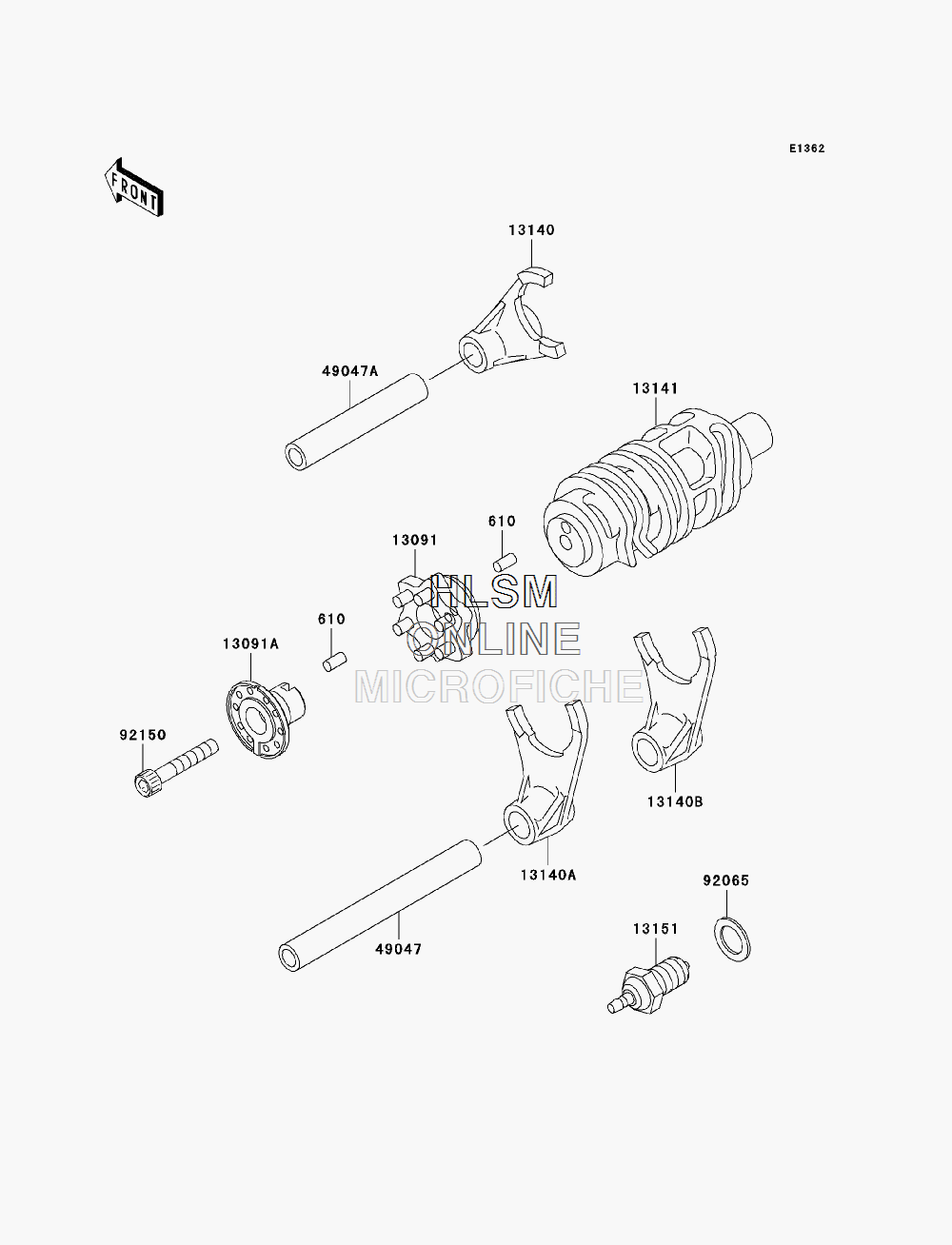

GEAR CHANGE DRUM W/ SHIFT FORK(S) для Kawasaki SUPER SHERPA CANADA ONLY (KL250GAF) - 2010 года выпуска`
-
№АртикулНазвание
-
610610A0408 ROLLER,4X8ROLLER,4X8
-
1309113091-1856 HOLDER,CHANGE DRUMHOLDER,CHANGE DRUM
-
13091A13091-1862 HOLDER,CHANGE DRUMHOLDER,CHANGE DRUM
-
1314013140-1216 FORK-SHIFT,5TH & TOPFORK-SHIFT,5TH & TOP
-
13140A13140-1217 FORK-SHIFT,2ND & 3RDFORK-SHIFT,2ND & 3RD
-
13140B13140-1218 FORK-SHIFT,LOW & 4THFORK-SHIFT,LOW & 4TH
-
1314113141-1198 DRUM-CHANGEDRUM-CHANGE
-
1315113151-1080 SWITCH-COMP,NEUTRALSWITCH-COMP,NEUTRAL
-
4904749047-1056 ROD-SHIFT,L=106.7ROD-SHIFT,L=106.7
-
49047A49047-1057 ROD-SHIFT,L=71.7ROD-SHIFT,L=71.7
-
9206592065-058 GASKET,10.5X16X1GASKET,10.5X16X1
-
9215092150-1484 BOLT,SOCKET,6X35BOLT,SOCKET,6X35
