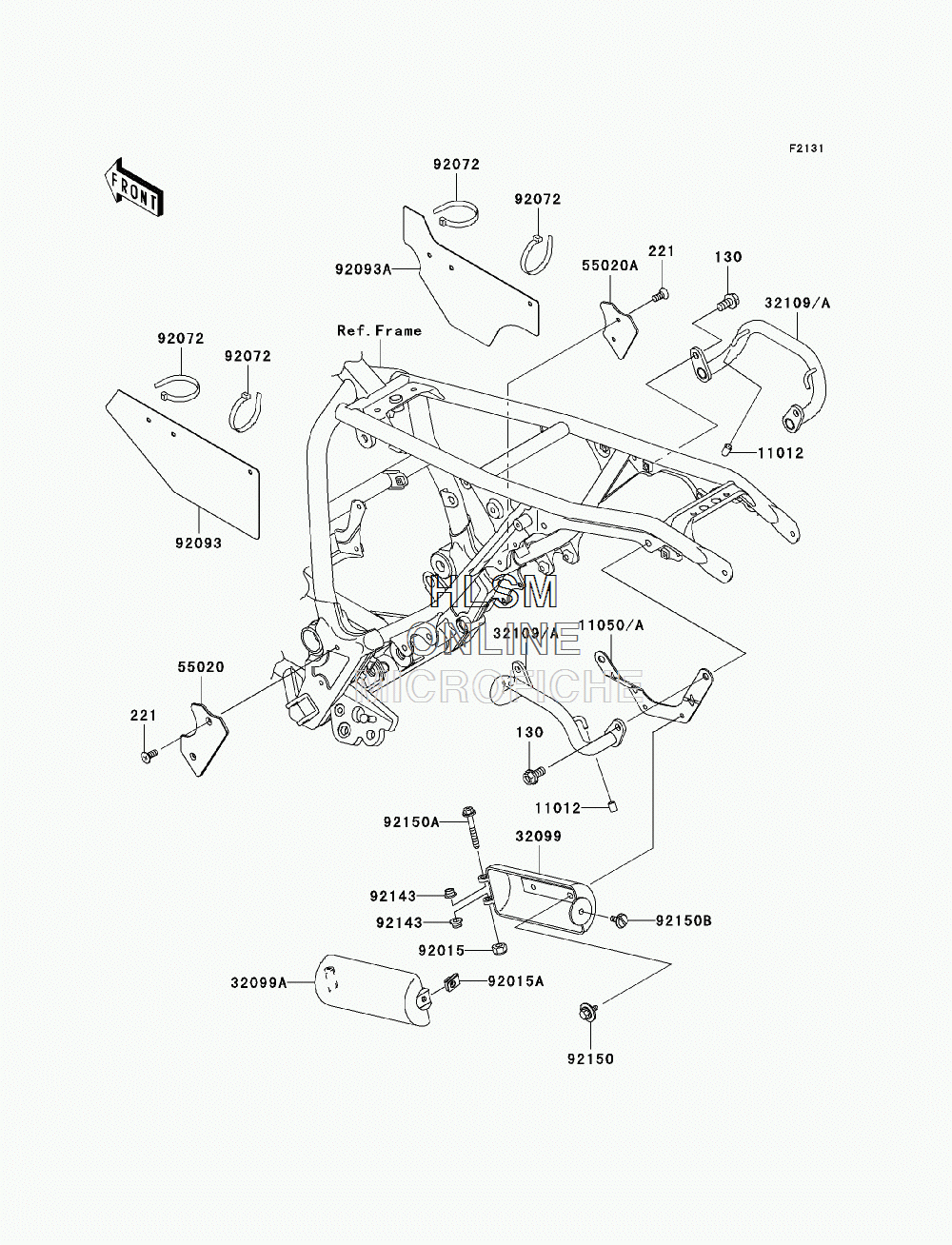

FRAME FITTING(S) для Kawasaki SUPER SHERPA CANADA ONLY (KL250GAF) - 2010 года выпуска
-
№АртикулНазвание
-
130130BA0816 BOLT-FLANGED,8X16BOLT-FLANGED,8X16
-
221221AA0512 SCREW-CSK-CROSS,5X12SCREW-CSK-CROSS,5X12
-
1101211012-1589 CAP,BUNGEE CORD HOOKCAP,BUNGEE CORD HOOK
-
11050A11050-1445-18R BRACKET,TOOL CASE,F.S.BLACKBRACKET,TOOL CASE,F.S.BLACK
-
3209932099-1184 CASE,TOOL,BODYCASE,TOOL,BODY
-
32099A32099-1185 CASE,TOOL,CAPCASE,TOOL,CAP
-
32109A32109-1260-18R GRIP-FRAME,F.S.BLACKGRIP-FRAME,F.S.BLACK
-
5502055020-1606 GUARD,FOOT, LEFT HANDGUARD,FOOT, LEFT HAND
-
55020A55020-1607 GUARD,FOOT, RIGHT HANDGUARD,FOOT, RIGHT HAND
-
9201592015-1221 NUT,LOCK,5MMNUT,LOCK,5MM
-
92015A92015-1602 NUT,6MMNUT,6MM
-
9207292072-1195 BAND,L=202BAND,L=202
-
9209392093-1450 SEAL,AIR CLEANER, LEFT HANDSEAL,AIR CLEANER, LEFT HAND
-
92093A92093-1451 SEAL,AIR CLEANER, RIGHT HANDSEAL,AIR CLEANER, RIGHT HAND
-
9214392143-1234 COLLARCOLLAR
-
9215092150-1392 BOLT,FLANGED,6X14,WASHERBOLT,FLANGED,6X14,WASHER
-
92150A92150-1590 BOLT,ADJUST,5X45BOLT,ADJUST,5X45
-
92150B92150-3732 BOLT,6X14BOLT,6X14
