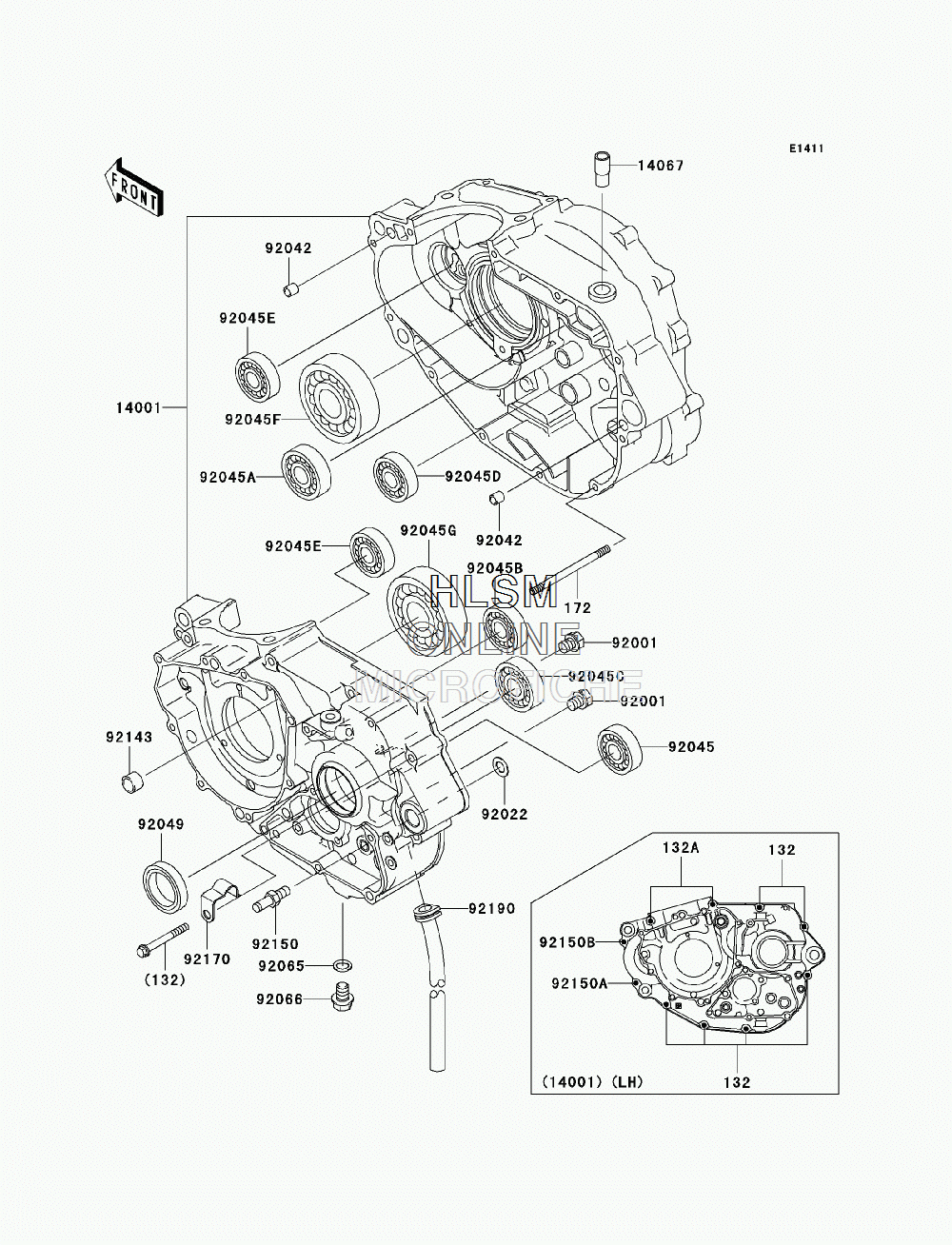

CRANKCASE для Kawasaki SUPER SHERPA CANADA ONLY (KL250G9F) - 2009 года выпуска

  • №
    Артикул
    Название
  • 132
    132BD0650 BOLT-FLANGED-SMALL,6X50
    BOLT-FLANGED-SMALL,6X50
  • 132A
    132BD0670 BOLT-FLANGED-SMALL,6X70
    BOLT-FLANGED-SMALL,6X70
  • 172
    172BA0680 BOLT-STUD,6X80
    BOLT-STUD,6X80
  • 14001
    14001-5359 SET-CRANKCASE
    SET-CRANKCASE
  • 14067
    14067-006 FITTING,BREATHER
    FITTING,BREATHER
  • 92001
    92001-1829 BOLT,W/WASHER,6X14
    BOLT,W/WASHER,6X14
  • 92022
    92022-1415 WASHER,10.2X18X1.0,SK5
    WASHER,10.2X18X1.0,SK5
  • 92042
    92042-007 PIN,DOWEL,6.3X8X14
    PIN,DOWEL,6.3X8X14
  • 92045
    92045-036 BEARING-BALL,#6905
    BEARING-BALL,#6905
  • 92045A
    92045-1041 BEARING-BALL,TMB204 JR
    BEARING-BALL,TMB204 JR
  • 92045B
    92045-1287 BEARING-BALL,TMB203LU
    BEARING-BALL,TMB203LU
  • 92045C
    92045-1288 BEARING-BALL,TMB205LU
    BEARING-BALL,TMB205LU
  • 92045D
    92045-1291 BEARING-BALL,TMB203
    BEARING-BALL,TMB203
  • 92045E
    92045-1346 BEARING-BALL,TMB302JR2
    BEARING-BALL,TMB302JR2
  • 92045F
    92045-1347 BEARING-BALL,TMB306JR2
    BEARING-BALL,TMB306JR2
  • 92045G
    92045-1348 BEARING-BALL,3TM-6207CJR2
    BEARING-BALL,3TM-6207CJR2
  • 92049
    92049-1577 SEAL-OIL,TC32457
    SEAL-OIL,TC32457
  • 92065
    92065-058 GASKET,10.5X16X1
    GASKET,10.5X16X1
  • 92066
    92066-1241 PLUG,DRAIN
    PLUG,DRAIN
  • 92143
    92143-1263 COLLAR
    COLLAR
  • 92150
    92150-1803 BOLT, RETURN SPRING
    BOLT, RETURN SPRING
  • 92150A
    92150-1874 BOLT,SOCKET,6X50
    BOLT,SOCKET,6X50
  • 92150B
    92150-1875 BOLT,SOCKET,6X35
    BOLT,SOCKET,6X35
  • 92170
    92170-1803 CLAMP,TUBE
    CLAMP,TUBE
  • 92190
    92190-1493 TUBE
    TUBE
