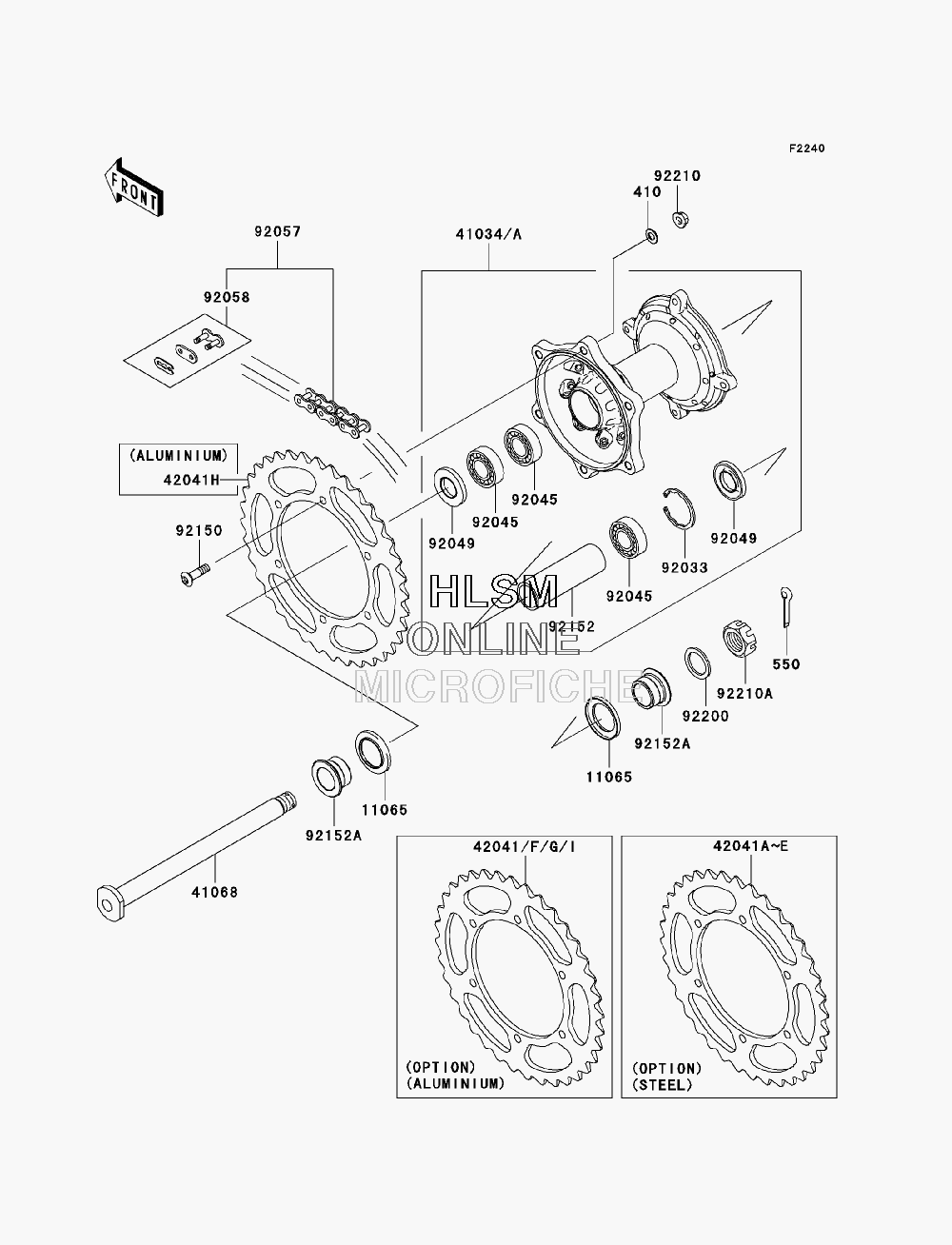

REAR HUB для Kawasaki KX450F (KX450E9F) - 2009 года выпуска

  • №
    Артикул
    Название
  • 410
    410AA0800 WASHER-PLAIN-SMALL, 8MM
    WASHER-PLAIN-SMALL, 8MM
  • 550
    550AA3035 PIN-COTTER, 3.0X35
    PIN-COTTER, 3.0X35
  • 11065
    11065-1253 CAP, AXLE
    CAP, AXLE
  • 41034A
    41034-0057 DRUM-ASSY, REAR BRAKE
    DRUM-ASSY, REAR BRAKE
  • 41068
    41068-1466 AXLE, REAR
    AXLE, REAR
  • 42041
    42041-0001 SPROCKET-HUB, 52T, AL (OPTION)
    SPROCKET-HUB, 52T, AL (OPTION)
  • 42041A
    42041-1383 SPROCKET-HUB, 48T (OPTION)
    SPROCKET-HUB, 48T (OPTION)
  • 42041B
    42041-1384 SPROCKET-HUB, 49T (OPTION)
    SPROCKET-HUB, 49T (OPTION)
  • 42041C
    42041-1408 SPROCKET-HUB, 50T (OPTION)
    SPROCKET-HUB, 50T (OPTION)
  • 42041D
    42041-1428 SPROCKET-HUB, 51T (OPTION)
    SPROCKET-HUB, 51T (OPTION)
  • 42041E
    42041-1429 SPROCKET-HUB, 52T (OPTION)
    SPROCKET-HUB, 52T (OPTION)
  • 42041F
    42041-1448 SPROCKET-HUB, 48T, AL (OPTION)
    SPROCKET-HUB, 48T, AL (OPTION)
  • 42041G
    42041-1449 SPROCKET-HUB, 49T, AL (OPTION)
    SPROCKET-HUB, 49T, AL (OPTION)
  • 42041H
    42041-1450 SPROCKET-HUB, 50T, AL
    SPROCKET-HUB, 50T, AL
  • 42041I
    42041-1451 SPROCKET-HUB, 51T, AL (OPTION)
    SPROCKET-HUB, 51T, AL (OPTION)
  • 92033
    92033-1041 RING-SNAP, 42MM
    RING-SNAP, 42MM
  • 92045
    92045-1446 BEARING-BALL, 69052RS
    BEARING-BALL, 69052RS
  • 92049
    92049-1614 SEAL-OIL
    SEAL-OIL
  • 92057
    92057-1541 CHAIN, DRIVE, DID520DMA2SDHX114L
    CHAIN, DRIVE, DID520DMA2SDHX114L
  • 92058
    92058-1074 JOINT-CHAIN, DRIVE
    JOINT-CHAIN, DRIVE
  • 92150
    92150-1978 BOLT, SOCKET, 8X28
    BOLT, SOCKET, 8X28
  • 92152
    92152-1427 COLLAR, REAR BRAKE DRUM, L=106.5
    COLLAR, REAR BRAKE DRUM, L=106.5
  • 92152A
    92152-1473 COLLAR, REAR AXLE, L=17
    COLLAR, REAR AXLE, L=17
  • 92200
    92200-1623 WASHER, 22.5X35X2.3
    WASHER, 22.5X35X2.3
  • 92210
    92210-0159 NUT, FLANGED, LOCK, 8MM
    NUT, FLANGED, LOCK, 8MM
  • 92210A
    92210-1411 NUT, CASTLE, 22MM
    NUT, CASTLE, 22MM
