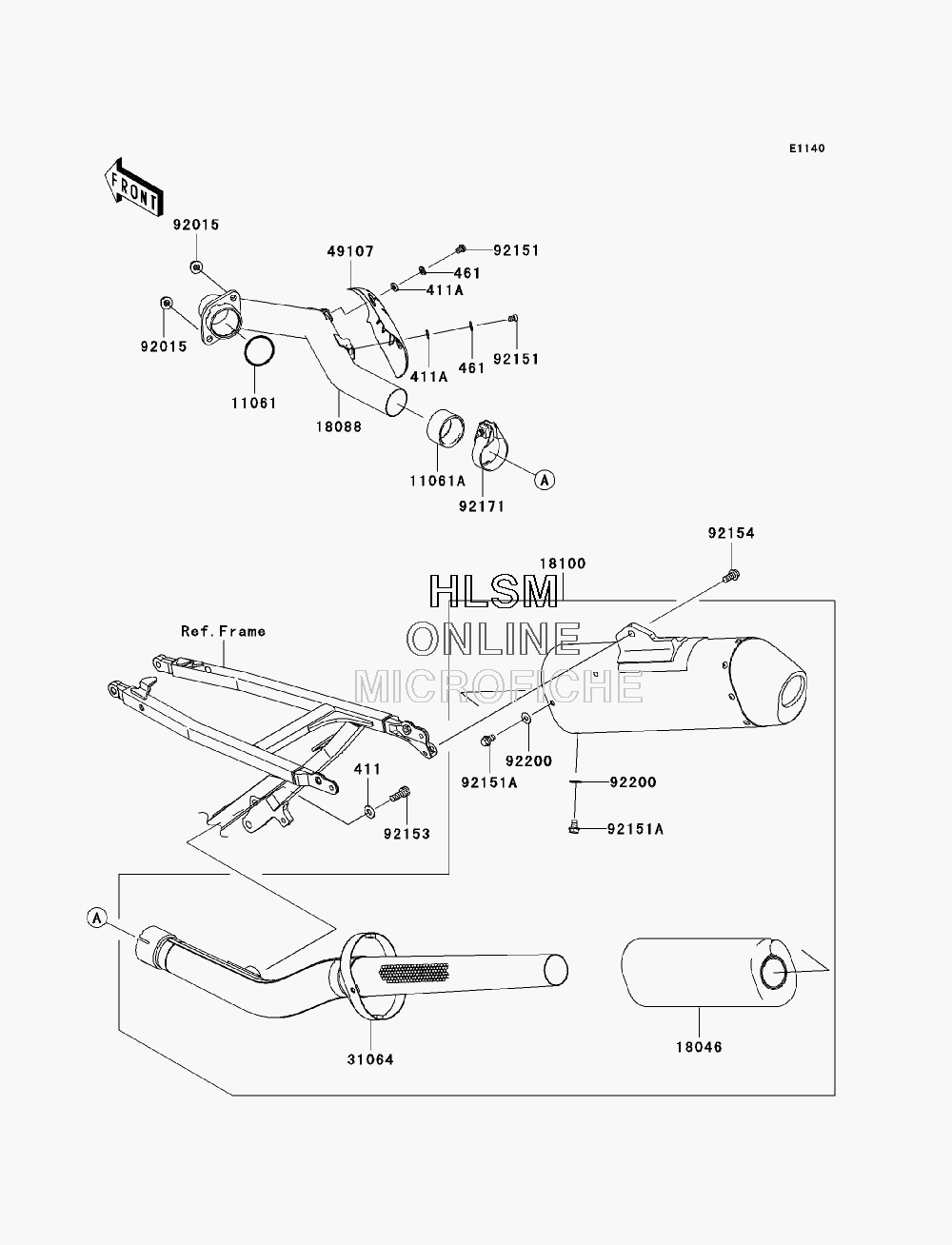

MUFFLER(S) для Kawasaki KX450F (KX450E9F) - 2009 года выпуска

  • №
    Артикул
    Название
  • 411
    411AB0800 WASHER-PLAIN, 8.5X18X1.6
    WASHER-PLAIN, 8.5X18X1.6
  • 411A
    411S0600 WASHER-PLAIN, 6MM
    WASHER-PLAIN, 6MM
  • 461
    461S0600 WASHER-SPRING, 6MM
    WASHER-SPRING, 6MM
  • 11061
    11061-0082 GASKET, 38.9X46.4X3.0
    GASKET, 38.9X46.4X3.0
  • 11061A
    11061-0226 GASKET, 41.0X48.7X32.0
    GASKET, 41.0X48.7X32.0
  • 18046
    18046-0081 WOOL
    WOOL
  • 18088
    18088-0523 PIPE-EXHAUST
    PIPE-EXHAUST
  • 18100
    18100-0095 BODY-ASSY-MUFFLER, 98DB
    BODY-ASSY-MUFFLER, 98DB
  • 31064
    31064-0151 PIPE-COMP
    PIPE-COMP
  • 49107
    49107-0137 COVER-EXHAUST PIPE
    COVER-EXHAUST PIPE
  • 92015
    92015-1402 NUT, 8MM
    NUT, 8MM
  • 92151
    92151-1449 BOLT, SOCKET, 6X10
    BOLT, SOCKET, 6X10
  • 92151A
    92151-1822 BOLT, FLANGED, 6X10
    BOLT, FLANGED, 6X10
  • 92153
    92153-1963 BOLT, FLANGED-SMALL, 8X18
    BOLT, FLANGED-SMALL, 8X18
  • 92154
    92154-0056 BOLT, FLANGED-SMALL, 8X18
    BOLT, FLANGED-SMALL, 8X18
  • 92171
    92171-0653 CLAMP
    CLAMP
  • 92200
    92200-3712 WASHER, 6.5X16X1.0
    WASHER, 6.5X16X1.0
