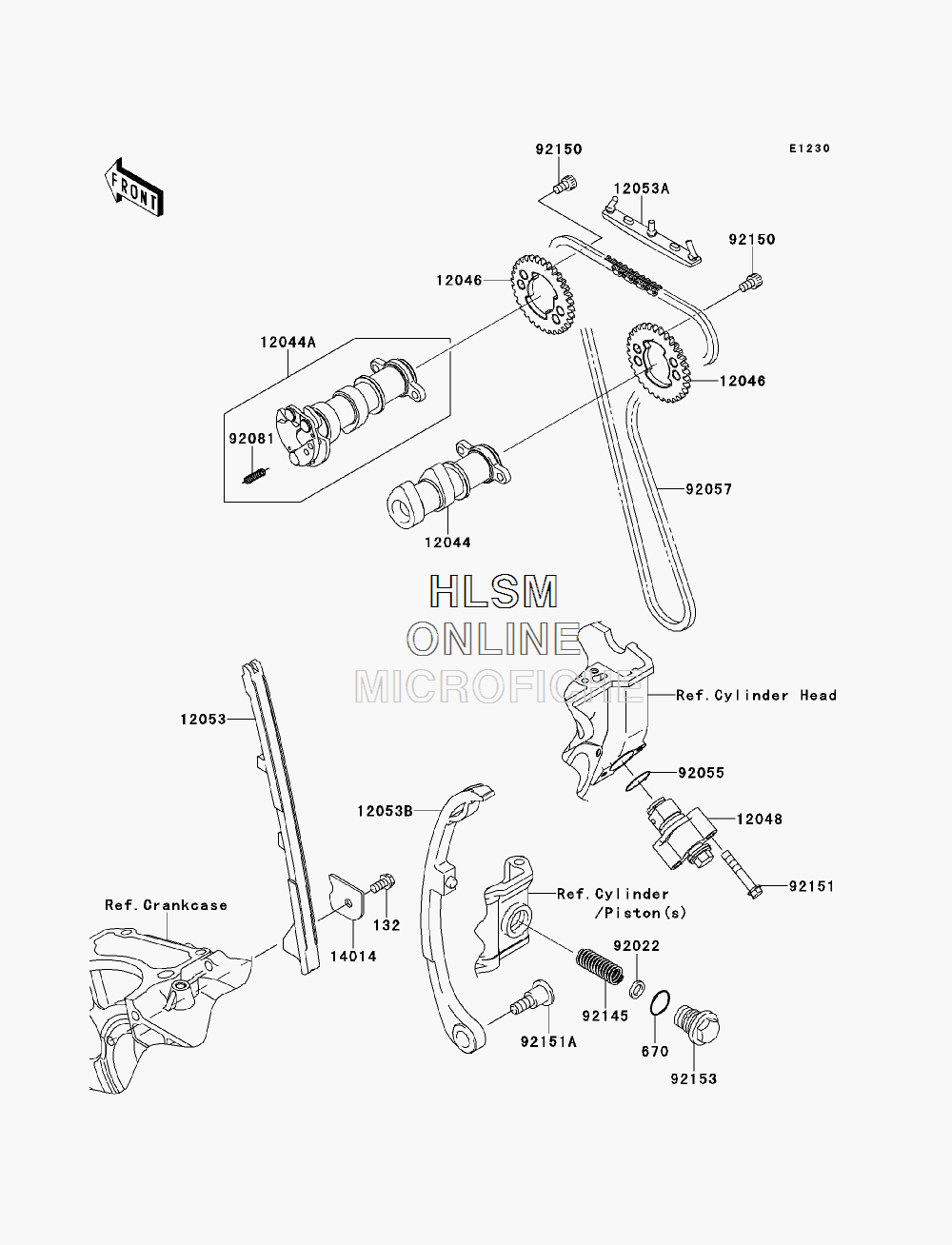

CAMSHAFT(S)/TENSIONER для Kawasaki KLX250SF (KLX250W9F) - 2009 года выпуска`
-
№АртикулНазвание
-
132132BB0612 BOLT-FLANGED-SMALL,6X12BOLT-FLANGED-SMALL,6X12
-
670670B2018 O RING,18MMO RING,18MM
-
1204412044-1327 CAMSHAFT-VALVE,INTAKECAMSHAFT-VALVE,INTAKE
-
12044A12044-1365 CAMSHAFT-VALVE,EXHAUSTCAMSHAFT-VALVE,EXHAUST
-
1204612046-0001 SPROCKET,CAMSHAFT,32TSPROCKET,CAMSHAFT,32T
-
1204812048-0054 TENSIONER-ASSYTENSIONER-ASSY
-
1205312053-1315 GUIDE-CHAIN, FRONTGUIDE-CHAIN, FRONT
-
12053A12053-1317 GUIDE-CHAIN,UPPGUIDE-CHAIN,UPP
-
12053B12053-1391 GUIDE-CHAIN, REARGUIDE-CHAIN, REAR
-
1401414014-1130 PLATE-POSITIONPLATE-POSITION
-
9202292022-1108 WASHER,8.5X13.5X2WASHER,8.5X13.5X2
-
9205592055-086 RING-O,18.8X1.9RING-O,18.8X1.9
-
9205792057-1416 CHAIN,CAM,92RIGHT HAND2010CHAIN,CAM,92RIGHT HAND2010
-
9208192081-1626 SPRING,DECOMPRESSORSPRING,DECOMPRESSOR
-
9214592145-0367 SPRING,TENSIONERSPRING,TENSIONER
-
9215092150-1650 BOLT,SOCKET,6X10BOLT,SOCKET,6X10
-
9215192151-1135 BOLT,6X35BOLT,6X35
-
92151A92151-1154 BOLT,L=30BOLT,L=30
-
9215392153-0650 BOLT,TENSIONERBOLT,TENSIONER
