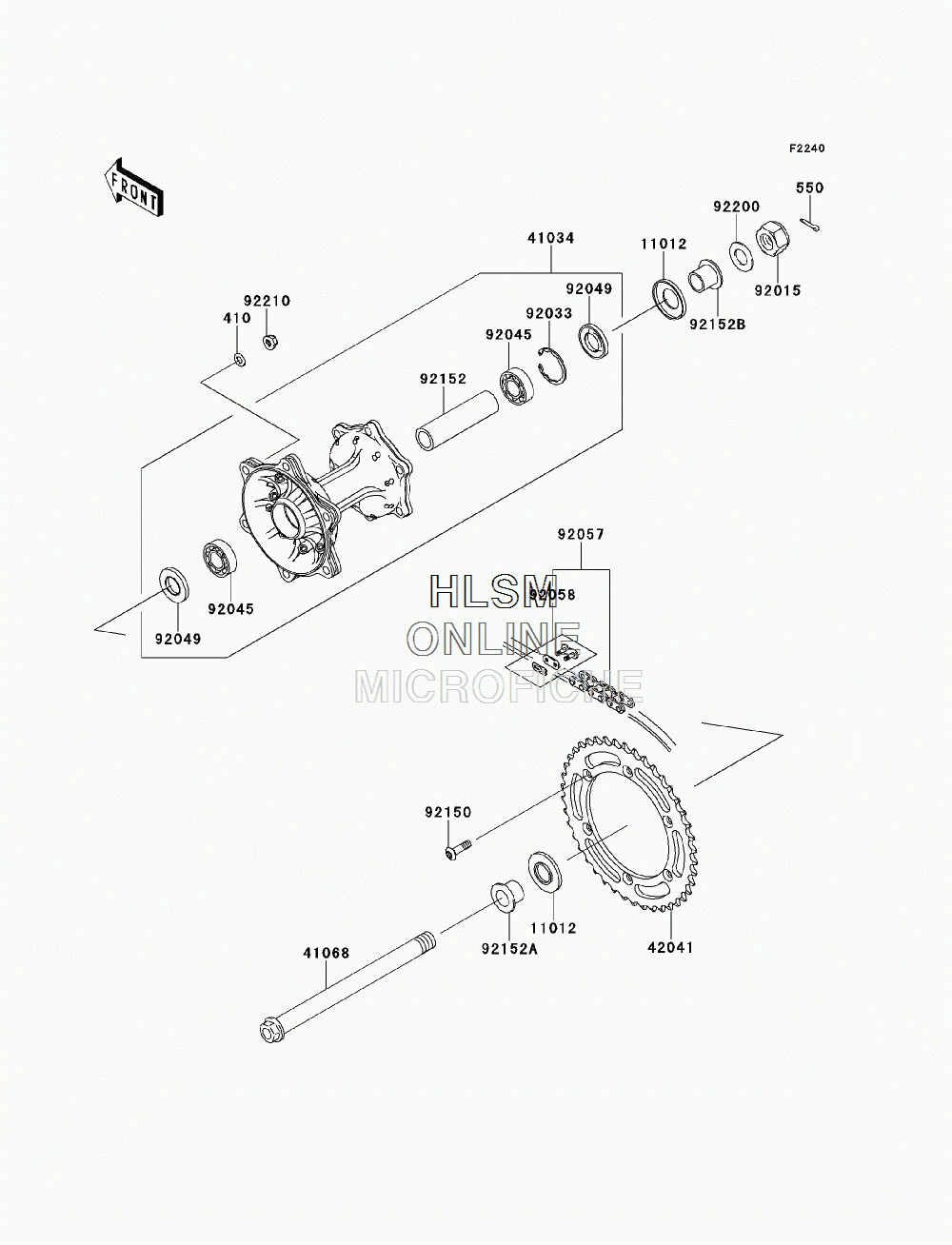

REAR HUB для Kawasaki KLX250S (KLX250T9F) - 2009 года выпуска

  • №
    Артикул
    Название
  • 410
    410AA0800 WASHER-PLAIN-SMALL, 8MM
    WASHER-PLAIN-SMALL, 8MM
  • 550
    550AA3025 PIN-COTTER, 3.0X25
    PIN-COTTER, 3.0X25
  • 11012
    11012-1581 CAP, AXLE
    CAP, AXLE
  • 41034
    41034-0044 DRUM-ASSY, REAR BRAKE
    DRUM-ASSY, REAR BRAKE
  • 41068
    41068-0066 AXLE, REAR
    AXLE, REAR
  • 42041
    42041-1421 SPROCKET-HUB, 42T
    SPROCKET-HUB, 42T
  • 92015
    92015-1770 NUT, LOCK, 20MM
    NUT, LOCK, 20MM
  • 92033
    92033-1041 RING-SNAP, 42MM
    RING-SNAP, 42MM
  • 92045
    92045-1239 BEARING-BALL, 6004X8JRLLX2/3A
    BEARING-BALL, 6004X8JRLLX2/3A
  • 92049
    92049-1203 SEAL-OIL, BJNC2 25425
    SEAL-OIL, BJNC2 25425
  • 92057
    92057-1367 CHAIN, DRIVE, EK520LV-OX106L
    CHAIN, DRIVE, EK520LV-OX106L
  • 92058
    92058-1070 JOINT-CHAIN, DRIVE, EK
    JOINT-CHAIN, DRIVE, EK
  • 92150
    92150-1978 BOLT, SOCKET, 8X28
    BOLT, SOCKET, 8X28
  • 92152
    92152-0529 COLLAR, REAR BRAKE DRUM, L=105
    COLLAR, REAR BRAKE DRUM, L=105
  • 92152A
    92152-0734 COLLAR, REAR AXLE, L=22
    COLLAR, REAR AXLE, L=22
  • 92152B
    92152-0735 COLLAR, REAR AXLE, RIGHT HAND, L=20
    COLLAR, REAR AXLE, RIGHT HAND, L=20
  • 92200
    92200-1146 WASHER, 20.2X36X2
    WASHER, 20.2X36X2
  • 92210
    92210-0493 NUT, FLANGED, LOCK, 8MM
    NUT, FLANGED, LOCK, 8MM
