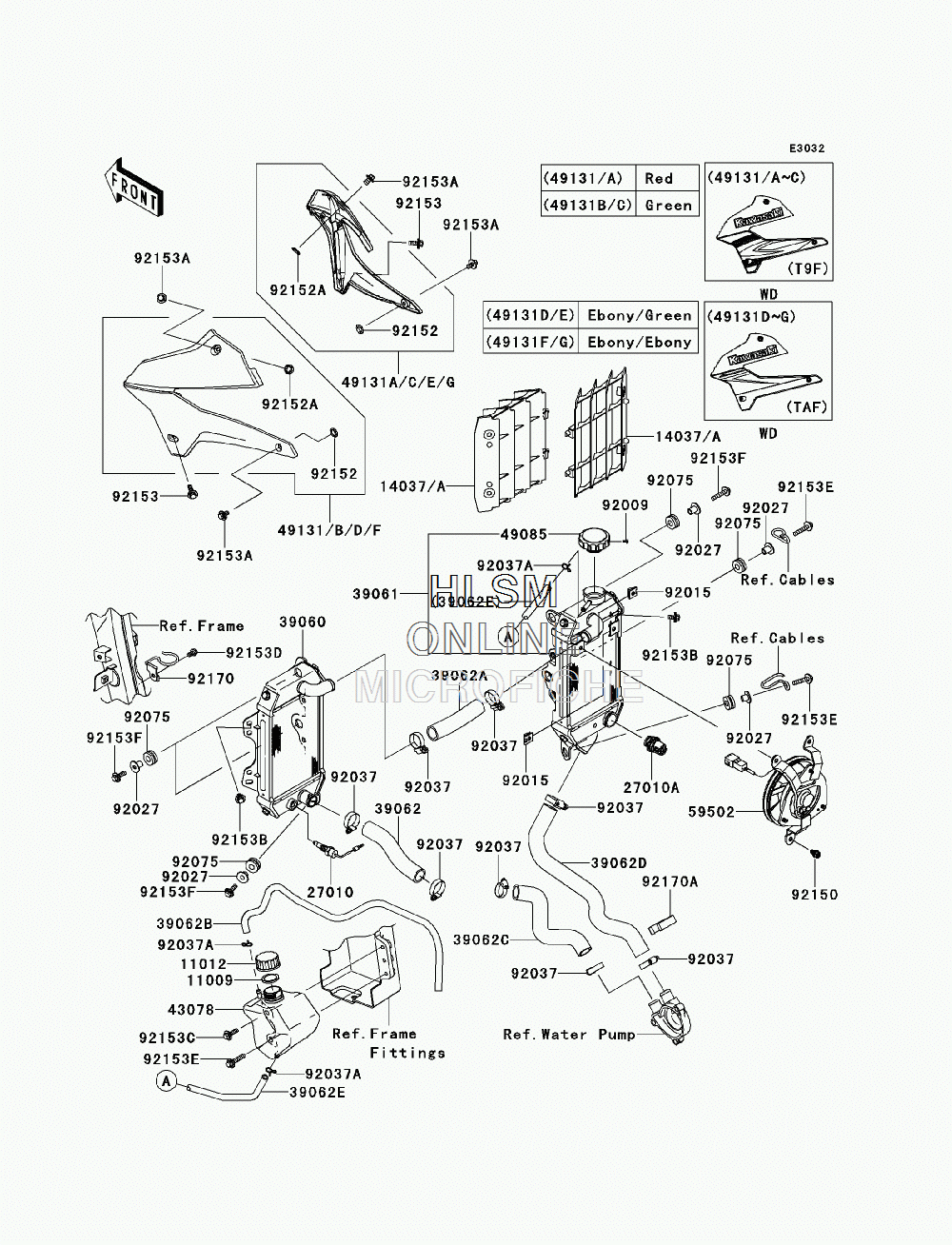

RADIATOR для Kawasaki KLX250S (KLX250T9F) - 2009 года выпуска

  • №
    Артикул
    Название
  • 11009
    11009-1145 GASKET, RESERVOIR TANK CAP
    GASKET, RESERVOIR TANK CAP
  • 11012
    11012-1084 CAP
    CAP
  • 14037
    14037-0067-RZ SCREEN, (WHITE)
    SCREEN, (WHITE)
  • 27010
    27010-1199 SWITCH, WARNING
    SWITCH, WARNING
  • 27010A
    27010-1443 SWITCH
    SWITCH
  • 39060
    39060-0045 RADIATOR
    RADIATOR
  • 39061
    39061-0184 RADIATOR-ASSY
    RADIATOR-ASSY
  • 39062
    39062-0199 HOSE-COOLING, HEAD-RAD.LEFT HAND
    HOSE-COOLING, HEAD-RAD.LEFT HAND
  • 39062A
    39062-0200 HOSE-COOLING, RAD. LEFT HAND-RAD. RIGHT HAND
    HOSE-COOLING, RAD. LEFT HAND-RAD. RIGHT HAND
  • 39062B
    39062-0204 HOSE-COOLING, OVERFLOW
    HOSE-COOLING, OVERFLOW
  • 39062C
    39062-1563 HOSE-COOLING, PUMP-CYLINDER
    HOSE-COOLING, PUMP-CYLINDER
  • 39062D
    39062-1564 HOSE-COOLING, RADIATOR-PUMP
    HOSE-COOLING, RADIATOR-PUMP
  • 39062E
    39062-1786 HOSE-COOLING, RESERVOIR
    HOSE-COOLING, RESERVOIR
  • 43078
    43078-0044 RESERVOIR
    RESERVOIR
  • 49085
    49085-1075 CAP-ASSY-PRESSURE
    CAP-ASSY-PRESSURE
  • 49131
    49131-5130-6B SHROUD-ENGINE, LEFT HAND, (S.RED) (FOR H1)
    SHROUD-ENGINE, LEFT HAND, (S.RED) (FOR H1)
  • 49131A
    49131-5131-6B SHROUD-ENGINE, RIGHT HAND, (S.RED) (FOR H1)
    SHROUD-ENGINE, RIGHT HAND, (S.RED) (FOR H1)
  • 49131B
    49131-5132-290 SHROUD-ENGINE, LEFT HAND, (L.GREEN) (FOR 777)
    SHROUD-ENGINE, LEFT HAND, (L.GREEN) (FOR 777)
  • 49131C
    49131-5133-290 SHROUD-ENGINE, RIGHT HAND, (L.GREEN) (FOR 777)
    SHROUD-ENGINE, RIGHT HAND, (L.GREEN) (FOR 777)
  • 59502
    59502-0028 FAN-ASSY
    FAN-ASSY
  • 92009
    92009-1844 SCREW, TAPPING, 3X6
    SCREW, TAPPING, 3X6
  • 92015
    92015-1487 NUT
    NUT
  • 92027
    92027-1183 COLLAR
    COLLAR
  • 92037
    92037-1589 CLAMP, COOLING HOSE
    CLAMP, COOLING HOSE
  • 92037A
    92037-1712 CLAMP
    CLAMP
  • 92075
    92075-209 DAMPER
    DAMPER
  • 92150
    92150-1186 BOLT, 6X12
    BOLT, 6X12
  • 92152
    92152-0909 COLLAR, 8.8X11.2X4
    COLLAR, 8.8X11.2X4
  • 92152A
    92152-1235 COLLAR
    COLLAR
  • 92153
    92153-0502 BOLT, 6X20
    BOLT, 6X20
  • 92153A
    92153-0503 BOLT, 6X12
    BOLT, 6X12
  • 92153B
    92153-0936 BOLT, FLANGED, 6X14
    BOLT, FLANGED, 6X14
  • 92153C
    92153-0950 BOLT, FLANGED, 6X22
    BOLT, FLANGED, 6X22
  • 92153D
    92153-1354 BOLT, FLANGED, 6X10
    BOLT, FLANGED, 6X10
  • 92153E
    92153-1457 BOLT, FLANGED, 6X30
    BOLT, FLANGED, 6X30
  • 92153F
    92153-1560 BOLT, FLANGED-SMALL, 6X22
    BOLT, FLANGED-SMALL, 6X22
  • 92170
    92170-1357 CLAMP
    CLAMP
  • 92170A
    92170-1419 CLAMP
    CLAMP
