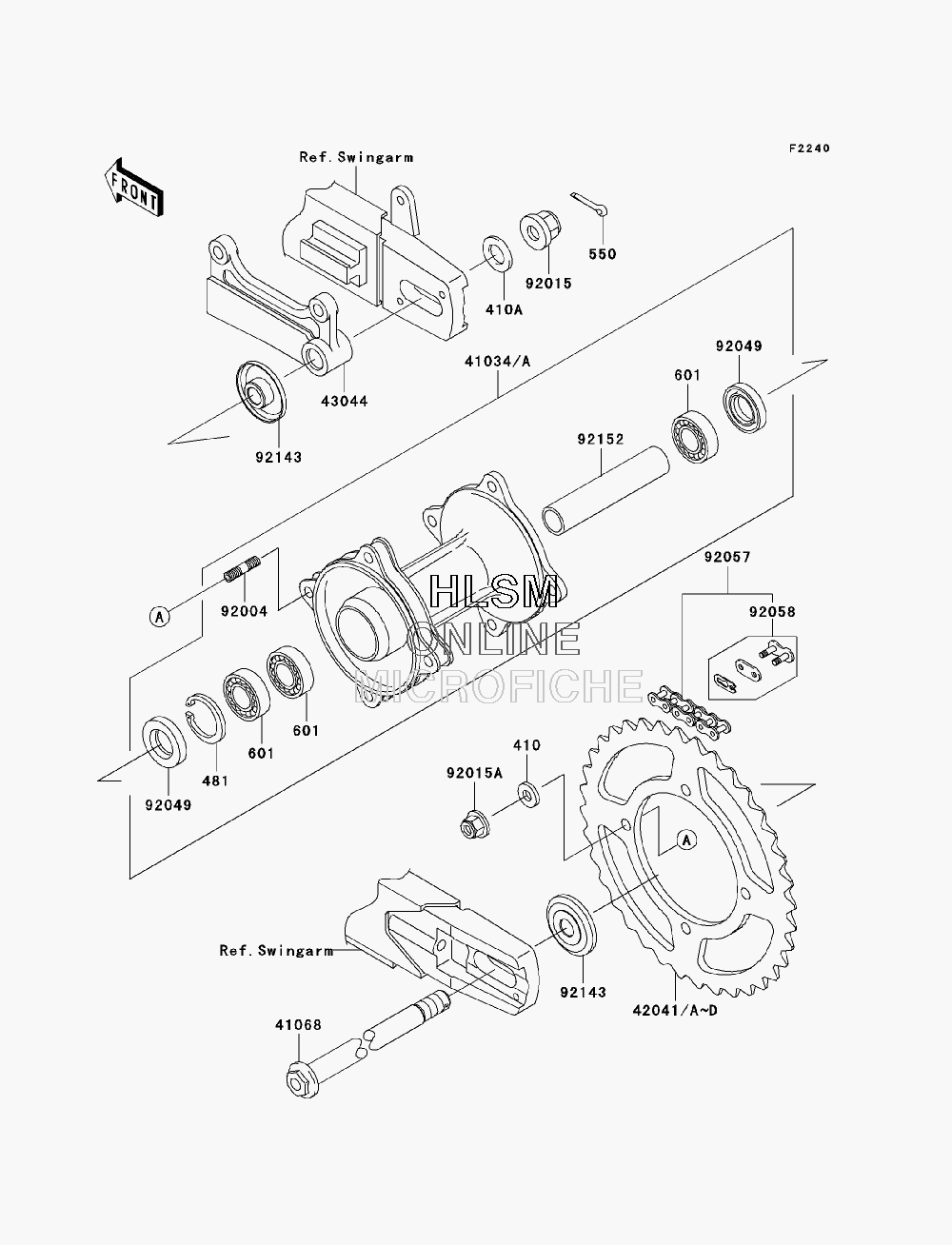

REAR HUB для Kawasaki KX85A (KX85A7F) - 2007 года выпуска`
-
№АртикулНазвание
-
410410AA0800 WASHER-PLAIN-SMALL, 8MMWASHER-PLAIN-SMALL, 8MM
-
410A410AA1400 WASHER-PLAIN-SMALL, 14MMWASHER-PLAIN-SMALL, 14MM
-
481481J3500 CIRCLIP-TYPE-C, 35MMCIRCLIP-TYPE-C, 35MM
-
550550AA2520 PIN-COTTER, 2.5X20PIN-COTTER, 2.5X20
-
601601B6202UU BEARING-BALLBEARING-BALL
-
41034A41034-1323 DRUM-ASSY, REAR BRAKEDRUM-ASSY, REAR BRAKE
-
4106841068-1401 AXLE, REARAXLE, REAR
-
4204142041-1207 SPROCKET-HUB, 49T (OPTION)SPROCKET-HUB, 49T (OPTION)
-
42041A42041-1227 SPROCKET-HUB, 48T (OPTION)SPROCKET-HUB, 48T (OPTION)
-
42041B42041-1228 SPROCKET-HUB, 50TSPROCKET-HUB, 50T
-
42041C42041-1229 SPROCKET-HUB, 51T (OPTION)SPROCKET-HUB, 51T (OPTION)
-
42041D42041-1245 SPROCKET-HUB, 52T (OPTION)SPROCKET-HUB, 52T (OPTION)
-
4304443044-1122 HOLDER-COMP-CALIPERHOLDER-COMP-CALIPER
-
9200492004-1183 STUD, 8X16STUD, 8X16
-
9201592015-1401 NUT, FLANGED, 14MMNUT, FLANGED, 14MM
-
92015A92015-1432 NUT, 8MMNUT, 8MM
-
9204992049-1469 SEAL-OILSEAL-OIL
-
9205792057-1496 CHAIN, DRIVE, DID420DS2X120LCHAIN, DRIVE, DID420DS2X120L
-
9205892058-1086 JOINT-CHAIN, DRIVEJOINT-CHAIN, DRIVE
-
9214392143-1938 COLLAR, REAR AXLE, L=12.5COLLAR, REAR AXLE, L=12.5
-
9215292152-1090 COLLAR, REAR BRAKE DRUM, L=95COLLAR, REAR BRAKE DRUM, L=95
