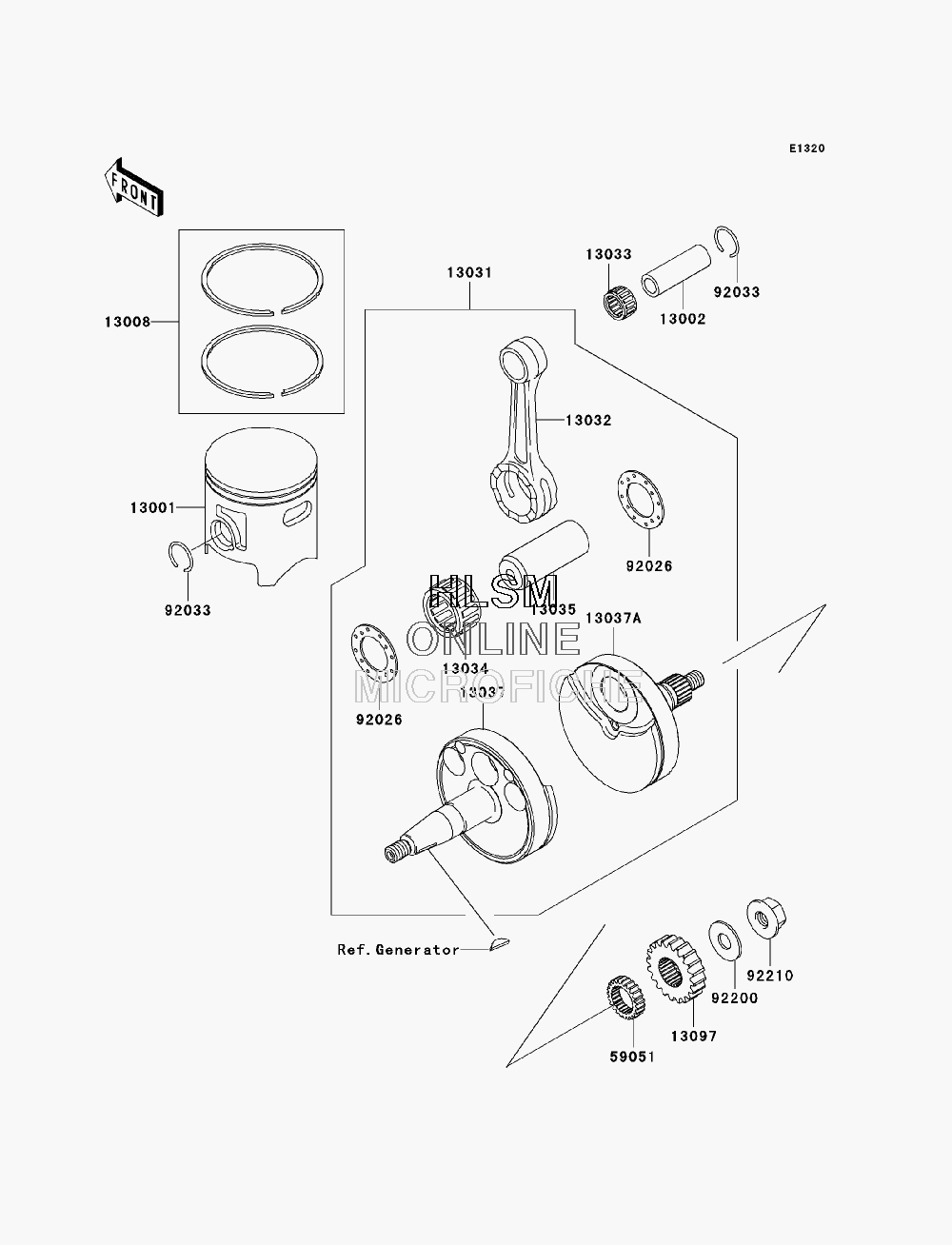

CRANKSHAFT - PISTON(S) для Kawasaki KX85A (KX85A7F) - 2007 года выпуска

  • №
    Артикул
    Название
  • 13001
    13001-0006 PISTON-ENGINE, B
    PISTON-ENGINE, B
  • 13002
    13002-1079 PIN-PISTON
    PIN-PISTON
  • 13008
    13008-1200 RING-SET-PISTON
    RING-SET-PISTON
  • 13031
    13031-0040 CRANKSHAFT-COMP
    CRANKSHAFT-COMP
  • 13032
    13032-1230 ROD-CONNECTING
    ROD-CONNECTING
  • 13033
    13033-1060 BEARING-SMALL END
    BEARING-SMALL END
  • 13034
    13034-0013 BEARING-BIG END, SKTZ 222916EGS
    BEARING-BIG END, SKTZ 222916EGS
  • 13035
    13035-1054 PIN-CRANK
    PIN-CRANK
  • 13037
    13037-0050 CRANKSHAFT, LEFT HAND
    CRANKSHAFT, LEFT HAND
  • 13037A
    13037-0051 CRANKSHAFT, RIGHT HAND
    CRANKSHAFT, RIGHT HAND
  • 13097
    13097-1148 GEAR-PRIMARY SPUR, 20T
    GEAR-PRIMARY SPUR, 20T
  • 59051
    59051-1146 GEAR-SPUR, PUMP, 23T
    GEAR-SPUR, PUMP, 23T
  • 92026
    92026-1136 SPACER, 22.2X37X1.0
    SPACER, 22.2X37X1.0
  • 92033
    92033-0005 RING-SNAP
    RING-SNAP
  • 92200
    92200-0213 WASHER, 10.2X25X1.5
    WASHER, 10.2X25X1.5
  • 92210
    92210-0215 NUT, FLANGED, M10XL1.25
    NUT, FLANGED, M10XL1.25
