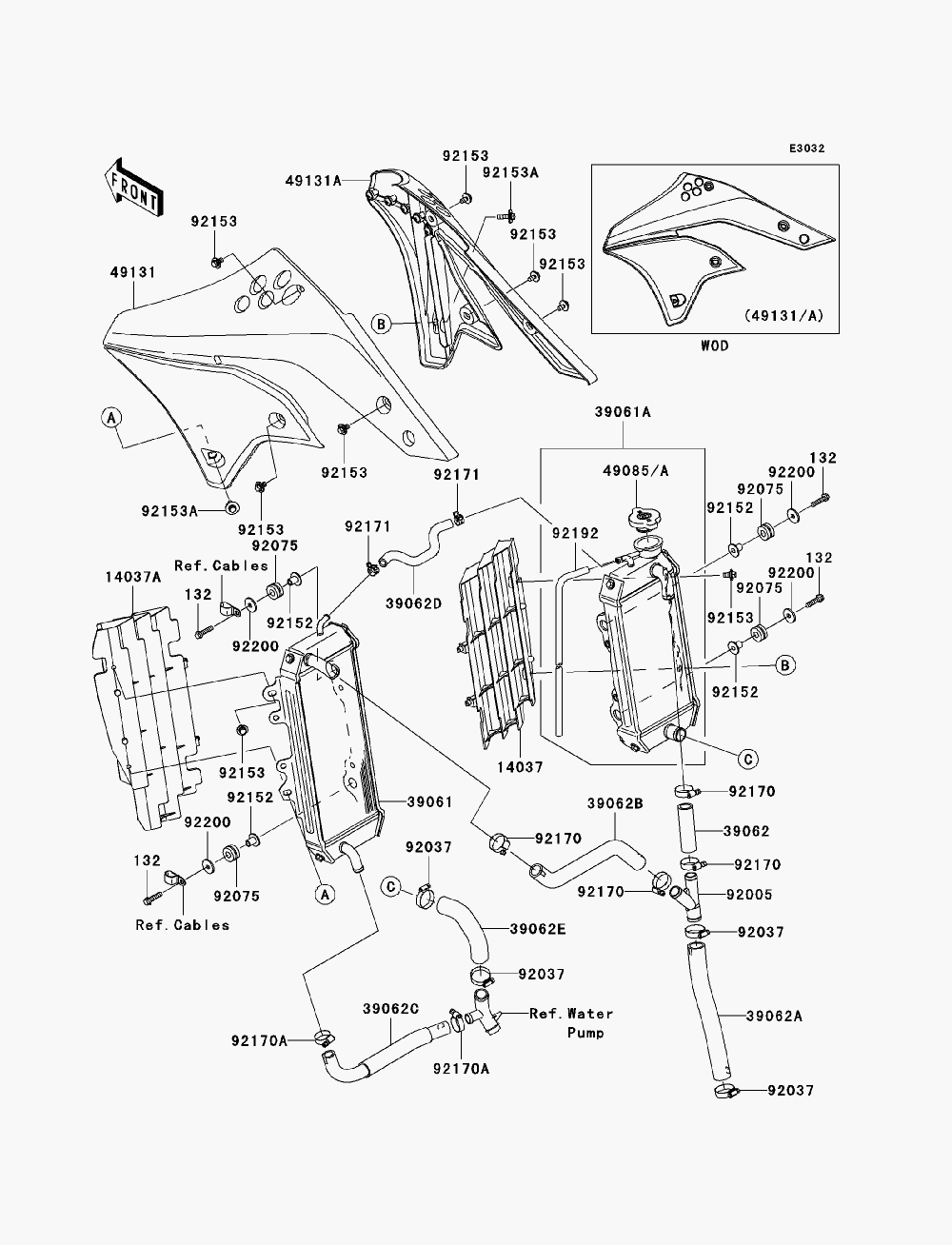

RADIATOR для Kawasaki KX250T (KX250T7F) - 2007 года выпуска

  • №
    Артикул
    Название
  • 132
    132L0625 BOLT-FLANGED-SMALL,6X25
    BOLT-FLANGED-SMALL,6X25
  • 14037
    14037-0058-RZ SCREEN, RIGHT HAND,WHITE (FOR 777)
    SCREEN, RIGHT HAND,WHITE (FOR 777)
  • 14037A
    14037-0063-RZ SCREEN, LEFT HAND,WHITE (FOR 777)
    SCREEN, LEFT HAND,WHITE (FOR 777)
  • 39061
    39061-0054 RADIATOR-ASSY, LEFT HAND
    RADIATOR-ASSY, LEFT HAND
  • 39061A
    39061-0074 RADIATOR-ASSY, RIGHT HAND
    RADIATOR-ASSY, RIGHT HAND
  • 39062
    39062-0091 HOSE-COOLING
    HOSE-COOLING
  • 39062A
    39062-0126 HOSE-COOLING,HEAD-FIT
    HOSE-COOLING,HEAD-FIT
  • 39062B
    39062-0127 HOSE-COOLING,RAD LEFT HAND-FIT
    HOSE-COOLING,RAD LEFT HAND-FIT
  • 39062C
    39062-0129 HOSE-COOLING,RAD LEFT HAND-W/P
    HOSE-COOLING,RAD LEFT HAND-W/P
  • 39062D
    39062-0130 HOSE-COOLING,RAD LEFT HAND-RAD RIGHT HAND
    HOSE-COOLING,RAD LEFT HAND-RAD RIGHT HAND
  • 39062E
    39062-0153 HOSE-COOLING,RAD RIGHT HAND-W/P
    HOSE-COOLING,RAD RIGHT HAND-W/P
  • 49085
    49085-1070 CAP-ASSY-PRESSURE,P1.1
    CAP-ASSY-PRESSURE,P1.1
  • 49085A
    49085-1073 CAP-ASSY-PRESSURE,P1.6 (OPTION)
    CAP-ASSY-PRESSURE,P1.6 (OPTION)
  • 49131
    49131-5095 SHROUD-ENGINE, LEFT HAND
    SHROUD-ENGINE, LEFT HAND
  • 49131A
    49131-5096 SHROUD-ENGINE, RIGHT HAND
    SHROUD-ENGINE, RIGHT HAND
  • 92005
    92005-0065 FITTING
    FITTING
  • 92037
    92037-1589 CLAMP,COOLING HOSE
    CLAMP,COOLING HOSE
  • 92075
    92075-209 DAMPER
    DAMPER
  • 92152
    92152-0379 COLLAR,L=12.6,T=1.6
    COLLAR,L=12.6,T=1.6
  • 92153
    92153-0503 BOLT,6X12
    BOLT,6X12
  • 92153A
    92153-0864 BOLT,6X20
    BOLT,6X20
  • 92170
    92170-1077 CLAMP,COOLING HOSE
    CLAMP,COOLING HOSE
  • 92170A
    92170-1283 CLAMP
    CLAMP
  • 92171
    92171-0372 CLAMP
    CLAMP
  • 92192
    92192-0167 TUBE,6X9X640
    TUBE,6X9X640
  • 92200
    92200-0271 WASHER,6.5X22X2.3
    WASHER,6.5X22X2.3
