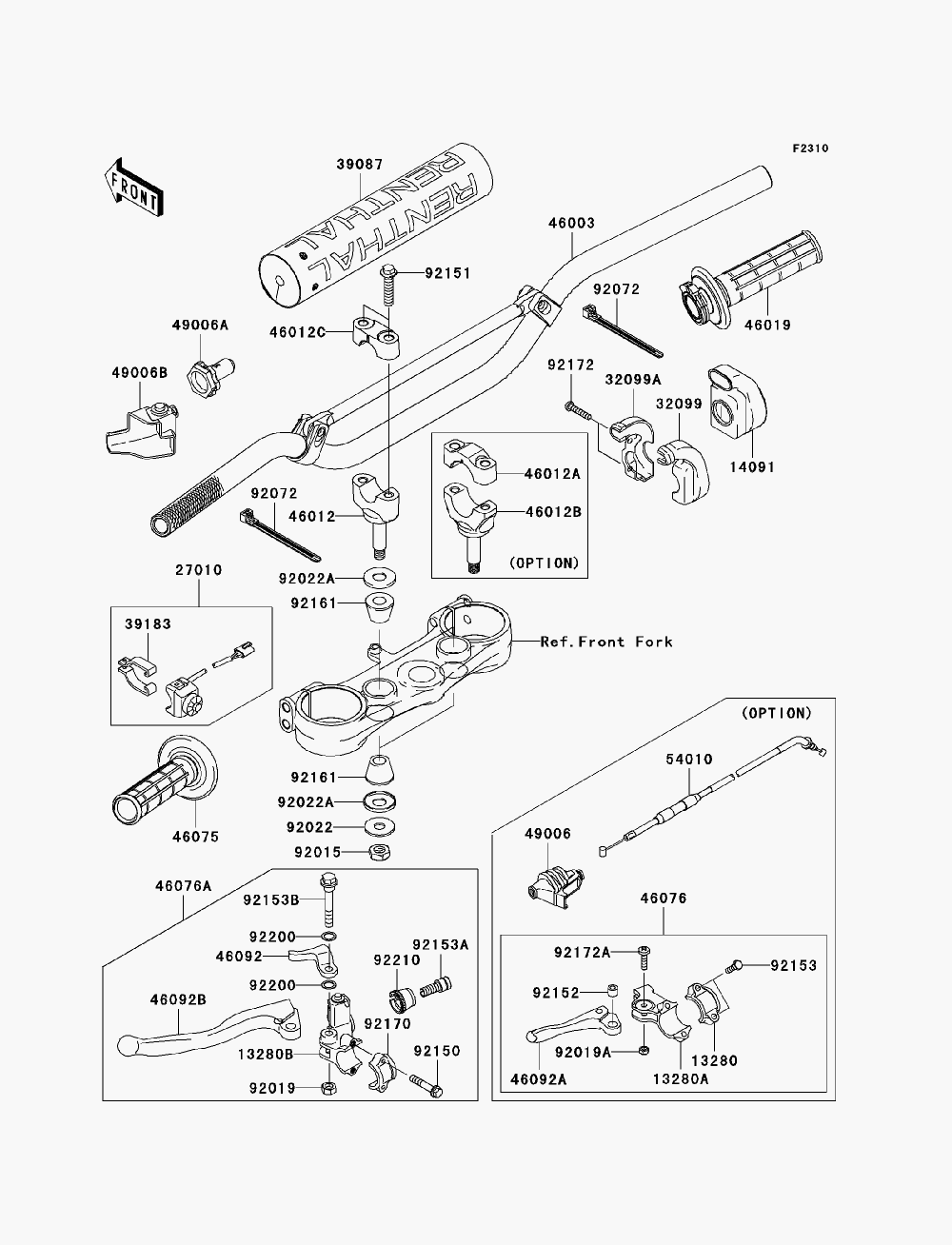

HANDLEBAR для Kawasaki KX250T (KX250T7F) - 2007 года выпуска

  • №
    Артикул
    Название
  • 13280
    13280-0055 HOLDER (OPTION)
    HOLDER (OPTION)
  • 13280A
    13280-0056 HOLDER (OPTION)
    HOLDER (OPTION)
  • 13280B
    13280-0184 HOLDER,CLUTCH LEVER
    HOLDER,CLUTCH LEVER
  • 14091
    14091-0182 COVER,THROTTLE CASE
    COVER,THROTTLE CASE
  • 27010
    27010-0047 SWITCH,ENGINE STOP
    SWITCH,ENGINE STOP
  • 32099
    32099-0002 CASE,THROTTLE, REAR
    CASE,THROTTLE, REAR
  • 32099A
    32099-0003 CASE,THROTTLE, FRONT
    CASE,THROTTLE, FRONT
  • 39087
    39087-0003 PAD-HANDLE
    PAD-HANDLE
  • 39183
    39183-1059 BAND-ASSY,ENGINE STOP SWITCH
    BAND-ASSY,ENGINE STOP SWITCH
  • 46003
    46003-0077 HANDLE
    HANDLE
  • 46012
    46012-0013-10Y HOLDER-HANDLE,LWR,M.M.GOLD (FOR 777)
    HOLDER-HANDLE,LWR,M.M.GOLD (FOR 777)
  • 46012A
    46012-0020-10Y HOLDER-HANDLE,UPP,FAT BAR,GOLD (OPTION) (FOR 777)
    HOLDER-HANDLE,UPP,FAT BAR,GOLD (OPTION) (FOR 777)
  • 46012B
    46012-0021-10Y HOLDER-HANDLE,LWR,FAT BAR,GOLD (OPTION) (FOR 777)
    HOLDER-HANDLE,LWR,FAT BAR,GOLD (OPTION) (FOR 777)
  • 46012C
    46012-0023-10Y HOLDER-HANDLE,UPP,M.M.GOLD (FOR 777)
    HOLDER-HANDLE,UPP,M.M.GOLD (FOR 777)
  • 46019
    46019-0014 GRIP-ASSY,THROTTLE
    GRIP-ASSY,THROTTLE
  • 46075
    46075-0044 GRIP, LEFT HAND
    GRIP, LEFT HAND
  • 46076
    46076-0009 LEVER-ASSY-GRIP,MANUAL DECOMP (OPTION)
    LEVER-ASSY-GRIP,MANUAL DECOMP (OPTION)
  • 46076A
    46076-0034 LEVER-ASSY-GRIP,CLUTCH & STARTER
    LEVER-ASSY-GRIP,CLUTCH & STARTER
  • 46092
    46092-0001 LEVER-GRIP,STARTER
    LEVER-GRIP,STARTER
  • 46092A
    46092-0004 LEVER-GRIP (OPTION)
    LEVER-GRIP (OPTION)
  • 46092B
    46092-0007 LEVER-GRIP,CLUTCH
    LEVER-GRIP,CLUTCH
  • 49006
    49006-0011 BOOT (OPTION)
    BOOT (OPTION)
  • 49006A
    49006-0027 BOOT,CLUTCH CABLE
    BOOT,CLUTCH CABLE
  • 49006B
    49006-0033 BOOT,CLUTCH LEVER
    BOOT,CLUTCH LEVER
  • 54010
    54010-0019 CABLE,MANUAL DECOMP (OPTION)
    CABLE,MANUAL DECOMP (OPTION)
  • 92015
    92015-1962 NUT,LOCK,10MM
    NUT,LOCK,10MM
  • 92019
    92019-008 NUT,LOCK,6MM
    NUT,LOCK,6MM
  • 92019A
    92019-014 NUT,LOCK,5MM (OPTION)
    NUT,LOCK,5MM (OPTION)
  • 92022
    92022-1088 WASHER,10.2X28X2
    WASHER,10.2X28X2
  • 92022A
    92022-1737 WASHER
    WASHER
  • 92072
    92072-0055 BAND,L=100
    BAND,L=100
  • 92150
    92150-1474 BOLT
    BOLT
  • 92151
    92151-1537 BOLT,FLANGED,8X35
    BOLT,FLANGED,8X35
  • 92152
    92152-0135 COLLAR (OPTION)
    COLLAR (OPTION)
  • 92153
    92153-0617 BOLT,5X16 (OPTION)
    BOLT,5X16 (OPTION)
  • 92153A
    92153-0773 BOLT,BOLT ADJUSTING
    BOLT,BOLT ADJUSTING
  • 92153B
    92153-1506 BOLT,6MM
    BOLT,6MM
  • 92161
    92161-0113 DAMPER,HANDLE HOLDER
    DAMPER,HANDLE HOLDER
  • 92170
    92170-1226 CLAMP, LEVER HOLDER
    CLAMP, LEVER HOLDER
  • 92172
    92172-0069 SCREW,5X20
    SCREW,5X20
  • 92172A
    92172-0125 SCREW,5X20 (OPTION)
    SCREW,5X20 (OPTION)
  • 92200
    92200-0300 WASHER
    WASHER
  • 92210
    92210-0167 NUT,BOLT WIRE ADJUSTING
    NUT,BOLT WIRE ADJUSTING
