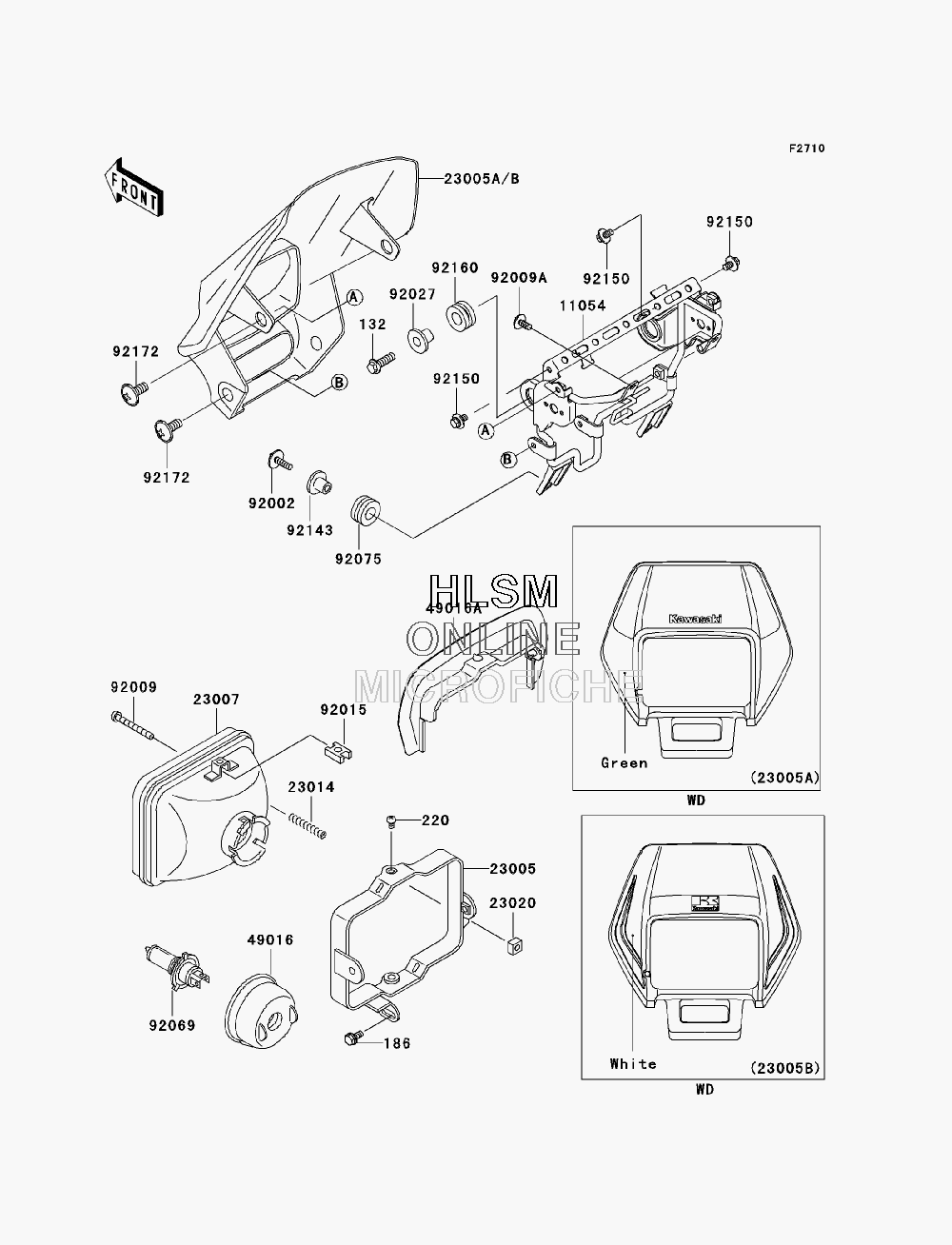

HEADLIGHT(S) для Kawasaki KLX250S (KLX250H7F) - 2007 года выпуска
-
№АртикулНазвание
-
132132G0825 BOLT-FLANGED-SMALL,8X25BOLT-FLANGED-SMALL,8X25
-
186186B0614 BOLT-UPSET-WP,6X14BOLT-UPSET-WP,6X14
-
220220B0508 SCREW-PAN-CROS,5X8SCREW-PAN-CROS,5X8
-
1105411054-0054 BRACKET,HEAD LAMPBRACKET,HEAD LAMP
-
2300523005-1052 BODY-COMP-HEAD LAMPBODY-COMP-HEAD LAMP
-
23005B23005-5060-266 BODY-COMP-HEAD LAMP,S.WHITEBODY-COMP-HEAD LAMP,S.WHITE
-
2300723007-1372 LENS-COMP,HEAD LAMPLENS-COMP,HEAD LAMP
-
2301423014-005 SPRING,FOCUS ADJUSTINGSPRING,FOCUS ADJUSTING
-
2302023020-018 NUT,4MM,FOCUS ADJUSTNUT,4MM,FOCUS ADJUST
-
4901649016-1037 COVER-SEAL,SOCKETCOVER-SEAL,SOCKET
-
49016A49016-1160 COVER-SEAL,HEAD LAMPCOVER-SEAL,HEAD LAMP
-
9200292002-1262 BOLT,UPSET-WP,6X22BOLT,UPSET-WP,6X22
-
9200992009-1065 SCREW,4X48SCREW,4X48
-
92009A92009-1286 SCREW,6X10,WHITESCREW,6X10,WHITE
-
9201592015-1354 NUT,5MMNUT,5MM
-
9202792027-1134 COLLAR,L=14COLLAR,L=14
-
9206992069-1002 BULB,12V 60/55W,H4BULB,12V 60/55W,H4
-
9207592075-209 DAMPERDAMPER
-
9214392143-1353 COLLARCOLLAR
-
9215092150-1435 BOLT,6X12BOLT,6X12
-
9216092160-1007 DAMPERDAMPER
-
9217292172-0004 SCREW,6X14SCREW,6X14
