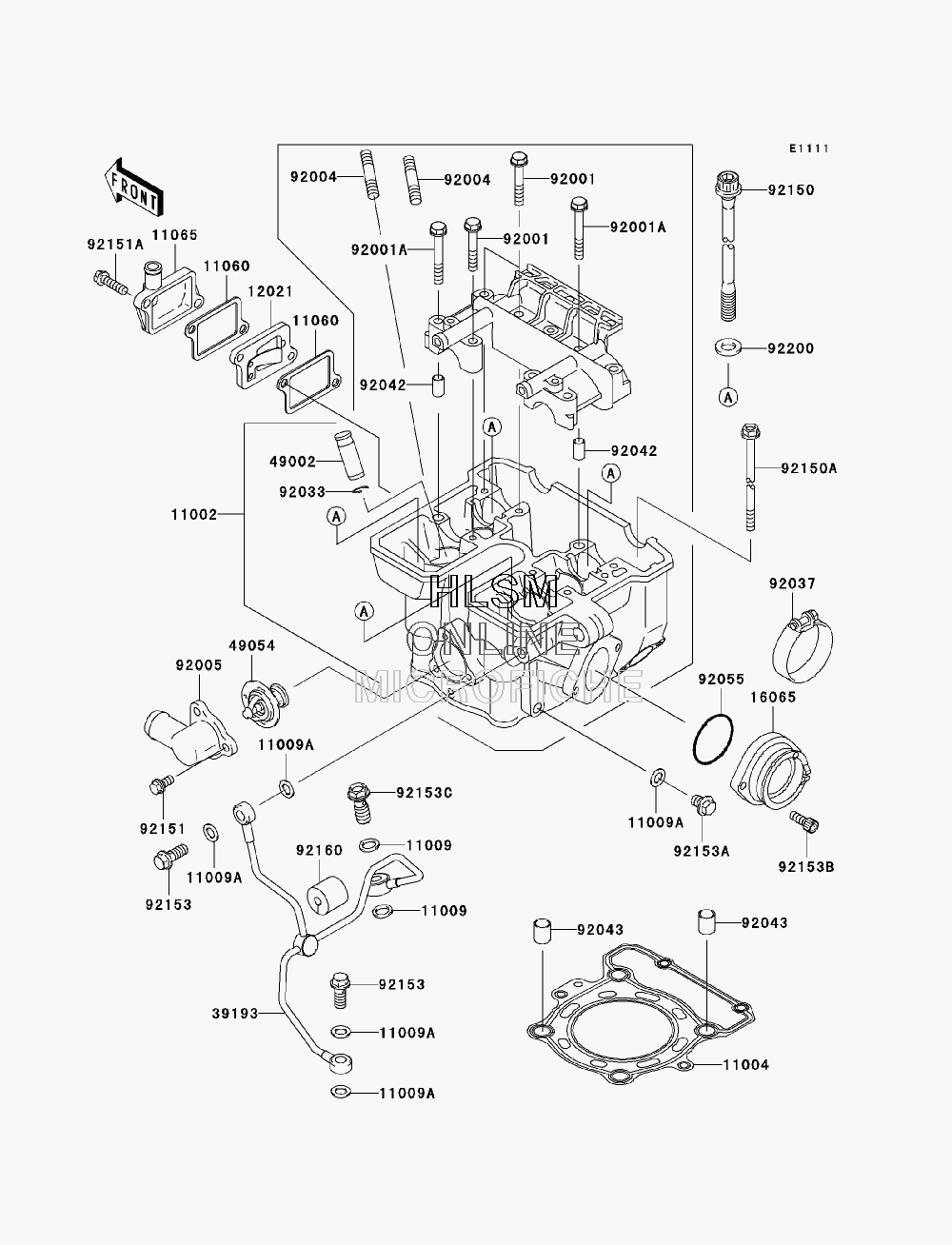

CYLINDER HEAD для Kawasaki KLX250S (KLX250H7F) - 2007 года выпуска`
-
№АртикулНазвание
-
1100411004-1249 GASKET-HEADGASKET-HEAD
-
1100911009-1105 GASKET,10X14.5X1.5GASKET,10X14.5X1.5
-
11009A11009-1344 GASKET,8.2X14X1.0GASKET,8.2X14X1.0
-
1106011060-1886 GASKET,AIR SUCTION VALVEGASKET,AIR SUCTION VALVE
-
1106511065-1190 CAPCAP
-
1202112021-1115 VALVE-ASSY-REEDVALVE-ASSY-REED
-
1606516065-1283 HOLDER-CARBURETORHOLDER-CARBURETOR
-
3919339193-1018 PIPE-OILPIPE-OIL
-
4900249002-1126 GUIDE-VALVEGUIDE-VALVE
-
4905449054-1053 THERMOSTATTHERMOSTAT
-
9200192001-1105 BOLT,FLANGED,6X38BOLT,FLANGED,6X38
-
92001A92001-1872 BOLT,6X46BOLT,6X46
-
9200492004-1217 STUD,8X22STUD,8X22
-
9200592005-1258 FITTINGFITTING
-
9203392033-1247 RING-SNAPRING-SNAP
-
9203792037-1304 CLAMP,ID=53,BLACKCLAMP,ID=53,BLACK
-
9204292042-007 PIN,DOWEL,6.3X8X14PIN,DOWEL,6.3X8X14
-
9204392043-4009 PIN,10.1X12X14PIN,10.1X12X14
-
9205592055-1255 RING-ORING-O
-
9215092150-1368 BOLT,10X165BOLT,10X165
-
92150A92150-1552 BOLT,6X135BOLT,6X135
-
9215192151-1133 BOLT,6X12BOLT,6X12
-
92151A92151-1937 BOLT,6X22BOLT,6X22
-
9215392153-0651 BOLT,BANJO,8X20BOLT,BANJO,8X20
-
92153A92153-1342 BOLT,FLANGED,8X10BOLT,FLANGED,8X10
-
92153B92153-1344 BOLT,SOCKET,6X16BOLT,SOCKET,6X16
-
92153C92153-1345 BOLT,BANJO,10X23BOLT,BANJO,10X23
-
9216092160-1523 DAMPER,6.3X15X14DAMPER,6.3X15X14
-
9220092200-1042 WASHER,10.5X19X2.3WASHER,10.5X19X2.3
