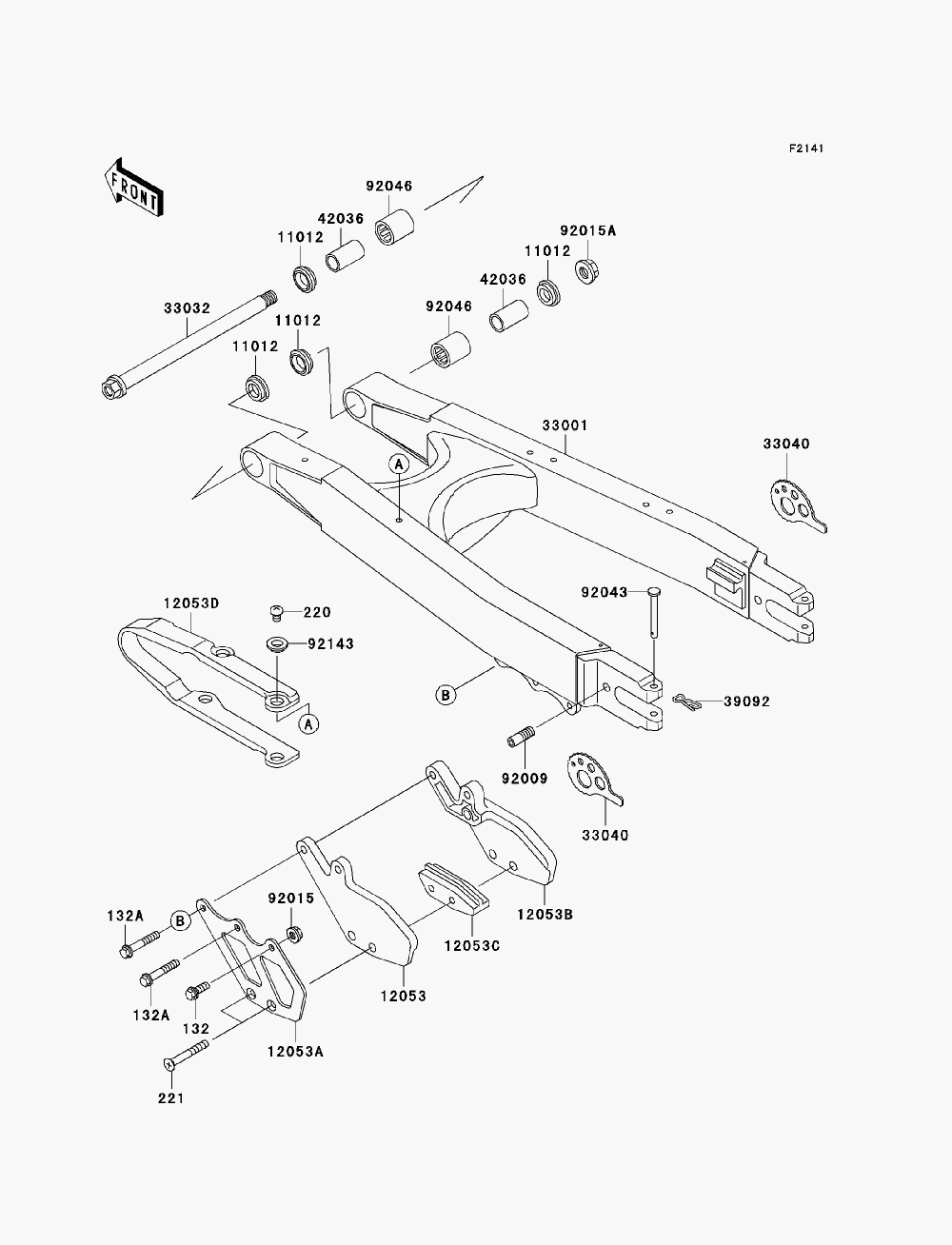

SUSPENSION - SWINGARM для Kawasaki KLX 300R - 2006 года выпуска

  • №
    Артикул
    Название
  • 132
    132G0616 BOLT-FLANGED-SMALL,6X16
    BOLT-FLANGED-SMALL,6X16
  • 132A
    132G0635 BOLT-FLANGED-SMALL,6X35
    BOLT-FLANGED-SMALL,6X35
  • 220
    220B0608 SCREW-PAN-CROS,6X8
    SCREW-PAN-CROS,6X8
  • 221
    221B0645 SCREW-CSK-CROS,6X45
    SCREW-CSK-CROS,6X45
  • 11012
    11012-1259 CAP,SWING ARM
    CAP,SWING ARM
  • 12053
    12053-1234 GUIDE-CHAIN, REAR,INSIDE
    GUIDE-CHAIN, REAR,INSIDE
  • 12053A
    12053-1235 GUIDE-CHAIN, REAR,OUTSIDE
    GUIDE-CHAIN, REAR,OUTSIDE
  • 12053B
    12053-1236 GUIDE-CHAIN, REAR,OUTSIDE
    GUIDE-CHAIN, REAR,OUTSIDE
  • 12053C
    12053-1270 GUIDE-CHAIN,DRIVE, REAR,INSIDE
    GUIDE-CHAIN,DRIVE, REAR,INSIDE
  • 12053D
    12053-1328 GUIDE-CHAIN,DRIVE, FRONT
    GUIDE-CHAIN,DRIVE, FRONT
  • 33001
    33001-1508-458 ARM-COMP-SWING,P.SILVER
    ARM-COMP-SWING,P.SILVER
  • 33032
    33032-0006 SHAFT-SWING ARM
    SHAFT-SWING ARM
  • 33040
    33040-1113 ADJUSTER-CHAIN
    ADJUSTER-CHAIN
  • 39092
    39092-0001 PIN-HAIR
    PIN-HAIR
  • 42036
    42036-1064 SLEEVE,SWING ARM
    SLEEVE,SWING ARM
  • 92009
    92009-1686 SCREW,SET,10X29
    SCREW,SET,10X29
  • 92015
    92015-1078 NUT,FLANGED,6MM
    NUT,FLANGED,6MM
  • 92015A
    92015-1407 NUT,14MM
    NUT,14MM
  • 92043
    92043-1590 PIN,6X45
    PIN,6X45
  • 92046
    92046-1128 BEARING-NEEDLE,TA2030Z
    BEARING-NEEDLE,TA2030Z
  • 92143
    92143-1156 COLLAR
    COLLAR
