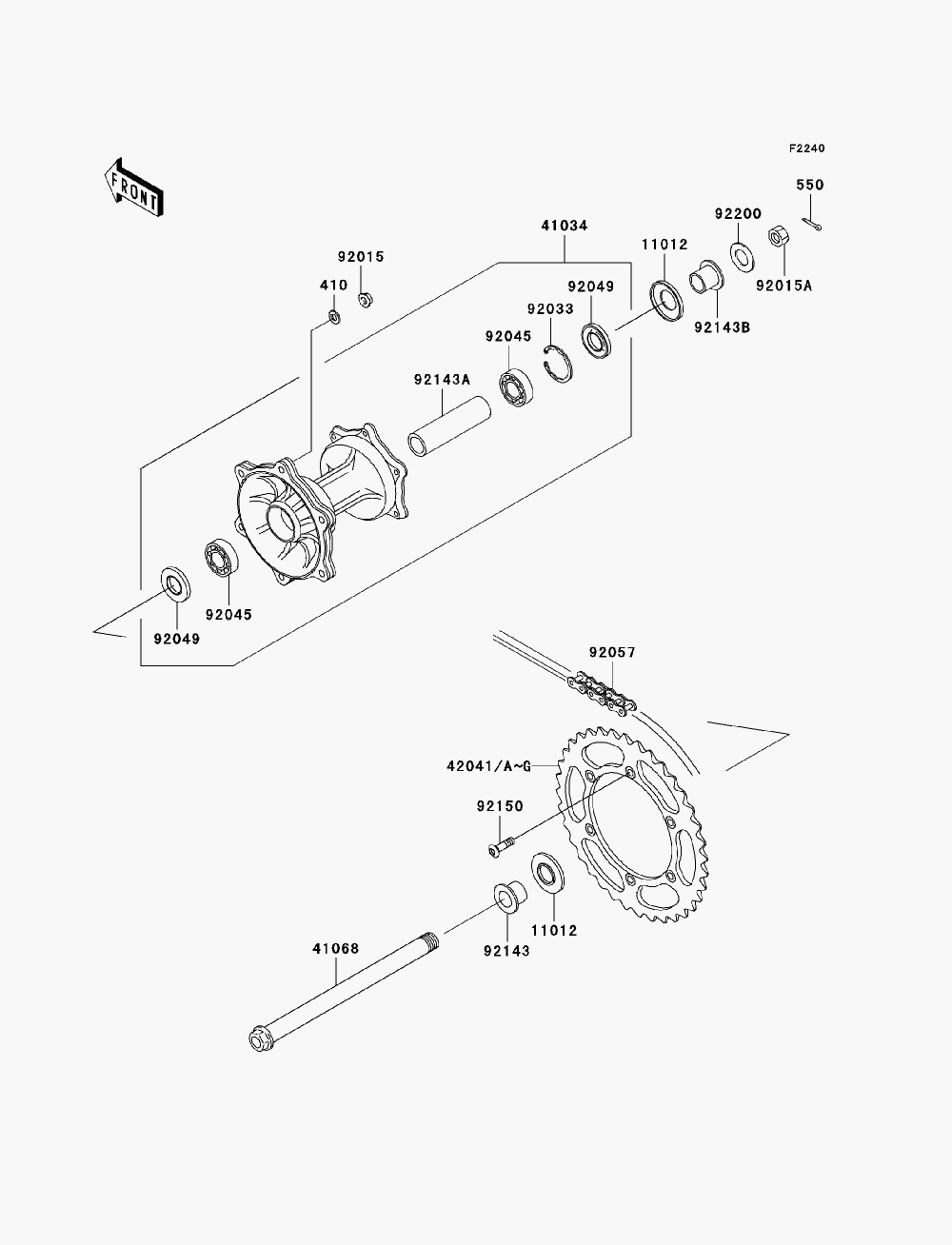

REAR HUB для Kawasaki KLX 300R - 2006 года выпуска

  • №
    Артикул
    Название
  • 410
    410B0800 WASHER-PLAIN-SMALL,8MM
    WASHER-PLAIN-SMALL,8MM
  • 550
    550D3025 PIN-COTTER,3.0X25
    PIN-COTTER,3.0X25
  • 11012
    11012-1581 CAP,AXLE
    CAP,AXLE
  • 41034
    41034-1216 DRUM-ASSY, REAR BRAKE
    DRUM-ASSY, REAR BRAKE
  • 41068
    41068-0014 AXLE, REAR
    AXLE, REAR
  • 42041
    42041-1381 SPROCKET-HUB,46T (OPTION)
    SPROCKET-HUB,46T (OPTION)
  • 42041A
    42041-1382 SPROCKET-HUB,47T (OPTION)
    SPROCKET-HUB,47T (OPTION)
  • 42041B
    42041-1383 SPROCKET-HUB,48T (OPTION)
    SPROCKET-HUB,48T (OPTION)
  • 42041C
    42041-1384 SPROCKET-HUB,49T (OPTION)
    SPROCKET-HUB,49T (OPTION)
  • 42041D
    42041-1408 SPROCKET-HUB,50T
    SPROCKET-HUB,50T
  • 42041E
    42041-1413 SPROCKET-HUB,45T (OPTION)
    SPROCKET-HUB,45T (OPTION)
  • 42041F
    42041-1428 SPROCKET-HUB,51T (OPTION)
    SPROCKET-HUB,51T (OPTION)
  • 42041G
    42041-1429 SPROCKET-HUB,52T (OPTION)
    SPROCKET-HUB,52T (OPTION)
  • 92015
    92015-1432 NUT,8MM
    NUT,8MM
  • 92015A
    92015-1770 NUT,LOCK,20MM
    NUT,LOCK,20MM
  • 92033
    92033-1041 RING-SNAP,42MM
    RING-SNAP,42MM
  • 92045
    92045-1239 BEARING-BALL,6004X8JRLLX2/3A
    BEARING-BALL,6004X8JRLLX2/3A
  • 92049
    92049-1203 SEAL-OIL,BJNC2 25425
    SEAL-OIL,BJNC2 25425
  • 92057
    92057-1410 CHAIN,DID520VL2X110L,ENDLESS
    CHAIN,DID520VL2X110L,ENDLESS
  • 92143
    92143-1259 COLLAR, REAR AXLE,L=22
    COLLAR, REAR AXLE,L=22
  • 92143A
    92143-1402 COLLAR, REAR BRAKE DRUM,L=105
    COLLAR, REAR BRAKE DRUM,L=105
  • 92143B
    92143-1840 COLLAR, REAR AXLE, RIGHT HAND,L=20
    COLLAR, REAR AXLE, RIGHT HAND,L=20
  • 92150
    92150-1978 BOLT,SOCKET,8X28
    BOLT,SOCKET,8X28
  • 92200
    92200-1146 WASHER,20.2X36X2
    WASHER,20.2X36X2
