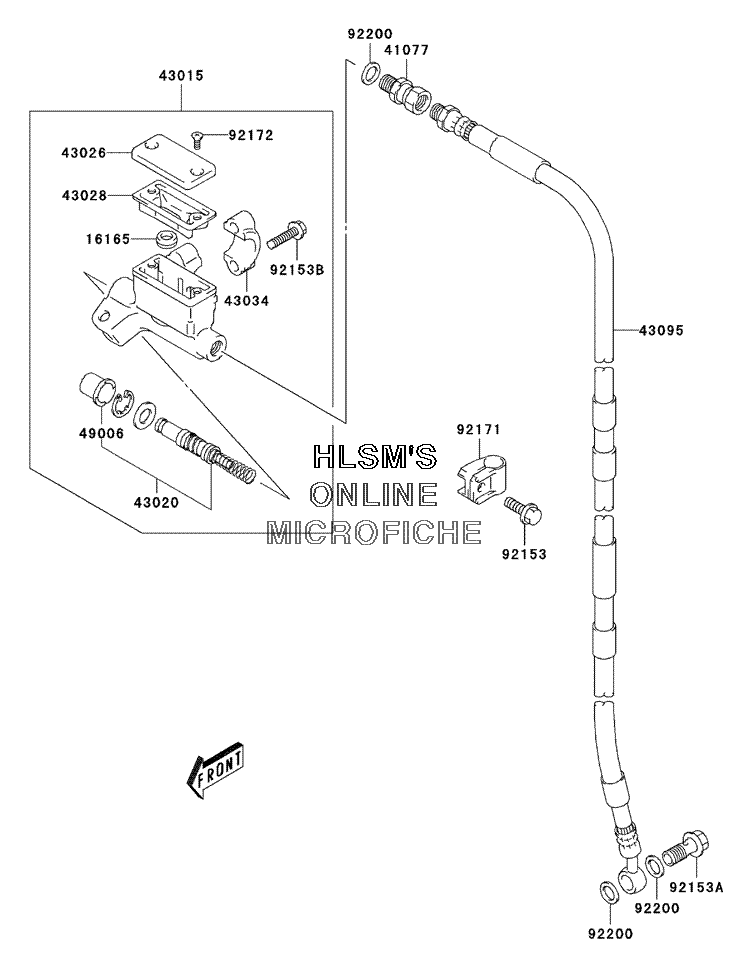

BRAKE - MASTER CYLINDER - FRONT для Kawasaki KLX 125L - 2006 года выпуска`
-
№АртикулНазвание
-
1616516165-S005 SEPARATORSEPARATOR
-
4107741077-S002 ADAPTERADAPTER
-
4301543015-S007 CYLINDER-ASSY.-MASTERCYLINDER-ASSY.-MASTER
-
4302043020-S003 PISTON-COMP-BRAKEPISTON-COMP-BRAKE
-
4302643026-S008 CAP-BRAKECAP-BRAKE
-
4302843028-S006 DIAPHRAGMDIAPHRAGM
-
4303443034-S003 HOLDER-BRAKEHOLDER-BRAKE
-
4309543095-S006 HOSE-BRAKEHOSE-BRAKE
-
4900649006-S004 BOOTBOOT
-
9215392153-S002 BOLTBOLT
-
92153A92153-S053 BOLTBOLT
-
92153B92153-S172 BOLTBOLT
-
9217192171-S057 CLAMP, FRONT BRAKE HOSECLAMP, FRONT BRAKE HOSE
-
9217292172-S054 SCREW, RESERVOIR CAPSCREW, RESERVOIR CAP
-
9220092200-S014 WASHER, 10X15X1.5WASHER, 10X15X1.5
