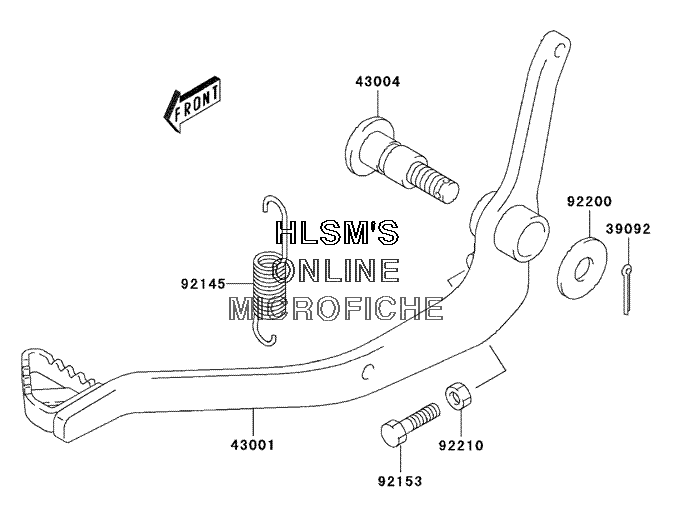

BRAKE PEDAL для Kawasaki KLX 125L - 2006 года выпуска
-
№АртикулНазвание
-
3909239092-S005 PIN-HAIR, COTTERPIN-HAIR, COTTER
-
4300143001-S001 LEVER-BRAKELEVER-BRAKE
-
4300443004-S001 SHAFT-BRAKESHAFT-BRAKE
-
9214592145-S048 SPRING, BRAKE PEDAL RETURNSPRING, BRAKE PEDAL RETURN
-
9215392153-S182 BOLTBOLT
-
9220092200-S067 WASHERWASHER
-
9221092210-S001 NUTNUT
