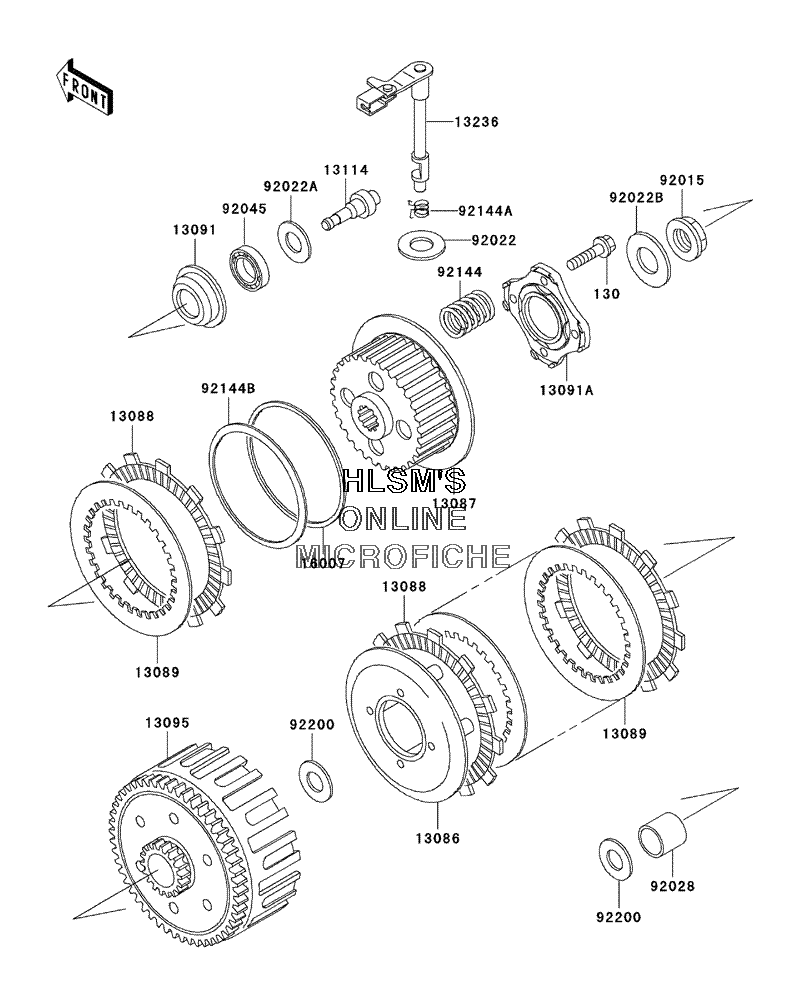

CLUTCH для Kawasaki KDX 220R - 2005 года выпуска`
-
№АртикулНазвание
-
130130Y0625 BOLT, FLANGEDBOLT, FLANGED
-
1308613086-1069 WHEEL, CLUTCHWHEEL, CLUTCH
-
1308713087-1158 HUB, CLUTCHHUB, CLUTCH
-
1308813088-1085 PLATE, FRICTIONPLATE, FRICTION
-
1308913089-1076 PLATE, CLUTCHPLATE, CLUTCH
-
1309113091-1712 HOLDER, CLUTCH PUSHERHOLDER, CLUTCH PUSHER
-
13091A13091-1872 HOLDER, CLUTCH SPRINGHOLDER, CLUTCH SPRING
-
1309513095-1287 HOUSING, COMP, CLUTCHHOUSING, COMP, CLUTCH
-
1311413114-1067 PUSHER, CLUTCHPUSHER, CLUTCH
-
1323613236-1264 LEVER, COMP, CLUTCH RELEASELEVER, COMP, CLUTCH RELEASE
-
1600716007-1162 SEAT, SPRINGSEAT, SPRING
-
9201592015-1581 NUT, 16MMNUT, 16MM
-
9202292022-072 WASHER, 12.5X21X1.2WASHER, 12.5X21X1.2
-
92022A92022-1181 WASHER, 10.2X14.5X1.0WASHER, 10.2X14.5X1.0
-
92022B92022-1356 WASHER, 16.3X29X1.75WASHER, 16.3X29X1.75
-
9202892028-1388 BUSHING, 20X25X26.85BUSHING, 20X25X26.85
-
9204592045-1225 BEARING, BALL, 6000BEARING, BALL, 6000
-
9214492144-1160 SPRING, CLUTCHSPRING, CLUTCH
-
92144A92144-1287 SPRING, CLUTCH RELEASESPRING, CLUTCH RELEASE
-
92144B92144-1522 SPRINGSPRING
-
9220092200-1238 WASHER, 20.3X30X2.3WASHER, 20.3X30X2.3
