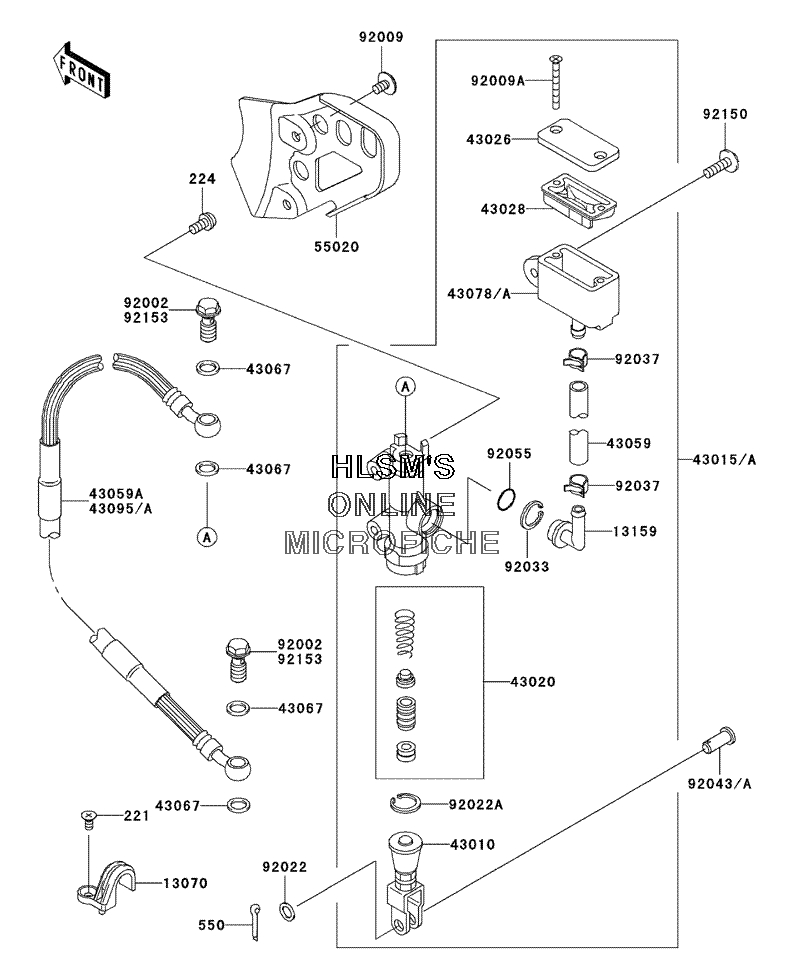

BRAKE - MASTER CYLINDER - REAR для Kawasaki KDX 220R - 2005 года выпуска

№

Артикул

Название
221

221B0510 SCREW, CSK, CROS

SCREW, CSK, CROS
224

224B0614 SCREW, PAN, WP, CROS

SCREW, PAN, WP, CROS
550

550D2015 PIN, COTTER, 2.0X15

PIN, COTTER, 2.0X15
13070

13070-1275 GUIDE, HOSE

GUIDE, HOSE
13159

13159-1056 CONNECTOR

CONNECTOR
43010

43010-1068 ROD, ASSY, BRAKE

ROD, ASSY, BRAKE
43015A

43015-1711 CYLINDER, ASSY, MASTER, REAR

CYLINDER, ASSY, MASTER, REAR
43020

43020-1094 PISTON, COMP, BRAKE

PISTON, COMP, BRAKE
43026

43026-1075 CAP, BRAKE

CAP, BRAKE
43028

43028-1067 DIAPHRAGM

DIAPHRAGM
43059

43059-1561 HOSE, BRAKE

HOSE, BRAKE
43067

43067-001 WASHER, 10.5X15X1.5

WASHER, 10.5X15X1.5
43078A

43078-1189 RESERVOIR

RESERVOIR
43095A

43095-0075 HOSE, BRAKE, REAR

HOSE, BRAKE, REAR
55020

55020-1487 GUARD, REAR M/CYLINDER AND OIL TANK

GUARD, REAR M/CYLINDER AND OIL TANK
92009

92009-1286 SCREW, 6X10 (WHITE)

SCREW, 6X10 (WHITE)
92009A

92009-1596 SCREW, 4X40

SCREW, 4X40
92022

92022-1028 WASHER, 8.5X13X1

WASHER, 8.5X13X1
92022A

92022-1601 WASHER, CIRCRIP

WASHER, CIRCRIP
92033

92033-1186 RING, SNAP, 20.5MM

RING, SNAP, 20.5MM
92037

92037-1710 CLAMP

CLAMP
92043

92043-0004 PIN

PIN
92055

92055-1251 O-RING, MASTER CYLINDER

O-RING, MASTER CYLINDER
92150

92150-1339 BOLT, 6X20

BOLT, 6X20
92153

92153-0627 BOLT, OIL, L=23

BOLT, OIL, L=23
