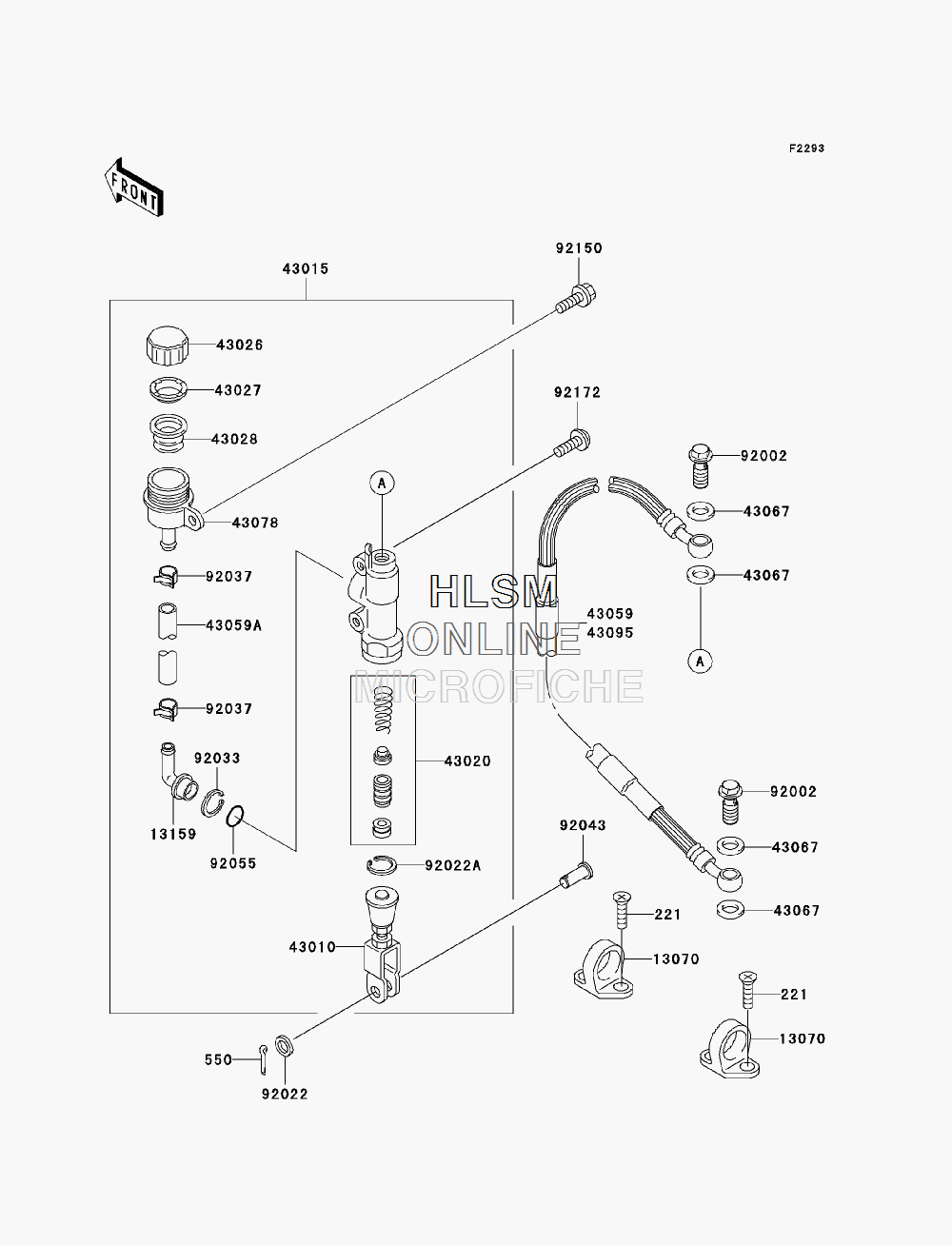

BRAKE - MASTER CYLINDER - REAR для Kawasaki KX 85 - 2004 года выпуска`
-
№АртикулНазвание
-
221221B0510 SCREW-CSK-CROSSCREW-CSK-CROS
-
550550D2015 PIN-COTTER,2.0X15PIN-COTTER,2.0X15
-
1307013070-1144 GUIDE,HOSEGUIDE,HOSE
-
1315913159-1056 CONNECTORCONNECTOR
-
4301043010-1079 ROD-ASSY-BRAKEROD-ASSY-BRAKE
-
4301543015-1606 CYLINDER-ASSY-MASTER, REARCYLINDER-ASSY-MASTER, REAR
-
4302043020-1094 PISTON-COMP-BRAKEPISTON-COMP-BRAKE
-
4302643026-1058 CAP-BRAKECAP-BRAKE
-
4302743027-1052 PLATE-DIAPHRAGMPLATE-DIAPHRAGM
-
4302843028-1060 DIAPHRAGMDIAPHRAGM
-
43059A43059-1670 HOSE-BRAKE, REAR MASTER CYLINDERHOSE-BRAKE, REAR MASTER CYLINDER
-
4306743067-001 WASHER,10.5X15X1.5WASHER,10.5X15X1.5
-
4307843078-1068 RESERVOIRRESERVOIR
-
4309543095-1233 HOSE-BRAKE, REAR,L=542HOSE-BRAKE, REAR,L=542
-
9200292002-1888 BOLT,OIL,L=23BOLT,OIL,L=23
-
9202292022-1028 WASHER,8.5X13X1WASHER,8.5X13X1
-
92022A92022-1601 WASHER,CIRCRIPWASHER,CIRCRIP
-
9203392033-1186 RING-SNAP,20.5MMRING-SNAP,20.5MM
-
9203792037-1710 CLAMPCLAMP
-
9204392043-0004 PINPIN
-
9205592055-1251 RING-O,MASTER CYLINDERRING-O,MASTER CYLINDER
-
9215092150-1340 BOLT,6X14BOLT,6X14
-
9217292172-0107 SCREW,6X14SCREW,6X14
