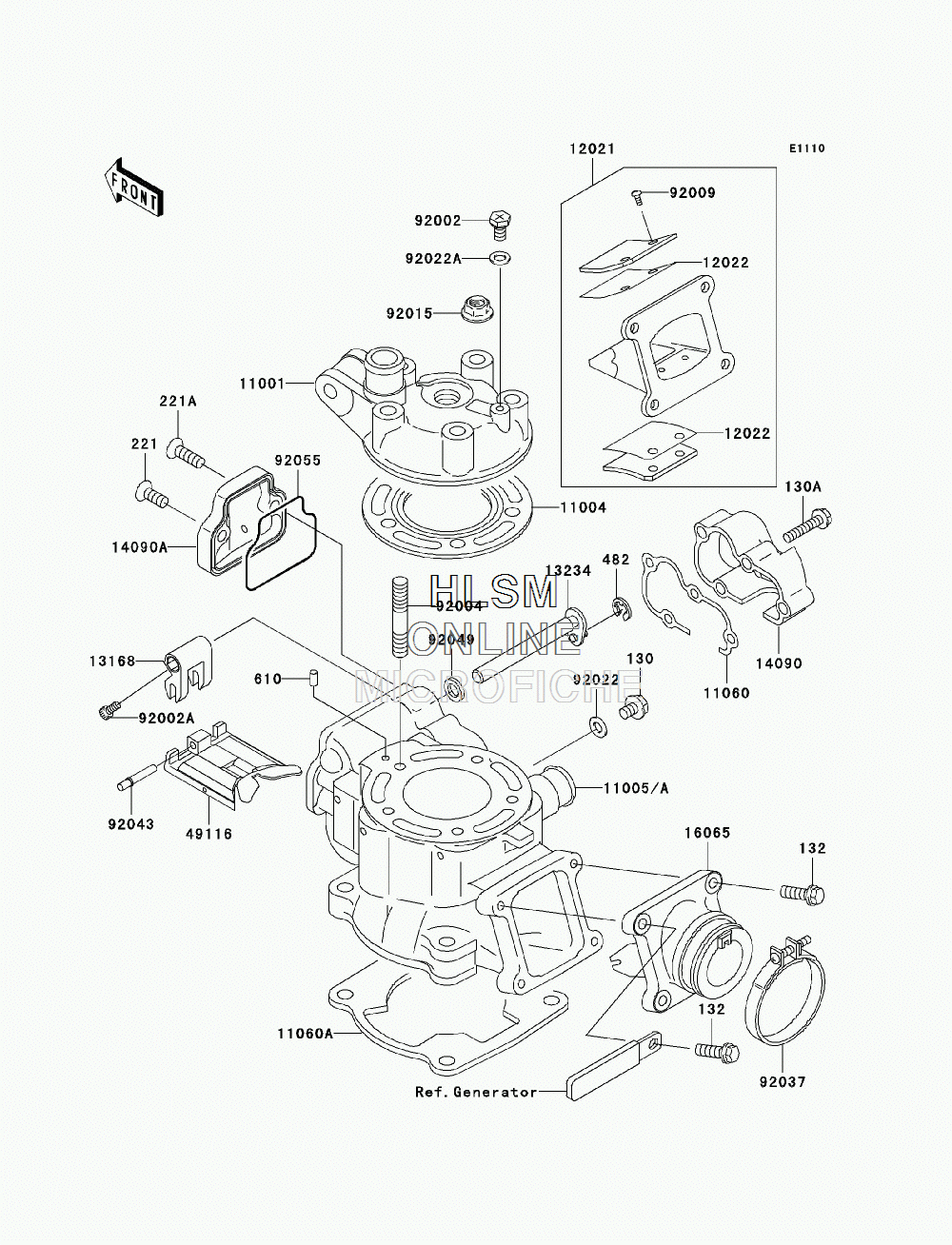

CYLINDER HEAD W/CYLINDER для Kawasaki KX 85 - 2004 года выпуска`
-
№АртикулНазвание
-
130130B0608 BOLT-FLANGED,6X8BOLT-FLANGED,6X8
-
130A130G0525 BOLT-FLANGEDBOLT-FLANGED
-
132132G0620 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
221221B0616 SCREW-CSK-CROS,6X16SCREW-CSK-CROS,6X16
-
221A221B0620 SCREW-CSK-CROS,6X20SCREW-CSK-CROS,6X20
-
482482J5000 CIRCLIP-TYPE-ECIRCLIP-TYPE-E
-
610610A0408 ROLLER,4X8ROLLER,4X8
-
1100111001-1539 HEAD-CYLINDERHEAD-CYLINDER
-
1100411004-1360 GASKET-HEADGASKET-HEAD
-
11005A11005-1974 CYLINDER-ENGINECYLINDER-ENGINE
-
1106011060-1778 GASKET,GOVERNOR COVERGASKET,GOVERNOR COVER
-
11060A11060-1779 GASKET,CYLINDER BASEGASKET,CYLINDER BASE
-
1202112021-1123 VALVE-ASSY-REEDVALVE-ASSY-REED
-
1202212022-1084 VALVE-REEDVALVE-REED
-
1316813168-1499 LEVER,MAIN VALVELEVER,MAIN VALVE
-
1323413234-1105 SHAFT-COMPSHAFT-COMP
-
1409014090-1811 COVERCOVER
-
14090A14090-1812 COVERCOVER
-
1606516065-1372 HOLDER-CARBURETORHOLDER-CARBURETOR
-
4911649116-1181 VALVE-ASSYVALVE-ASSY
-
9200292002-1222 BOLT,6X10BOLT,6X10
-
92002A92002-1403 BOLT,SOCKET,4X8BOLT,SOCKET,4X8
-
9200492004-1253 STUD,8X32STUD,8X32
-
9200992009-1014 SCREW, REED VALVESCREW, REED VALVE
-
9201592015-1143 NUT,8MMNUT,8MM
-
9202292022-077 WASHER,6.1X12X1WASHER,6.1X12X1
-
92022A92022-304 WASHER,6.2X11X1WASHER,6.2X11X1
-
9203792037-1843 CLAMPCLAMP
-
9204392043-1470 PIN,MAIN VALVEPIN,MAIN VALVE
-
9204992049-1238 SEAL-OIL,SD088144SEAL-OIL,SD088144
-
9205592055-1566 RING-ORING-O
