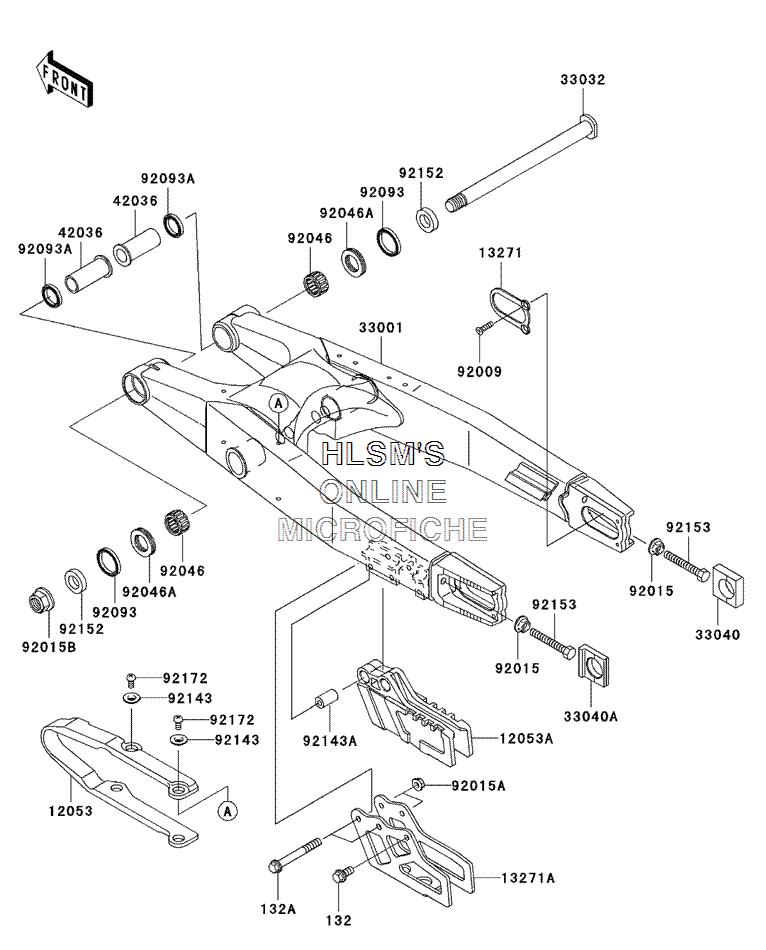

SUSPENSION - SWINGARM для Kawasaki KX 125 - 2004 года выпуска

  • №
    Артикул
    Название
  • 132
    132G0612 BOLT, FLANGED, SMALL
    BOLT, FLANGED, SMALL
  • 132A
    132G0650 BOLT, FLANGED, SMALL
    BOLT, FLANGED, SMALL
  • 12053
    12053-0020 GUIDE, CHAIN, DRIVE, FRONT
    GUIDE, CHAIN, DRIVE, FRONT
  • 12053A
    12053-1468 GUIDE, CHAIN
    GUIDE, CHAIN
  • 13271
    13271-1833 PLATE, AXLE
    PLATE, AXLE
  • 13271A
    13271-1834 PLATE, CHAIN GUIDE
    PLATE, CHAIN GUIDE
  • 33001
    33001-0024-CE ARM, COMP, SWING (SILVER)
    ARM, COMP, SWING (SILVER)
  • 33032
    33032-1189 SHAFT, SWING ARM
    SHAFT, SWING ARM
  • 33040
    33040-0013 ADJUSTER, CHAIN (RIGHT)
    ADJUSTER, CHAIN (RIGHT)
  • 33040A
    33040-1189 ADJUSTER, CHAIN (LEFT)
    ADJUSTER, CHAIN (LEFT)
  • 42036
    42036-1326 SLEEVE, SWING ARM, L=54
    SLEEVE, SWING ARM, L=54
  • 92009
    92009-1828 SCREW, 5X10
    SCREW, 5X10
  • 92015
    92015-1014 NUT, FLANGED, 8MM
    NUT, FLANGED, 8MM
  • 92015A
    92015-1078 NUT, FLANGED, 6MM
    NUT, FLANGED, 6MM
  • 92015B
    92015-1316 NUT, FLANGED, 16MM
    NUT, FLANGED, 16MM
  • 92046
    92046-1174 BEARING, NEEDLE, TA2230Z
    BEARING, NEEDLE, TA2230Z
  • 92046A
    92046-1240 BEARING, NEEDLE, NTBR22356E01
    BEARING, NEEDLE, NTBR22356E01
  • 92093
    92093-1434 SEAL, SDO29X35X4.5
    SEAL, SDO29X35X4.5
  • 92093A
    92093-1435 SEAL, SDO22X29X5
    SEAL, SDO22X29X5
  • 92143
    92143-1676 COLLAR
    COLLAR
  • 92143A
    92143-1867 COLLAR, 6.5X14X24
    COLLAR, 6.5X14X24
  • 92152
    92152-1137 COLLAR, 17.1X29X7.5
    COLLAR, 17.1X29X7.5
  • 92153
    92153-0620 BOLT, 8X56
    BOLT, 8X56
  • 92172
    92172-0119 SCREW, 5X8
    SCREW, 5X8
