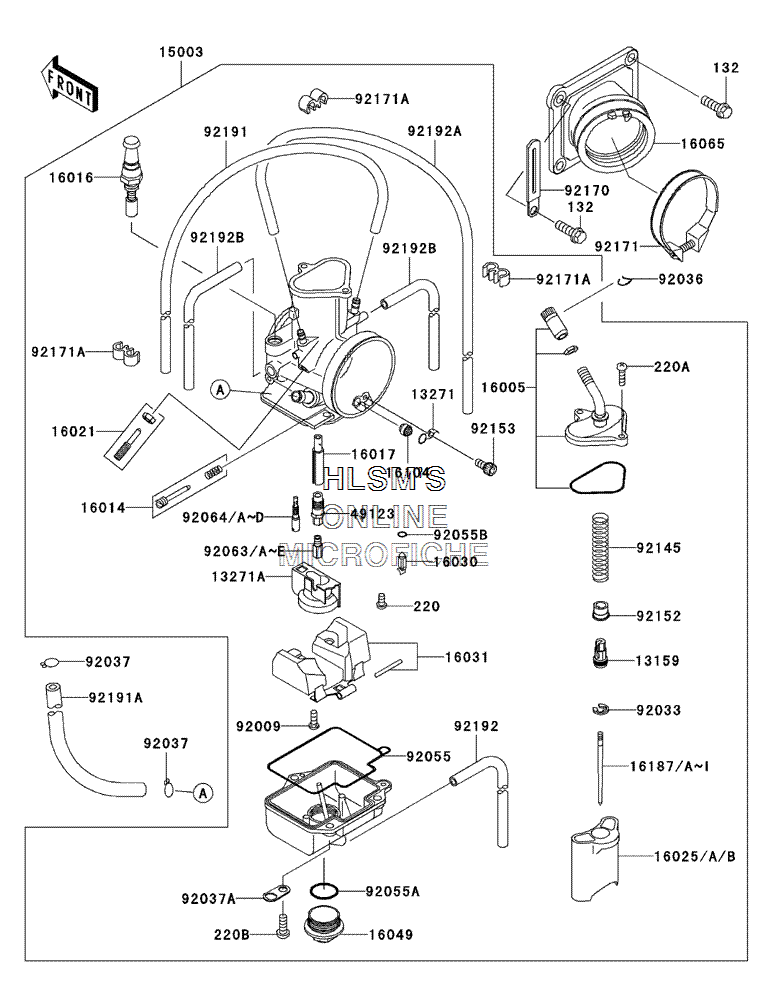

CARBURETOR для Kawasaki KX 125 - 2004 года выпуска

  • №
    Артикул
    Название
  • 13159
    13159-1067 CONNECTOR, THROTTLE CABLE
    CONNECTOR, THROTTLE CABLE
  • 13271
    13271-0020 PLATE
    PLATE
  • 13271A
    13271-0021 PLATE
    PLATE
  • 15003
    15003-0010 CARBURETOR, ASSY.
    CARBURETOR, ASSY.
  • 16005
    16005-0002 TOP, CHAMBER
    TOP, CHAMBER
  • 16014
    16014-1115 SCREW, PILOT AIR
    SCREW, PILOT AIR
  • 16016
    16016-0001 PLUNGER
    PLUNGER
  • 16017
    16017-0001 JET, NEEDLE, S, 9
    JET, NEEDLE, S, 9
  • 16021
    16021-1237 SCREW, THROTTLE STOP
    SCREW, THROTTLE STOP
  • 16025
    16025-0002 VALVE, THROTTLE, CA5.5 (OPT)
    VALVE, THROTTLE, CA5.5 (OPT)
  • 16025A
    16025-0003 VALVE, THROTTLE, CA 5.75
    VALVE, THROTTLE, CA 5.75
  • 16025B
    16025-0004 VALVE, THROTTLE, CA6.0 (OPT)
    VALVE, THROTTLE, CA6.0 (OPT)
  • 16030
    16030-1096 VALVE, FLOAT
    VALVE, FLOAT
  • 16031
    16031-0003 FLOAT, ASSY.
    FLOAT, ASSY.
  • 16049
    16049-0001 COVER, MAIN JET
    COVER, MAIN JET
  • 16065
    16065-0010 HOLDER, CARBURETOR
    HOLDER, CARBURETOR
  • 16104
    16104-0001 FILTER, COMP
    FILTER, COMP
  • 16187
    16187-0001 NEEDLE, JET, 6CHJ10, 80 (OPT)
    NEEDLE, JET, 6CHJ10, 80 (OPT)
  • 16187A
    16187-0002 NEEDLE, JET, 6CHJ10, 81 (OPT)
    NEEDLE, JET, 6CHJ10, 81 (OPT)
  • 16187B
    16187-0003 NEEDLE, JET, 6CHJ10, 82
    NEEDLE, JET, 6CHJ10, 82
  • 16187C
    16187-0004 NEEDLE, JET, 6CHJ10, 83 (OPT)
    NEEDLE, JET, 6CHJ10, 83 (OPT)
  • 16187D
    16187-0005 NEEDLE, JET, 6CHJ10, 84 (OPT)
    NEEDLE, JET, 6CHJ10, 84 (OPT)
  • 16187E
    16187-0006 NEEDLE, JET, 6CHJ11, 80 (OPT)
    NEEDLE, JET, 6CHJ11, 80 (OPT)
  • 16187F
    16187-0007 NEEDLE, JET, 6CHJ11, 81 (OPT)
    NEEDLE, JET, 6CHJ11, 81 (OPT)
  • 16187G
    16187-0008 NEEDLE, JET, 6CHJ11, 82 (OPT)
    NEEDLE, JET, 6CHJ11, 82 (OPT)
  • 16187H
    16187-0009 NEEDLE, JET, 6CHJ11, 83 (OPT)
    NEEDLE, JET, 6CHJ11, 83 (OPT)
  • 16187I
    16187-0010 NEEDLE, JET, 6CHJ11, 84 (OPT)
    NEEDLE, JET, 6CHJ11, 84 (OPT)
  • 49123
    49123-0001 HOLDER, MAIN JET
    HOLDER, MAIN JET
  • 92009
    92009-1853 SCREW, FLOAT VALVE
    SCREW, FLOAT VALVE
  • 92033
    92033-1299 RING, SNAP
    RING, SNAP
  • 132
    132G0618 BOLT, FLANGED, SMALL
    BOLT, FLANGED, SMALL
  • 220
    220D0408 SCREW, PAN, CROS
    SCREW, PAN, CROS
  • 220A
    220D0414 SCREW, PAN, CROS
    SCREW, PAN, CROS
  • 220B
    220D0514 SCREW, PAN, CROS, 5X14
    SCREW, PAN, CROS, 5X14
  • 92036
    92036-018 RING, SNAP
    RING, SNAP
  • 92037
    92037-147 CLAMP, TUBE
    CLAMP, TUBE
  • 92037A
    92037-1474 CLAMP
    CLAMP
  • 92055
    92055-0001 O-RING, FLOAT CHAMBER
    O-RING, FLOAT CHAMBER
  • 92055A
    92055-1076 O-RING
    O-RING
  • 92055B
    92055-1105 O-RING
    O-RING
  • 92063
    92063-0001 JET, MAIN, MJ#470 (OPT)
    JET, MAIN, MJ#470 (OPT)
  • 92063A
    92063-035 JET, MAIN, #400 (OPT)
    JET, MAIN, #400 (OPT)
  • 92063B
    92063-1472 JET, MAIN, #410 (OPT)
    JET, MAIN, #410 (OPT)
  • 92063C
    92063-1473 JET, MAIN, #420
    JET, MAIN, #420
  • 92063D
    92063-1474 JET, MAIN, #430 (OPT)
    JET, MAIN, #430 (OPT)
  • 92063E
    92063-1475 JET, MAIN, #440 (OPT)
    JET, MAIN, #440 (OPT)
  • 92064
    92064-1214 JET, PILOT, #35 (OPT)
    JET, PILOT, #35 (OPT)
  • 92064A
    92064-1215 JET, PILOT, #37.5 (OPT)
    JET, PILOT, #37.5 (OPT)
  • 92064B
    92064-1216 JET, PILOT, #40
    JET, PILOT, #40
  • 92064C
    92064-1217 JET, PILOT, #42.5 (OPT)
    JET, PILOT, #42.5 (OPT)
  • 92064D
    92064-1218 JET, PILOT, #45 (OPT)
    JET, PILOT, #45 (OPT)
  • 92145
    92145-1401 SPRING, THROTTLE VALVE
    SPRING, THROTTLE VALVE
  • 92152
    92152-1305 COLLAR, THROTTLE VALVE
    COLLAR, THROTTLE VALVE
  • 92153
    92153-0025 BOLT
    BOLT
  • 92170
    92170-1514 CLAMP
    CLAMP
  • 92171
    92171-1105 CLAMP
    CLAMP
  • 92171A
    92171-1355 CLAMP
    CLAMP
  • 92191
    92191-0002 TUBE, 3.5X6.5X650
    TUBE, 3.5X6.5X650
  • 92191A
    92191-1723 TUBE, FUEL PIPE
    TUBE, FUEL PIPE
  • 92192
    92192-0086 TUBE, 3X5X360
    TUBE, 3X5X360
  • 92192A
    92192-0087 TUBE, 3.5X6.5X590
    TUBE, 3.5X6.5X590
  • 92192B
    92192-0088 TUBE, 3.5X6.5X430
    TUBE, 3.5X6.5X430
