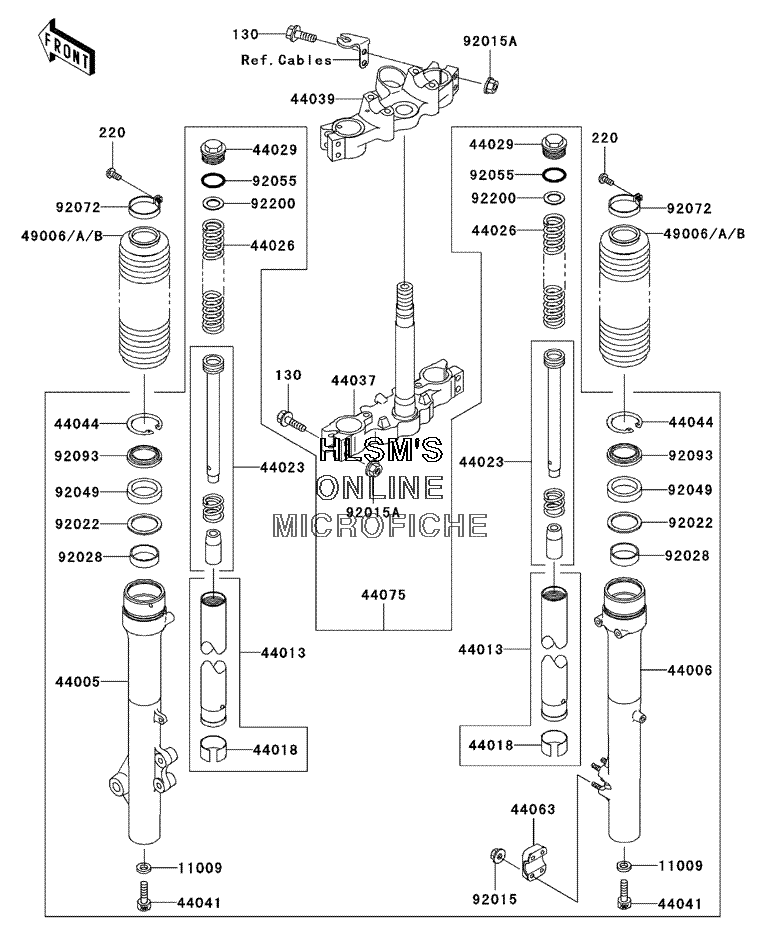

FRONT FORK для Kawasaki Super Sherpa - 2003 года выпуска`
-
№АртикулНазвание
-
130130G0850 BOLT, FLANGED, 8X50BOLT, FLANGED, 8X50
-
220220B0416 SCREW, PAN, CROSSCREW, PAN, CROS
-
1100911009-1325 GASKET, PIPE, COMP, SUSPGASKET, PIPE, COMP, SUSP
-
4400544005-1403 PIPE, LEFT FORK OUTERPIPE, LEFT FORK OUTER
-
4400644006-1401 PIPE, RIGHT FORK OUTERPIPE, RIGHT FORK OUTER
-
4401344013-1468 PIPE, FORK INNERPIPE, FORK INNER
-
4401844018-1058 PISTON, FORKPISTON, FORK
-
4402344023-1141 CYLINDER, SET, FORKCYLINDER, SET, FORK
-
4402644026-1699 SPRING, FRONT FORKSPRING, FRONT FORK
-
4402944029-1160 SEAT, FORK SPRINGSEAT, FORK SPRING
-
4403744037-1357 HOLDER, FORK UNDERHOLDER, FORK UNDER
-
4403944039-1272 HOLDER, FORK UPPERHOLDER, FORK UPPER
-
4404144041-040 BOLT, SOCKET, FORK CYLINDERBOLT, SOCKET, FORK CYLINDER
-
4404444044-015 RING, SNAPRING, SNAP
-
4406344063-1056 HOLDER, FRONT AXLEHOLDER, FRONT AXLE
-
4407544075-1102 DAMPER, SET, FORKDAMPER, SET, FORK
-
4900649006-1312-BD BOOT, FORK (BLACK)BOOT, FORK (BLACK)
-
9201592015-1078 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
92015A92015-1485 NUT, FLANGED, 8MMNUT, FLANGED, 8MM
-
9202292022-1275 WASHER, FRONT FORKWASHER, FRONT FORK
-
9202892028-1656 BUSHINGBUSHING
-
9204992049-1470 SEAL, OIL, FORK OUTER TUBESEAL, OIL, FORK OUTER TUBE
-
9205592055-1051 O-RING, FORK TOP CAPO-RING, FORK TOP CAP
-
9207292072-1347 BAND, BOOTBAND, BOOT
-
9209392093-1439 SEAL, FORK OUTER TUBESEAL, FORK OUTER TUBE
-
9220092200-1259 WASHERWASHER
