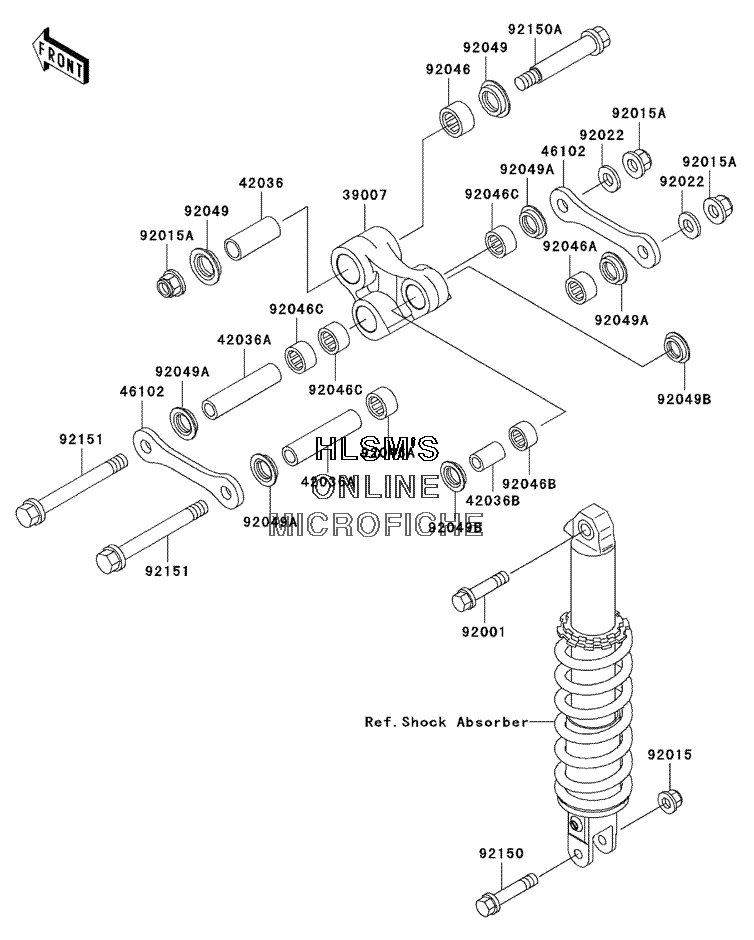

SUSPENSION - REAR для Kawasaki Super Sherpa - 2003 года выпуска

  • №
    Артикул
    Название
  • 39007
    39007-1265 ARM, SUSP, UNI TRAK
    ARM, SUSP, UNI TRAK
  • 42036
    42036-1204 SLEEVE, 15X20X47.5
    SLEEVE, 15X20X47.5
  • 42036A
    42036-1336 SLEEVE, 12.1X18X77.5
    SLEEVE, 12.1X18X77.5
  • 42036B
    42036-1337 SLEEVE, 10.1X16X26.5
    SLEEVE, 10.1X16X26.5
  • 46102
    46102-1428 ROD, SUSPENSION
    ROD, SUSPENSION
  • 92001
    92001-1499 BOLT, FLANGED, 10X44
    BOLT, FLANGED, 10X44
  • 92015
    92015-1335 NUT, FLANGED, 10MM
    NUT, FLANGED, 10MM
  • 92015A
    92015-1433 NUT, FLANGED, 12MM
    NUT, FLANGED, 12MM
  • 92022
    92022-1196 WASHER, 12.4X28X4.5
    WASHER, 12.4X28X4.5
  • 92046
    92046-1110 BEARING, NEEDLE, BM202726
    BEARING, NEEDLE, BM202726
  • 92046A
    92046-1144 BEARING, NEEDLE, 18BM2416
    BEARING, NEEDLE, 18BM2416
  • 92046B
    92046-1192 BEARING, NEEDLE, 16BM2212
    BEARING, NEEDLE, 16BM2212
  • 92046C
    92046-1238 BEARING, NEEDLE, 7E, HVS18X24X16
    BEARING, NEEDLE, 7E, HVS18X24X16
  • 92049
    92049-1109 SEAL, OIL, ARM, CENTER
    SEAL, OIL, ARM, CENTER
  • 92049A
    92049-1328 SEAL, OIL
    SEAL, OIL
  • 92049B
    92049-1466 SEAL, OIL, SD03 16 22 5.7
    SEAL, OIL, SD03 16 22 5.7
  • 92150
    92150-1125 BOLT, FLANGED, 10X50
    BOLT, FLANGED, 10X50
  • 92150A
    92150-1213 BOLT, ROD, 12X85
    BOLT, ROD, 12X85
  • 92151
    92151-1169 BOLT, FLANGED, 12X110
    BOLT, FLANGED, 12X110
