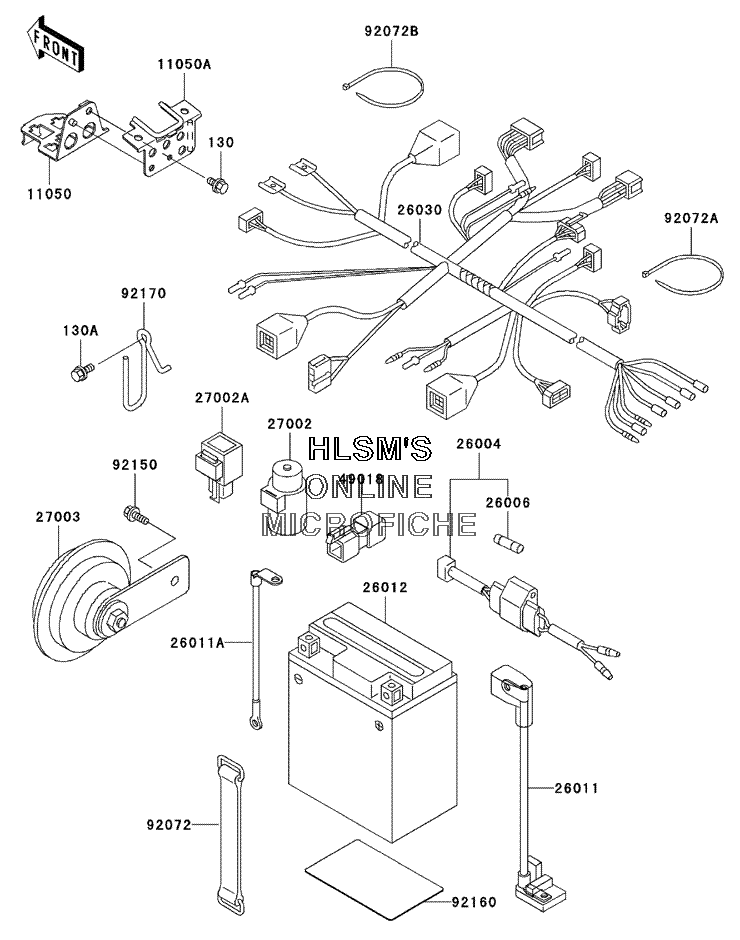

ELECTRICAL - CHASSIS для Kawasaki Super Sherpa - 2003 года выпуска`
-
№АртикулНазвание
-
130130J0610 BOLT, FLANGEDBOLT, FLANGED
-
130A130J0612 BOLT, FLANGEDBOLT, FLANGED
-
1105011050-1443 BRACKET, HARNESS COUPLERBRACKET, HARNESS COUPLER
-
11050A11050-1444 BRACKET, HARNESS COUPLERBRACKET, HARNESS COUPLER
-
2600426004-1108 FUSE, ASSY.FUSE, ASSY.
-
2600626006-1002 FUSE, 10A, L=30FUSE, 10A, L=30
-
2601126011-1659 WIRE, LEAD, BATTERY (+)WIRE, LEAD, BATTERY (+)
-
26011A26011-1660 WIRE, LEAD, BATTERY (-)WIRE, LEAD, BATTERY (-)
-
2601226012-1321 BATTERY, YTX7L, BS, 12V 6AHBATTERY, YTX7L, BS, 12V 6AH
-
2603026030-1661 HARNESS, MAINHARNESS, MAIN
-
2700227002-1051 RELAY, ASSY.RELAY, ASSY.
-
27002A27002-1101 RELAY, ASSY., TURN SIGNALRELAY, ASSY., TURN SIGNAL
-
2700327003-1366 HORNHORN
-
4901849018-1052 DIODEDIODE
-
9207292072-1188 BAND, L=150BAND, L=150
-
92072A92072-1195 BAND, L=202BAND, L=202
-
92072B92072-1293 BAND, L=140BAND, L=140
-
9215092150-1340 BOLT, 6X14BOLT, 6X14
-
9216092160-1880 DAMPER, BATTERYDAMPER, BATTERY
-
9217092170-1787 CLAMP, HARNESSCLAMP, HARNESS
