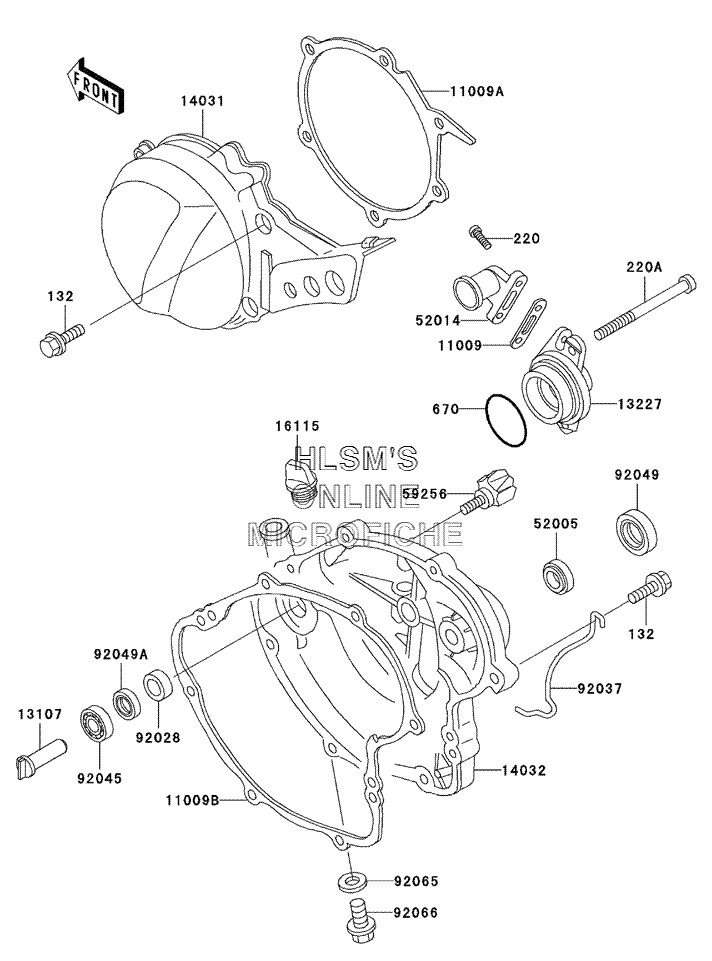

ENGINE COVER для Kawasaki KX 60 - 2003 года выпуска

  • №
    Артикул
    Название
  • 132
    132G0625 BOLT, FLANGED, SMALL
    BOLT, FLANGED, SMALL
  • 220
    220B0520 SCREW, PAN, CROS
    SCREW, PAN, CROS
  • 220A
    220B0675 SCREW, PAN, CROS, 6X75
    SCREW, PAN, CROS, 6X75
  • 670
    670B3039 O-RING, 39MM
    O-RING, 39MM
  • 11009
    11009-1952 GASKET, ELBOW
    GASKET, ELBOW
  • 11009A
    11009-1974 GASKET, GENERATOR COVER
    GASKET, GENERATOR COVER
  • 11009B
    11009-1976 GASKET, CLUTCH COVER
    GASKET, CLUTCH COVER
  • 13107
    13107-1123 SHAFT, WATER PUMP
    SHAFT, WATER PUMP
  • 13227
    13227-1069 HOUSING, WATER PUMP
    HOUSING, WATER PUMP
  • 14031
    14031-1215 COVER, GENERATOR
    COVER, GENERATOR
  • 14032
    14032-1246 COVER, CLUTCH
    COVER, CLUTCH
  • 16115
    16115-018 CAP, OIL FILLER
    CAP, OIL FILLER
  • 52005
    52005-1055 GAUGE, OIL LEVEL
    GAUGE, OIL LEVEL
  • 52014
    52014-1067 ELBOW
    ELBOW
  • 59256
    59256-1052 IMPELLER, WATER PUMP
    IMPELLER, WATER PUMP
  • 92028
    92028-1317 BUSHING
    BUSHING
  • 92037
    92037-1236 CLAMP, TUBE
    CLAMP, TUBE
  • 92045
    92045-1305 BEARING, BALL, 608MC3
    BEARING, BALL, 608MC3
  • 92049
    92049-002 SEAL, OIL, SB16244
    SEAL, OIL, SB16244
  • 92049A
    92049-1366 SEAL, OIL, MHSD8X18X10J, 1
    SEAL, OIL, MHSD8X18X10J, 1
  • 92065
    92065-058 GASKET, 10.5X16X1
    GASKET, 10.5X16X1
  • 92066
    92066-1241 PLUG, DRAIN
    PLUG, DRAIN
