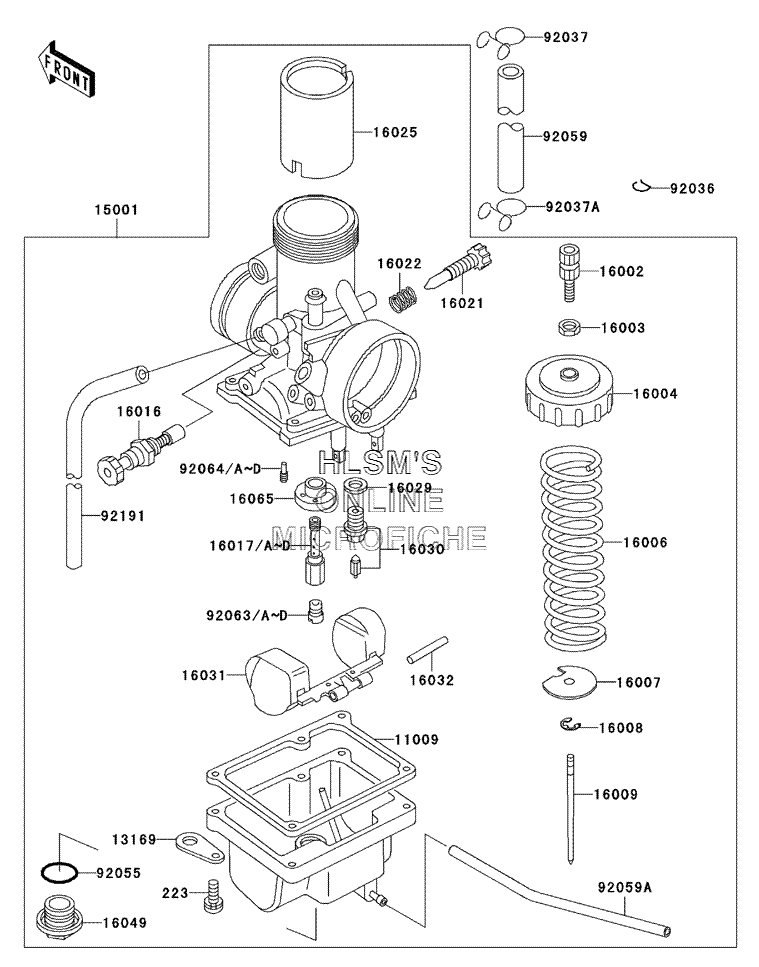

CARBURETOR для Kawasaki KX 60 - 2003 года выпуска

  • №
    Артикул
    Название
  • 11009
    11009-1147 GASKET, FLOAT CHAMBER
    GASKET, FLOAT CHAMBER
  • 13169
    13169-1951 PLATE, TUBE
    PLATE, TUBE
  • 15001
    15001-1384 CARBURETOR, ASSY
    CARBURETOR, ASSY
  • 16002
    16002-011 ADJUSTER, CABLE
    ADJUSTER, CABLE
  • 16003
    16003-006 NUT, ADJUST LOCK
    NUT, ADJUST LOCK
  • 16004
    16004-025 CAP, CHAMBER
    CAP, CHAMBER
  • 16006
    16006-023 SPRING, THROTTLE VALVE
    SPRING, THROTTLE VALVE
  • 16007
    16007-023 SEAT, SPRING, THROTTLE VALVE
    SEAT, SPRING, THROTTLE VALVE
  • 16008
    16008-010 CLAMP, E, TYPE
    CLAMP, E, TYPE
  • 16009
    16009-1220 NEEDLE, JET, 5I14
    NEEDLE, JET, 5I14
  • 16016
    16016-1052 PLUNGER, STARTER
    PLUNGER, STARTER
  • 16017
    16017-1215 JET, NEEDLE, N, 8
    JET, NEEDLE, N, 8
  • 16017A
    16017-1216 JET, NEEDLE, O, 0 (OPT)
    JET, NEEDLE, O, 0 (OPT)
  • 16017B
    16017-1217 JET, NEEDLE, O, 2 (OPT)
    JET, NEEDLE, O, 2 (OPT)
  • 16017C
    16017-1259 JET, NEEDLE, N, 6 (OPT)
    JET, NEEDLE, N, 6 (OPT)
  • 16017D
    16017-1268 JET, NEEDLE, N, 4 (OPT)
    JET, NEEDLE, N, 4 (OPT)
  • 16021
    16021-1108 SCREW, THROTTLE STOP
    SCREW, THROTTLE STOP
  • 16022
    16022-005 SPRING, THROTTLE STOP SCREW
    SPRING, THROTTLE STOP SCREW
  • 16025
    16025-1107 VALVE, THROTTLE, CA2.0
    VALVE, THROTTLE, CA2.0
  • 16029
    16029-004 GASKET, FLOAT VALVE SEAT
    GASKET, FLOAT VALVE SEAT
  • 16030
    16030-005 VALVE, FLOAT, 2.5
    VALVE, FLOAT, 2.5
  • 16031
    16031-1005 FLOAT
    FLOAT
  • 16032
    16032-003 PIN, FLOAT
    PIN, FLOAT
  • 16049
    16049-1001 COVER, MAIN JET
    COVER, MAIN JET
  • 16065
    16065-1020 HOLDER, JET NEEDLE
    HOLDER, JET NEEDLE
  • 92036
    92036-018 RING, SNAP
    RING, SNAP
  • 92037
    92037-147 CLAMP, TUBE
    CLAMP, TUBE
  • 92037A
    92037-1712 CLAMP
    CLAMP
  • 92055
    92055-1061 O-RING, MAIN JET COVER
    O-RING, MAIN JET COVER
  • 92059
    92059-1393 TUBE, 5.3X10.5X130
    TUBE, 5.3X10.5X130
  • 92059A
    92059-1395 TUBE, 3X5X160
    TUBE, 3X5X160
  • 92063
    92063-020 JET, MAIN, #180 (OPT)
    JET, MAIN, #180 (OPT)
  • 92063A
    92063-021 JET, MAIN, #190 (OPT)
    JET, MAIN, #190 (OPT)
  • 92063B
    92063-022 JET, MAIN, #200
    JET, MAIN, #200
  • 92063C
    92063-023 JET, MAIN, #210 (OPT)
    JET, MAIN, #210 (OPT)
  • 223
    223B0416 SCREW, PAN, WS, CROS
    SCREW, PAN, WS, CROS
  • 92063D
    92063-024 JET, MAIN, #220 (OPT)
    JET, MAIN, #220 (OPT)
  • 92064
    92064-1023 JET, PILOT, #35 (OPT)
    JET, PILOT, #35 (OPT)
  • 92064A
    92064-1030 JET, PILOT, #30
    JET, PILOT, #30
  • 92064B
    92064-1038 JET, PILOT, #25 (OPT)
    JET, PILOT, #25 (OPT)
  • 92064C
    92064-1104 JET, PILOT, #40 (OPT)
    JET, PILOT, #40 (OPT)
  • 92064D
    92064-1110 JET, PILOT, #20 (OPT)
    JET, PILOT, #20 (OPT)
  • 92191
    92191-2065 TUBE, 3X5X270
    TUBE, 3X5X270
