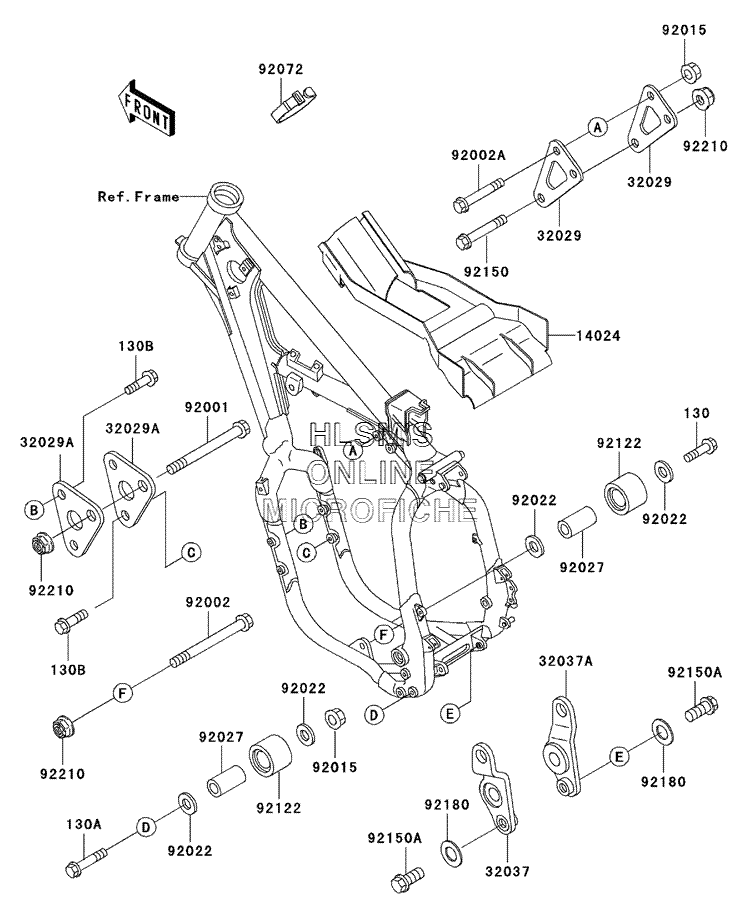

FRAME FITTING(S) для Kawasaki KX 500 - 2003 года выпуска

  • №
    Артикул
    Название
  • 130
    130G0840 BOLT, FLANGED, 8X40
    BOLT, FLANGED, 8X40
  • 130A
    130G0870 BOLT, FLANGED, 8X70
    BOLT, FLANGED, 8X70
  • 130B
    130P0825 BOLT, FLANGED
    BOLT, FLANGED
  • 14024
    14024-1561 COVER, AIR FILTER
    COVER, AIR FILTER
  • 32029
    32029-1639 BRACKET, ENGINE
    BRACKET, ENGINE
  • 32029A
    32029-1652 BRACKET, ENGINE
    BRACKET, ENGINE
  • 32037
    32037-1532 BRACKET, SHOCKABSORBER (LEFT)
    BRACKET, SHOCKABSORBER (LEFT)
  • 32037A
    32037-1533 BRACKET, SHOCKABSORBER (RIGHT)
    BRACKET, SHOCKABSORBER (RIGHT)
  • 92001
    92001-1701 BOLT, FLANGED, 10X92
    BOLT, FLANGED, 10X92
  • 92002
    92002-1491 BOLT, FLANGED, 10X105
    BOLT, FLANGED, 10X105
  • 92002A
    92002-1850 BOLT, FLANGED, 8X47
    BOLT, FLANGED, 8X47
  • 92015
    92015-1143 NUT, 8MM
    NUT, 8MM
  • 92022
    92022-1629 WASHER, 8.5X22X1.5
    WASHER, 8.5X22X1.5
  • 92027
    92027-1670 COLLAR, CHAIN ROLLER
    COLLAR, CHAIN ROLLER
  • 92072
    92072-032 BAND, L=218
    BAND, L=218
  • 92122
    92122-1153 ROLLER, CHAIN GUIDE
    ROLLER, CHAIN GUIDE
  • 92150
    92150-1125 BOLT, FLANGED, 10X50
    BOLT, FLANGED, 10X50
  • 92150A
    92150-1359 BOLT, FLANGED, 12X27
    BOLT, FLANGED, 12X27
  • 92180
    92180-1060 SHIM, 12.5X24X0.5
    SHIM, 12.5X24X0.5
  • 92210
    92210-1080 NUT, LOCK, FLANGED, 10MM
    NUT, LOCK, FLANGED, 10MM
