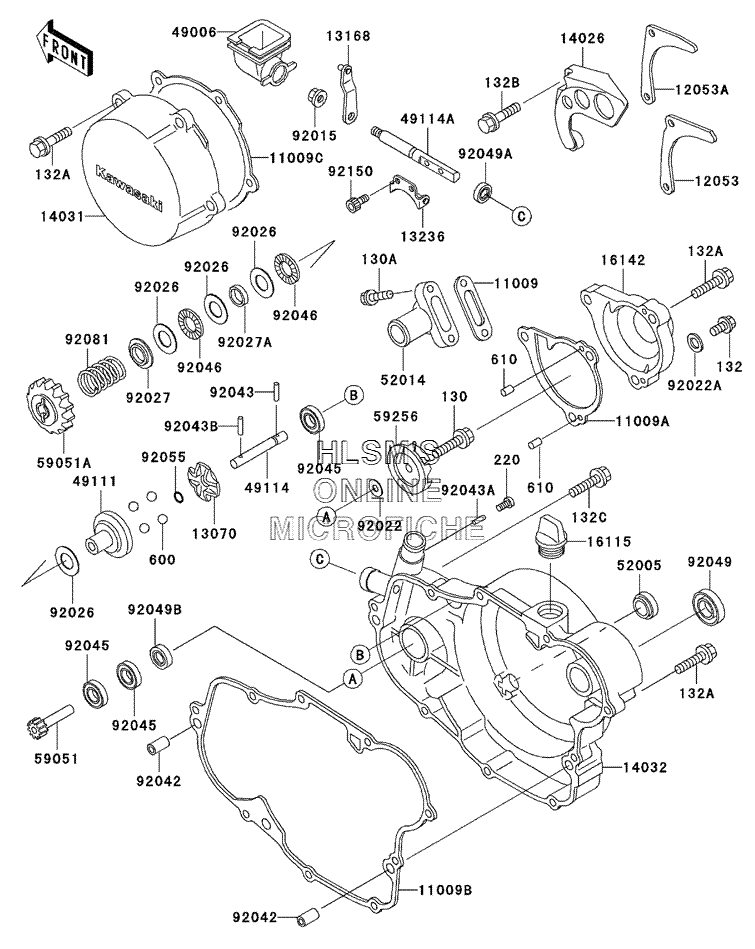

ENGINE COVER для Kawasaki KX 500 - 2003 года выпуска`
-
№АртикулНазвание
-
1100911009-1952 GASKET, ELBOWGASKET, ELBOW
-
11009A11009-1962 GASKET, WATER PUMP COVERGASKET, WATER PUMP COVER
-
11009B11009-1963 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
11009C11009-1964 GASKET, GENERATOR COVERGASKET, GENERATOR COVER
-
1205312053-1172 GUIDE, CHAINGUIDE, CHAIN
-
12053A12053-1206 GUIDE, CHAINGUIDE, CHAIN
-
1307013070-1122 GUIDEGUIDE
-
1316813168-1497 LEVER, GOVERNORLEVER, GOVERNOR
-
1323613236-1250 LEVER, COMP, GOVERNORLEVER, COMP, GOVERNOR
-
1402614026-1174 COVER, CHAINCOVER, CHAIN
-
1403114031-1220 COVER, GENERATORCOVER, GENERATOR
-
1403214032-1245 COVER, CLUTCHCOVER, CLUTCH
-
1611516115-018 CAP, OIL FILLERCAP, OIL FILLER
-
1614216142-1086 COVER, PUMPCOVER, PUMP
-
4900649006-1179 BOOTBOOT
-
4911149111-1052 HOLDER, GOVERNOR WEIGHTHOLDER, GOVERNOR WEIGHT
-
4911449114-1058 SHAFT, GOVERNORSHAFT, GOVERNOR
-
49114A49114-1065 SHAFT, GOVERNORSHAFT, GOVERNOR
-
5200552005-1055 GAUGE, OIL LEVELGAUGE, OIL LEVEL
-
5201452014-1067 ELBOWELBOW
-
5905159051-1129 GEAR, SPUR, WATER PUMP (11 TEETH)GEAR, SPUR, WATER PUMP (11 TEETH)
-
59051A59051-1213 GEAR, SPUR, GOVERNORGEAR, SPUR, GOVERNOR
-
5925659256-1065 IMPELLERIMPELLER
-
9201592015-1193 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
9202292022-1380 WASHER, 5.2X13X1WASHER, 5.2X13X1
-
92022A92022-304 WASHER, 6.2X11X1WASHER, 6.2X11X1
-
9202692026-1238 SPACER, 15X28X1SPACER, 15X28X1
-
9202792027-1838 COLLARCOLLAR
-
92027A92027-1839 COLLAR, 15.2X17X4COLLAR, 15.2X17X4
-
9204292042-007 PIN, DOWEL, 6.3X8X14PIN, DOWEL, 6.3X8X14
-
9204392043-1256 PIN, 3X12.8PIN, 3X12.8
-
92043A92043-1293 PIN, 2X9.8PIN, 2X9.8
-
92043B92043-1319 PIN, 3X19.8PIN, 3X19.8
-
9204592045-1305 BEARING, BALL, 608MC3BEARING, BALL, 608MC3
-
9204692046-1252 BEARING, NEEDLEBEARING, NEEDLE
-
9204992049-012 SEAL, OIL, SB20285SEAL, OIL, SB20285
-
92049A92049-1207 SEAL, OIL, SDO8144SEAL, OIL, SDO8144
-
92049B92049-1366 SEAL, OIL, MHSD8X18X10J, 1SEAL, OIL, MHSD8X18X10J, 1
-
9205592055-1343 O-RING, 5.5X1.5O-RING, 5.5X1.5
-
9208192081-1934 SPRING, GOVERNORSPRING, GOVERNOR
-
130130P0514 BOLT, FLANGEDBOLT, FLANGED
-
130A130P0520 BOLT, FLANGEDBOLT, FLANGED
-
132132G0608 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132A132G0625 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132B132G0630 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132C132G0655 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
220220B0306 SCREW, PAN, CROSSCREW, PAN, CROS
-
600600A1000 BALL, STEEL, 5/16"BALL, STEEL, 5/16"
-
610610A0408 ROLLER, 4X8ROLLER, 4X8
-
9215092150-1888 BOLT, SOCKET, 4X8BOLT, SOCKET, 4X8
