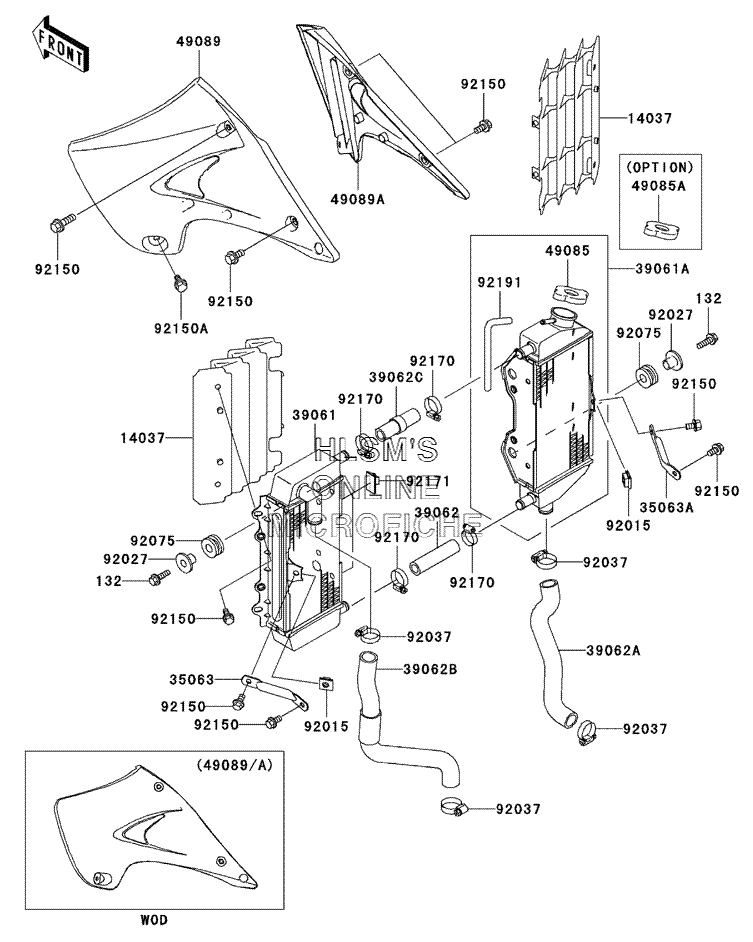

RADIATOR для Kawasaki KX 125 - 2003 года выпуска

  • №
    Артикул
    Название
  • 132
    132G0620 BOLT, FLANGED, SMALL
    BOLT, FLANGED, SMALL
  • 14037
    14037-1310-RZ SCREEN
    SCREEN
  • 35063
    35063-1226 STAY (LEFT)
    STAY (LEFT)
  • 35063A
    35063-1227 STAY (RIGHT)
    STAY (RIGHT)
  • 39061
    39061-1309 RADIATOR, ASSY (LEFT)
    RADIATOR, ASSY (LEFT)
  • 39061A
    39061-1311 RADIATOR, ASSY (RIGHT)
    RADIATOR, ASSY (RIGHT)
  • 39062
    39062-1898 HOSE, COOLING, RADIATOR L, R LOW
    HOSE, COOLING, RADIATOR L, R LOW
  • 39062A
    39062-1899 HOSE, COOLING, RADIATOR R PUMP
    HOSE, COOLING, RADIATOR R PUMP
  • 39062B
    39062-1900 HOSE, COOLING, HEAD RADIATOR L
    HOSE, COOLING, HEAD RADIATOR L
  • 39062C
    39062-1925 HOSE, COOLING, RADIAOR R
    HOSE, COOLING, RADIAOR R
  • 49085
    49085-1070 CAP, ASSY, PRESSURE, P1.1
    CAP, ASSY, PRESSURE, P1.1
  • 49085A
    49085-1073 CAP, ASSY, PRESSURE, P1.6 (OPT)
    CAP, ASSY, PRESSURE, P1.6 (OPT)
  • 49089
    49089-1150-6W SHROUD, ENGINE (LEFT) (L.GREEN)
    SHROUD, ENGINE (LEFT) (L.GREEN)
  • 49089A
    49089-1151-6W SHROUD, ENGINE (RIGHT) (L.GREEN)
    SHROUD, ENGINE (RIGHT) (L.GREEN)
  • 92015
    92015-1487 NUT
    NUT
  • 92027
    92027-194 COLLAR, L=11.1
    COLLAR, L=11.1
  • 92037
    92037-1589 CLAMP, COOLING HOSE
    CLAMP, COOLING HOSE
  • 92075
    92075-209 DAMPER
    DAMPER
  • 92150
    92150-1435 BOLT, 6X12
    BOLT, 6X12
  • 92150A
    92150-1801 BOLT, 6X20
    BOLT, 6X20
  • 92170
    92170-1283 CLAMP
    CLAMP
  • 92171
    92171-0012 CLAMP, 10
    CLAMP, 10
  • 92191
    92191-1211 TUBE, 6X9X700
    TUBE, 6X9X700
