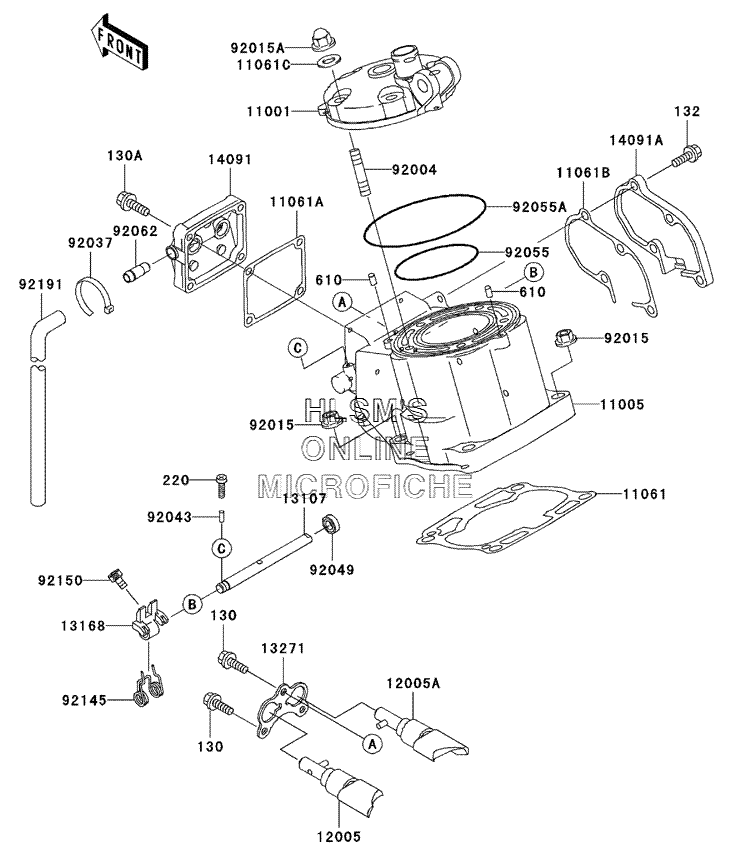

CYLINDER HEAD W/CYLINDER для Kawasaki KX 125 - 2003 года выпуска`
-
№АртикулНазвание
-
130130G0512 BOLT, FLANGEDBOLT, FLANGED
-
130A130G0522 BOLT, FLANGED, CENTER COVERBOLT, FLANGED, CENTER COVER
-
132132G0616 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
220220B0406 SCREW, PAN, CROS, 4X6SCREW, PAN, CROS, 4X6
-
610610A0408 ROLLER, 4X8ROLLER, 4X8
-
1100111001-1573 HEAD, CYLINDERHEAD, CYLINDER
-
1100511005-1978 CYLINDER, ENGINE, BASECYLINDER, ENGINE, BASE
-
1106111061-1130 GASKET, T 0.37GASKET, T 0.37
-
11061A11061-1131 GASKET, CENTER COVERGASKET, CENTER COVER
-
11061B11061-1132 GASKET, RIGHT COVERGASKET, RIGHT COVER
-
11061C11061-1133 GASKET, HEADGASKET, HEAD
-
1200512005-1340 VALVE, EXHAUST (LEFT)VALVE, EXHAUST (LEFT)
-
12005A12005-1341 VALVE, EXHAUST (RIGHT)VALVE, EXHAUST (RIGHT)
-
1310713107-1500 SHAFTSHAFT
-
1316813168-1747 LEVERLEVER
-
1327113271-1823 PLATEPLATE
-
1409114091-1481 COVER, CENTERCOVER, CENTER
-
14091A14091-1482 COVER, RIGHTCOVER, RIGHT
-
9200492004-1110 STUD, 8X28STUD, 8X28
-
9201592015-1143 NUT, 8MMNUT, 8MM
-
92015A92015-1151 NUT, CAP, 8MMNUT, CAP, 8MM
-
9203792037-1173 CLAMPCLAMP
-
9204392043-1586 PINPIN
-
9204992049-1238 SEAL, OIL, SD088144SEAL, OIL, SD088144
-
9205592055-1678 O-RING, INO-RING, IN
-
92055A92055-1679 O-RING, OUTO-RING, OUT
-
9206292062-3711 NOZZLENOZZLE
-
9214592145-1491 SPRINGSPRING
-
9215092150-1888 BOLT, SOCKET, 4X8BOLT, SOCKET, 4X8
-
9219192191-1692 TUBE, 5.8X10.8X225TUBE, 5.8X10.8X225
